Specification Sheet

Note:
Pipe Must be Held Rigid Under Sink
by Connection Fittings, Brace, Etc.
Rough-In Requirement:
(2) Ø1 1/4" [32mm]
Hole in Center of 45°
Mounting Surface to Slip
1/2" Pipe Through
1/2" NPT Vacuum Breaker Unit, 4" c/c
2 Saddleback Cove / P.O. Box 1088
Contractor_______________________________________
__________________________Date_________
Product Specifications:
Scale:
Model No.
Item No.
T&S BRASS AND BRONZE WORKS, INC.
07/23/16
1
of
1
Model Specified_____________________ Quantity______
JRM
Customer/Wholesaler______________________________
B-0455-04
Sheet:
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: [phone] • www.tsbrass.com
JHB
JBC
Travelers Rest, SC 29690
Date: 1:3
Architect/Engineer_________________________________
Checked:
Drawn: Approved:
This Space for Architect/Engineer Approval
Job Name
Product Compliance:
ASME A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ASSE 1001

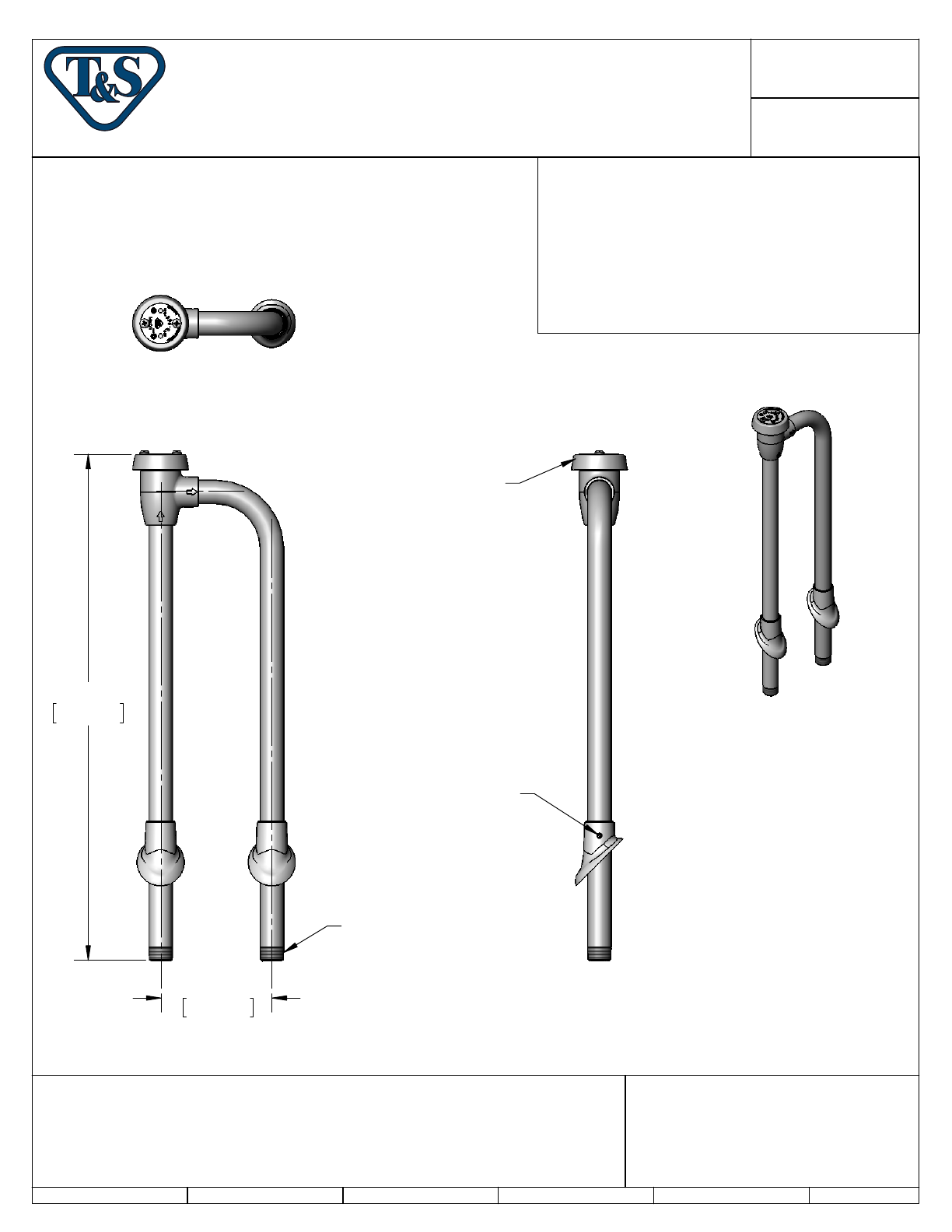

1/2" NPT
Male Thread
TYP
459mm
18 1/16"
4"
101mm
Set Screw
B-0969
1/2" NPT
Vacuum
Breaker
