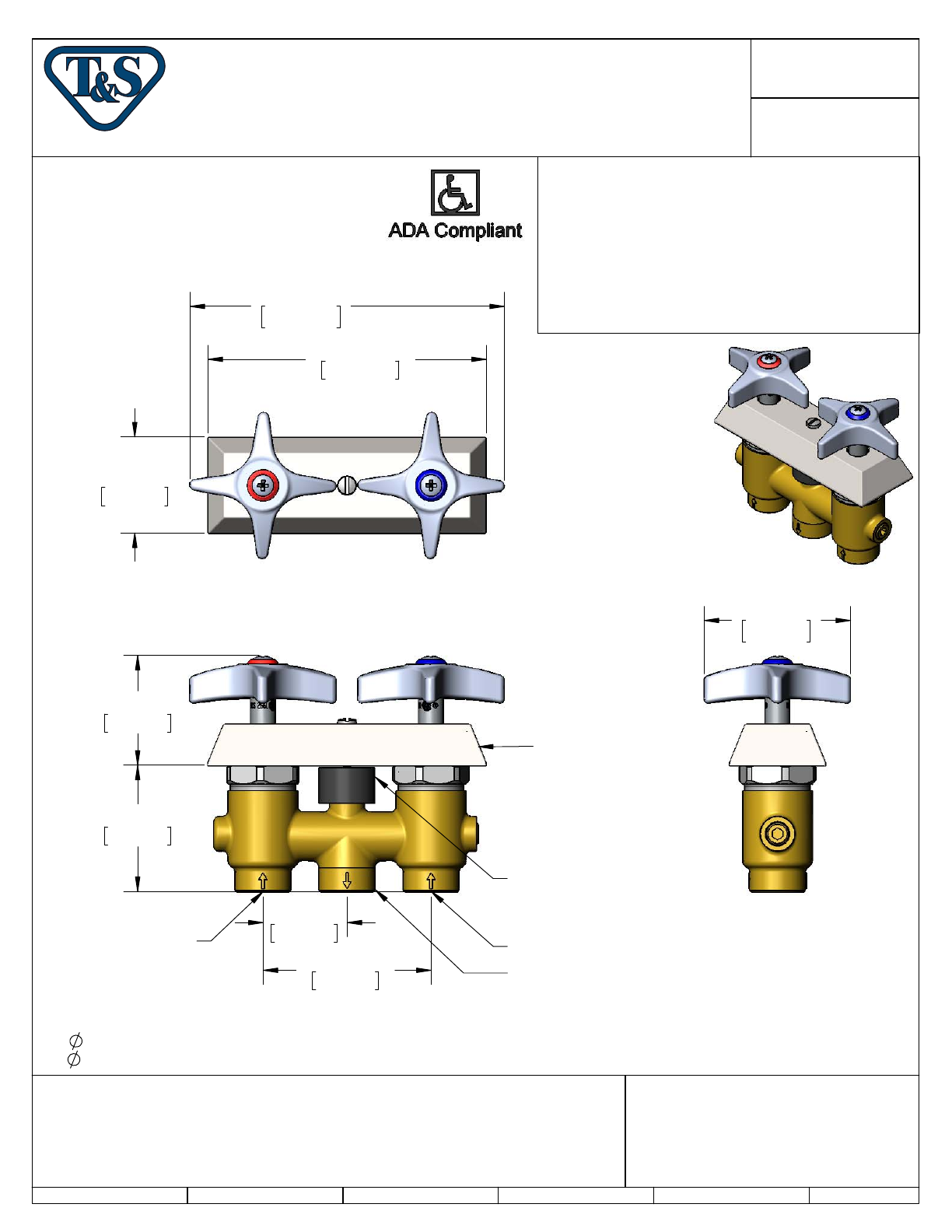

Specification Sheet

3"
76mm
1 1/2"
38mm
5 5/8"
143mm
3/8" NPT Inlet
to Mounting Surface
Escutcheon
3/8" NPT Outlet
Delrin Spacer Holds
Escutcheon Tightly
3/8" NPT Inlet
2 1/4"
57mm
1 15/16"
50mm
2 5/8"
66mm
44mm
1 11/16"
5"
126mm
Rough-In Requirement:
(2)
1 9/16"[ 40mm] Faucet Mounting Holes
1/4" [6mm] Center Mounting Screw
__________________________Date_________
Product Specifications:
Scale:
Model No.
Item No.
T&S BRASS AND BRONZE WORKS, INC.
11/21/16JRM
B-0512
Concealed Mixing Faucet w/ 4-Arm Handles
Model Specified_____________________ Quantity______
Travelers Rest, SC 29690
Date: 1:2
2 Saddleback Cove / P.O. Box 1088
Customer/Wholesaler______________________________
Contractor_______________________________________
2
of
1
Architect/Engineer_________________________________
Checked:
Drawn: Approved:
JBC
JHB
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: [phone] • www.tsbrass.com
Sheet:
This Space for Architect/Engineer Approval
Job Name
Product Compliance:
ASME A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
