45°

Architect/Engineer_________________________________

Product Specifications:

Scale:

Model No.

Item No.

T&S BRASS AND BRONZE WORKS, INC.

04/30/14Date: 1:4JRM

B-0575

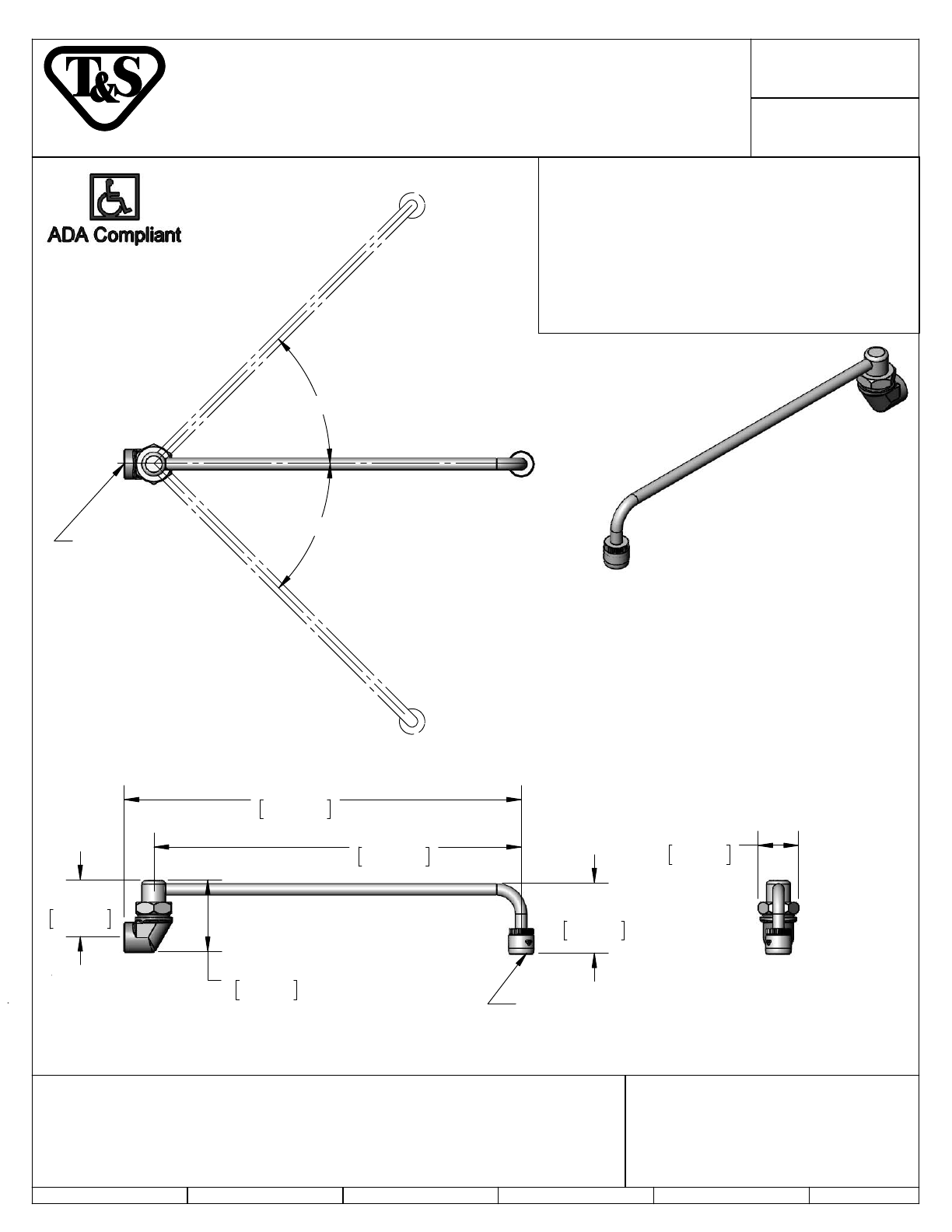

Range Faucet w/ 2.2 GPM Aerator Outlet, Swing Nozzle & 3/8" NPT

1Sheet:

Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com

JHB

KJG

Approved:Drawn:

Travelers Rest, SC 29690

Female Inlet

2 Saddleback Cove / P.O. Box 1088

Checked:

This Space for Architect/Engineer Approval

Job Name__________________________Date_________

Model Specified_____________________ Quantity______

Customer/Wholesaler______________________________

Contractor_______________________________________

Product Compliance:

ASME A112.18.1 / CSA B125.1

NSF 61 - Section 9

NSF 372 (Low Lead Content)

ANSI A117.1 (ADA)

Position

Full Open

Closed Position

Right Swing

3/8" NPT

Female

Inlet

Left Swing

Closed Position

2.2 GPM

Aerator Outlet

13 1/8"

333mm

2 1/2"

64mm

14 3/16"

360mm

52mm

2 1/16"

2 9/16"

65mm

1 7/16"

37mm

Summary of content (2 pages)

PAGE 1
Model No. T&S BRASS AND BRONZE WORKS, INC. 2 Saddleback Cove / P.O. Box 1088 Travelers Rest, SC 29690 B-0575 Item No. Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.
PAGE 2
Model No. T&S BRASS AND BRONZE WORKS, INC. B-0575 2 Saddleback Cove / P.O. Box 1088 Travelers Rest, SC 29690 Item No. Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com ITEM NO. 1 2 3 4 5 SALES NO. 001069-45 009268-45 001621-20 009267-45 001625-45 O-Ring O-Ring Dynamic Bearing O-Ring Wrist Action Return Spring 6 7 001626-40 001624-25 Nozzle Adapter, 1/8" Female x Male Aerator 8 B-0199-01 2.
