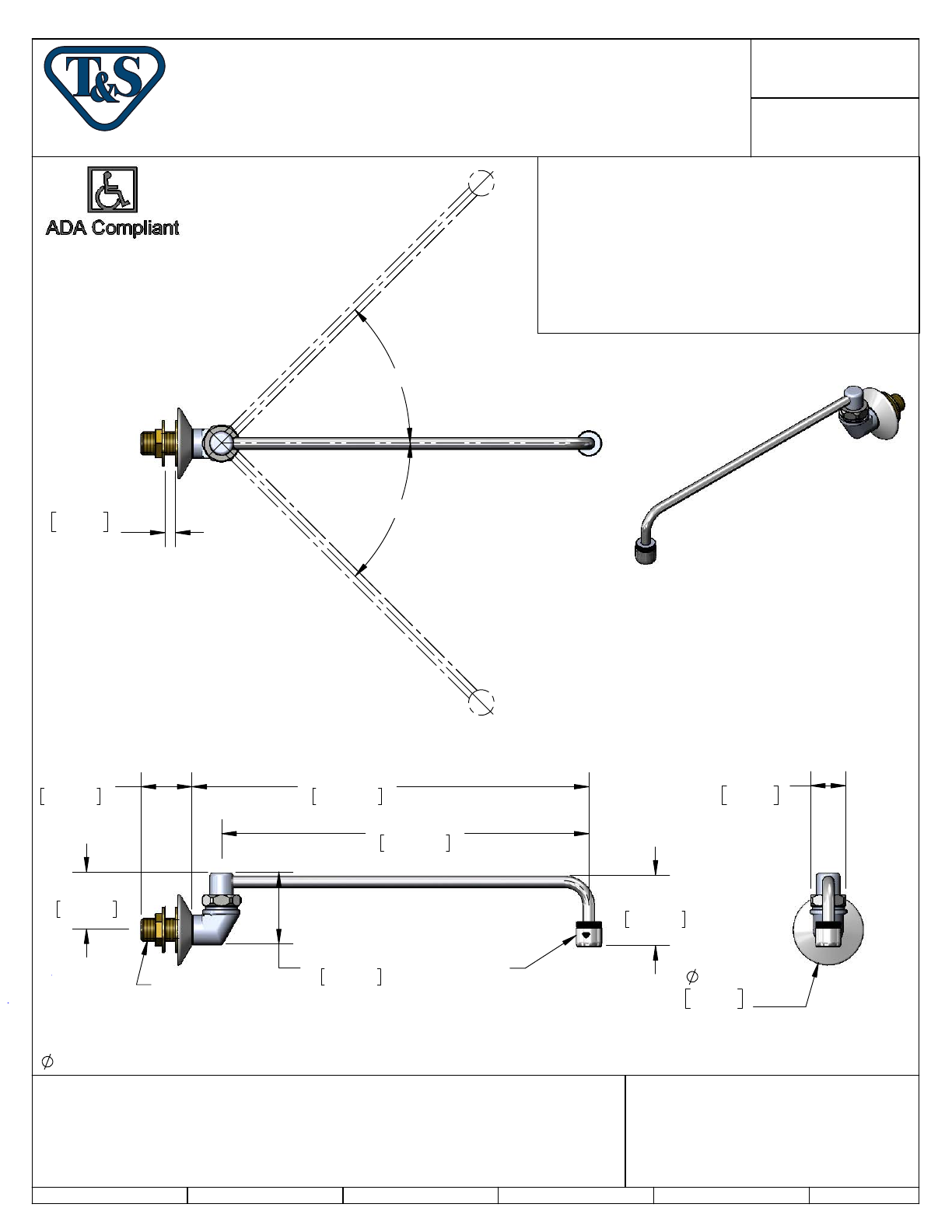

Specification Sheet

45°
45°
1/2" NPSM
Male Inlet
2.2 GPM
Aerator
2 1/2"
64mm
333mm
13 1/8"
360mm
14 3/16"
1 13/16"
46mm
65mm
2 9/16"
2 1/16"
52mm
Swing
Closed Position
Closed Position
Left Swing
Right
Full Open
Position
3/8"
10mm
Maximum
Thickness
64mm
2 1/2"
Flange
1 1/4"
32mm
Rough-In Requirement:
1" [25mm] Mounting Hole
Architect/Engineer_________________________________
Product Specifications:
Scale:
Model No.
Item No.
T&S BRASS AND BRONZE WORKS, INC.
11/08/17JRM
B-0577
Swing Nozzle & 1/2" NPSM Male Inlet
Range Faucet w/ 2.2 GPM Aerator Outlet,
Travelers Rest, SC 29690
Date:
2
of
1Sheet:
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: [phone] • www.tsbrass.com
JHB
KJG
Approved:
1:4
2 Saddleback Cove / P.O. Box 1088
Checked:
Drawn:
This Space for Architect/Engineer Approval
Job Name
__________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Product Compliance:
ASME A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
