Specification Sheet

[312mm]
1/4"12 1/4"
2 11/16"
68mm
60°
180°
2 Saddleback Cove / P.O. Box 1088
Contractor_______________________________________
Product Specifications:
Scale:
Model No.
Item No.
T&S BRASS AND BRONZE WORKS, INC.
06/30/14 JRM
B-3952
2

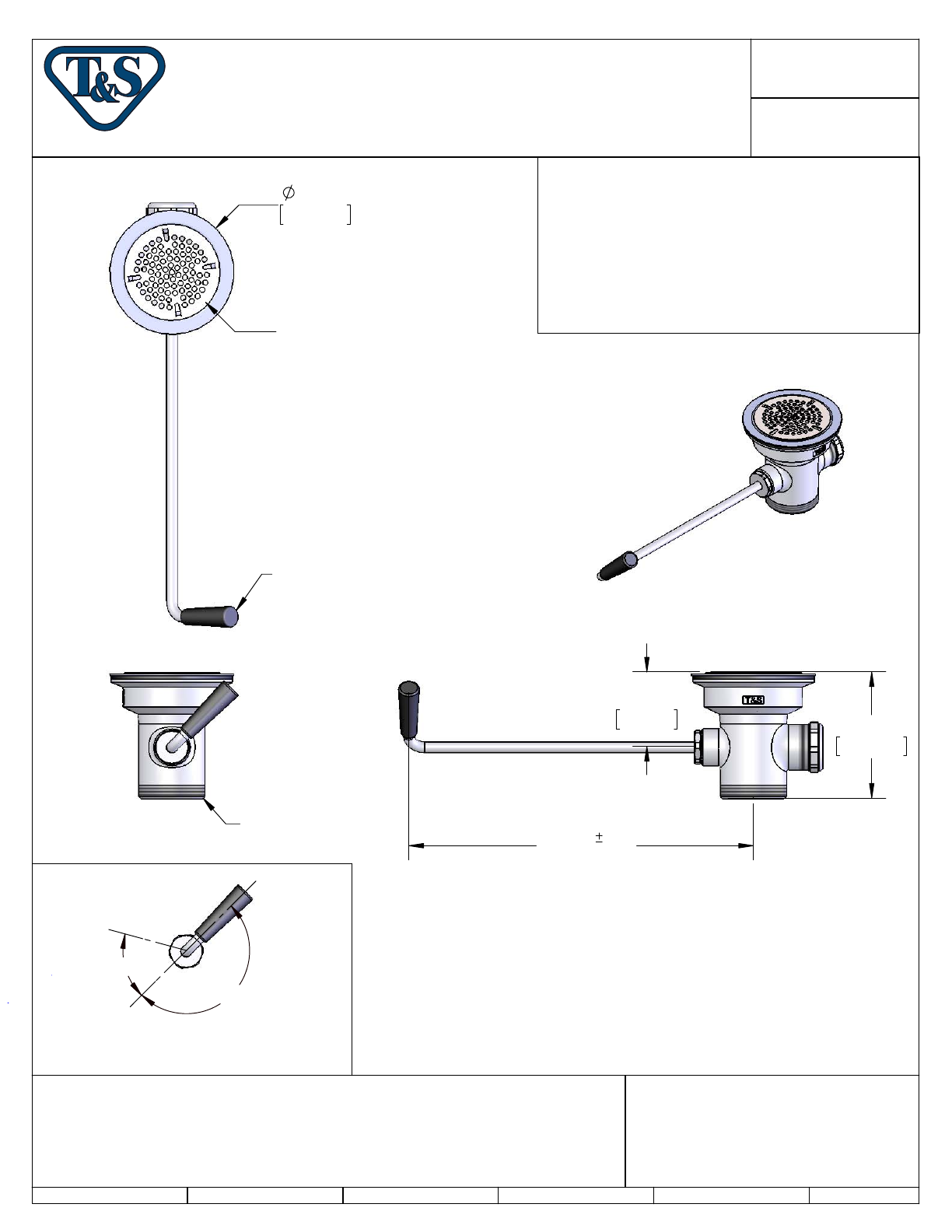

Rotary Waste Valve w/ Twist Handle, 3 1/2" Sink Opening, 2" NPT Male
Travelers Rest, SC 29690
Date:
Thread & 1 1/2" Female Thread Outlet
of
1Sheet:
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: [phone] • www.tsbrass.com
JHB
DHL 1:4
Architect/Engineer_________________________________
Checked:
Drawn: Approved:
This Space for Architect/Engineer Approval
Job Name
__________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Product Compliance:
ASME A112.18.2 / CSA B125.2
4 1/2"
115mm
CLOSED
LOCKED
OPENED
HANDLE
ORIENTATION
2" NPT Male Thread,
1 1/2" NPT Female
Thread Outlet
Snap-In Strainer
Removable
Twist Handle w/
Heat Resistant
Plastic Grip
(Shown in Open
Position)
4 7/16"
113mm
