ManualsBrandsT and S Brass ManualsShop AllT and S Brass Open Hose reel with 35' Hose, 1.07 GPM Spray Valve, and Swivel

8 3/4"

14 1/2"

[368mm]

[222mm]

18"

[458mm]

Mounting Hole Details

B-0108

Spray Valve

1.07 GPM

35 Ft. of 3/8" Hose

Open Stainless Steel Hose Reel;

019652-40

3/8" NPT

Live Swivel

16 9/16"

[421mm]

7 3/16"

[182mm]

3/8" NPT Female Inlet

(Left Side of Reel)

Customer/Wholesaler______________________________

Product Specifications:

Scale:

Model No.

Item No.

T&S BRASS AND BRONZE WORKS, INC.

02/28/18KJG

B-7132-08M

2 Saddleback Cove / P.O. Box 1088

Contractor_______________________________________

Travelers Rest, SC 29690

Date:

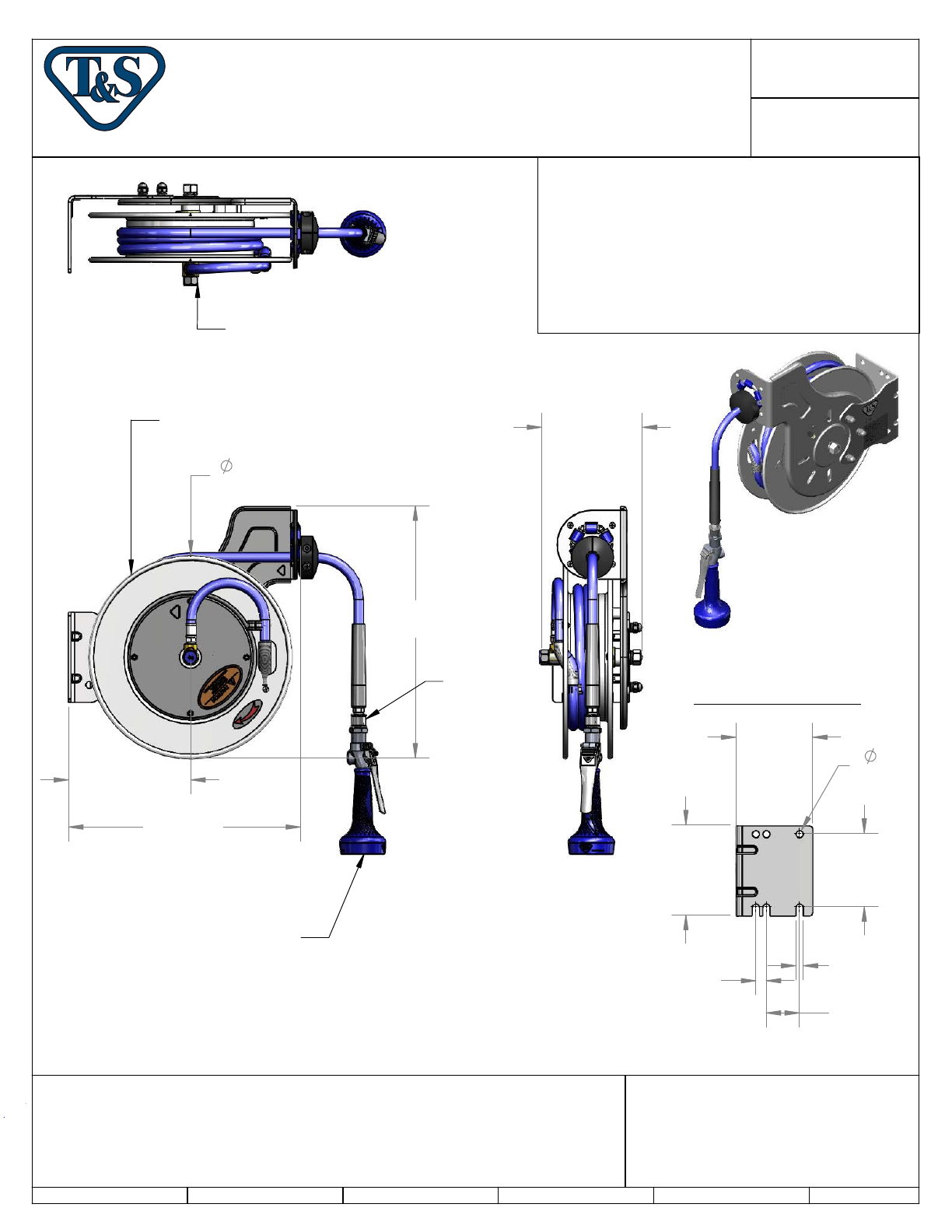

3/8" x 35 Ft. Open Stainless Steel Reel w/ 1.07 GPM Spray Valve & Swivel

1Sheet:

Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com

JHB

1:8

Architect/Engineer_________________________________

Checked:

Drawn: Approved:

JRM

This Space for Architect/Engineer Approval

Job Name

__________________________Date_________

Model Specified_____________________ Quantity______

Product Compliance:

NSF 61 Exempt (Non-Potable)

EPAct 2005 Non-Compliant (PRSV)

[133mm]

5 1/4"

[19mm]

3/4"

6 7/16"

[139mm]

[164mm]

5 1/2"

[13mm]

1/2"

2 3/8"

[60mm]

1/2"

[13mm]
