Specification Sheet

21mm
152mm
6"
13mm
1/2"
6 3/16"
158mm
7 9/16"
193mm
3 1/8"
79mm
13/16"
1/2"
13mm
50' of 3/8" Hose
High Flow
Live Swivel
Spray Valve
3/8" NPT
019652-40
EB-0107
Enclosed Stainless Steel Hose Reel
11 1/4"
286mm
547mm
21 9/16"
20 9/16"
522mm
3/8" NPT Female Inlet
(Left Side of Reel)
8 7/16"
214mm
Customer/Wholesaler______________________________
Product Specifications:
Scale:
Model No.
Item No.
T&S BRASS AND BRONZE WORKS, INC.
10/09/17KJG
B-7142-C01
2 Saddleback Cove / P.O. Box 1088
Contractor_______________________________________
Travelers Rest, SC 29690
Date:

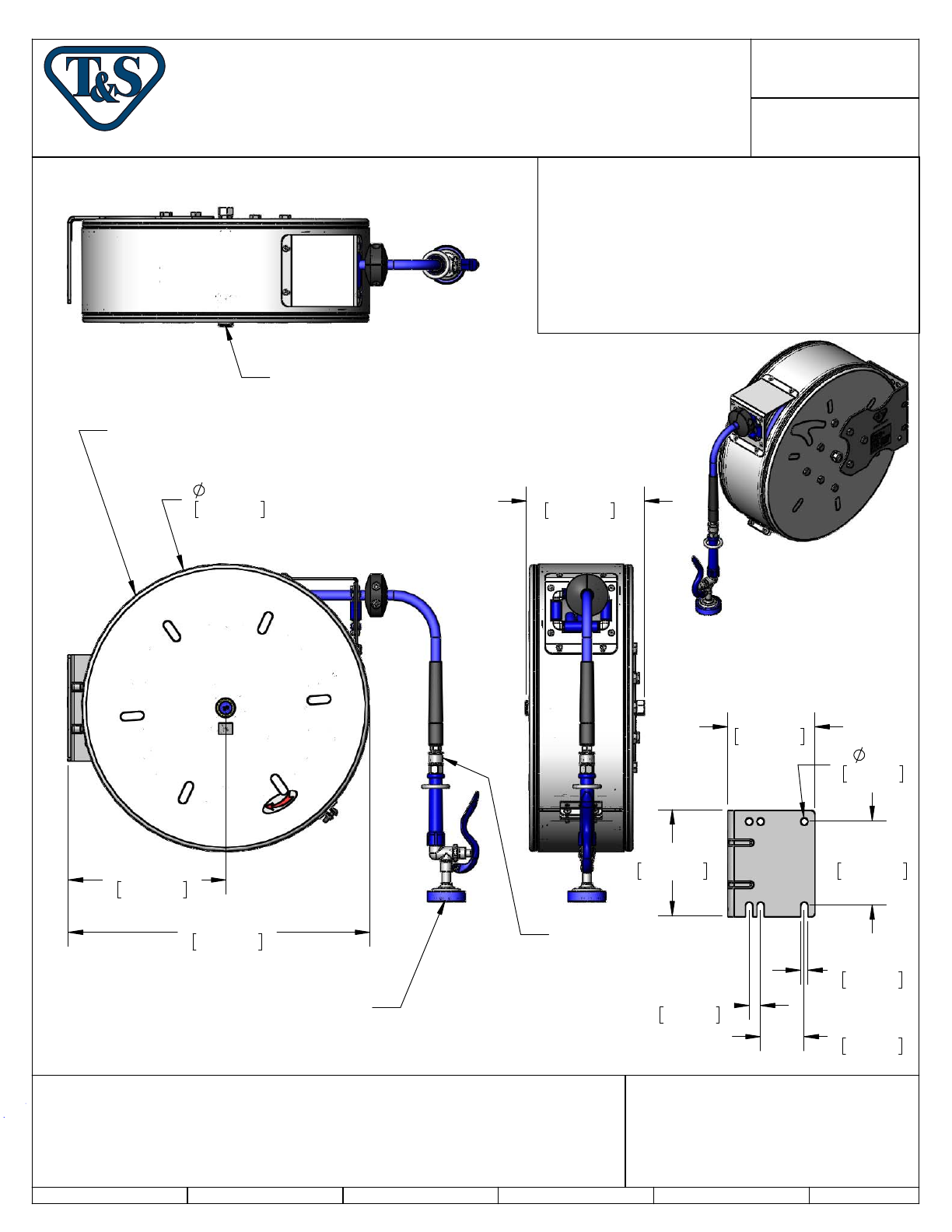

3/8" x 50' Enclosed Stainless Steel Reel w/ High Flow Spray Valve & Swivel
2
of
1Sheet:
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: [phone] • www.tsbrass.com
JHB
1:8
Architect/Engineer_________________________________
Checked:
Drawn: Approved:
AMG
This Space for Architect/Engineer Approval
Job Name
__________________________Date_________
Model Specified_____________________ Quantity______
Product Compliance:
NSF 61 Exempt (Non-Potable)
EPAct 2005 Non-Compliant (PRSV)
