Specification Sheet

3/4"
[19mm]
50mm
2"
3"
76mm
Female Outlets
3/8" NPT
Vandal Resistant Pin
in Counter Surface for
Drill Ø1/4" Mounting Hole
3/8" NPT
Female Inlet
1 3/8"
[35mm]
7/16"
11mm
2 3/16"
55mm
2 3/16"
56mm
1
Product Specifications:
Scale:
Model No.
12/16/16JRM
BL-4102-0
T&S BRASS AND BRONZE WORKS, INC.
Approved:
Travelers Rest, SC 29690
1Sheet:
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: [phone] • www.tsbrass.com
JHB
JBC
Drawn:
Checked:
Date:

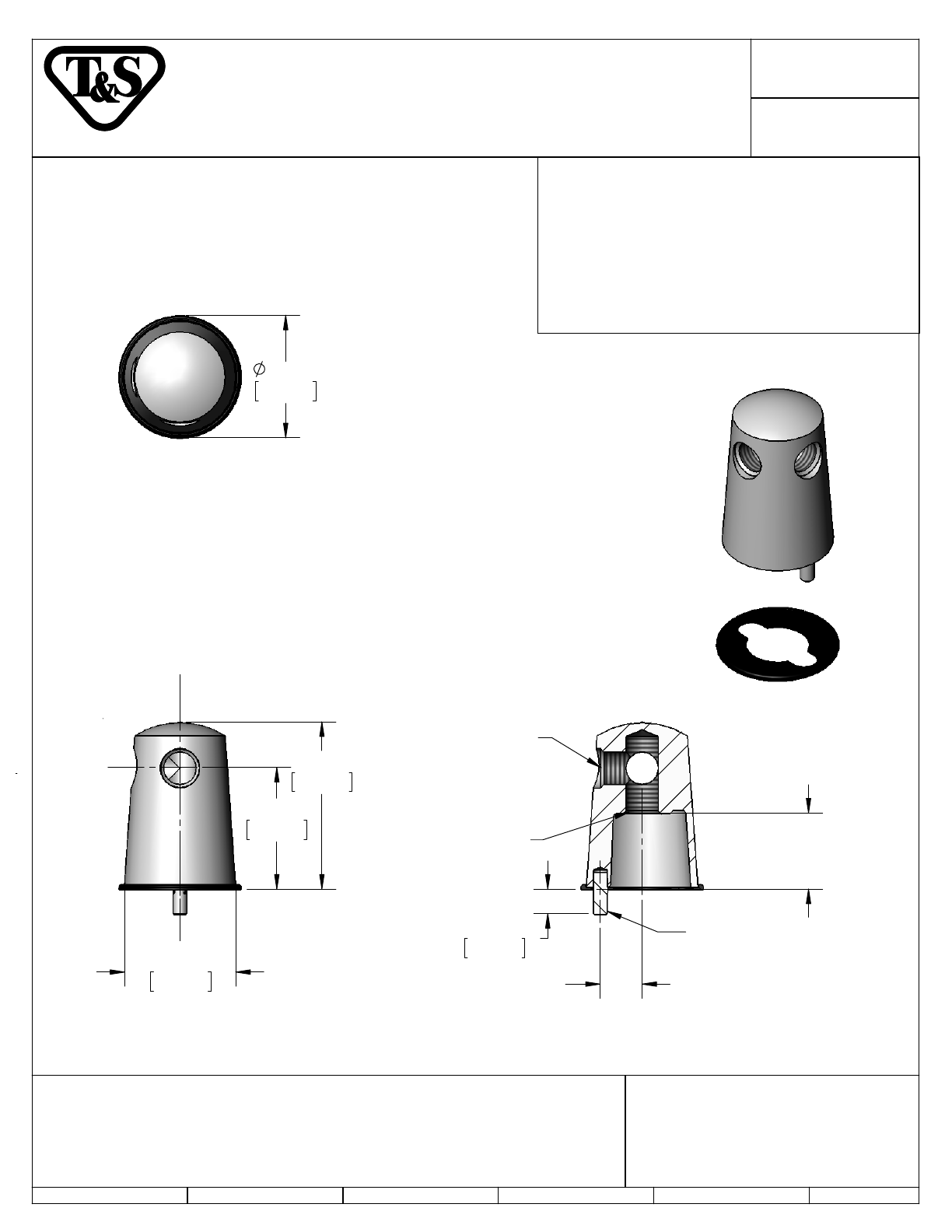

Gas Turret w/ Vandal Resistant Pin & (2) Outlets 90° Apart
Item No.
of
2 Saddleback Cove / P.O. Box 1088
1:2
This Space for Architect/Engineer Approval
Job Name
__________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
Product Compliance:
