Specification Sheet

3 5/16"
84mm
7 1/4"
184mm
359mm
14 1/8"
5 7/8"
150mm
Contractor_______________________________________
__________________________Date_________

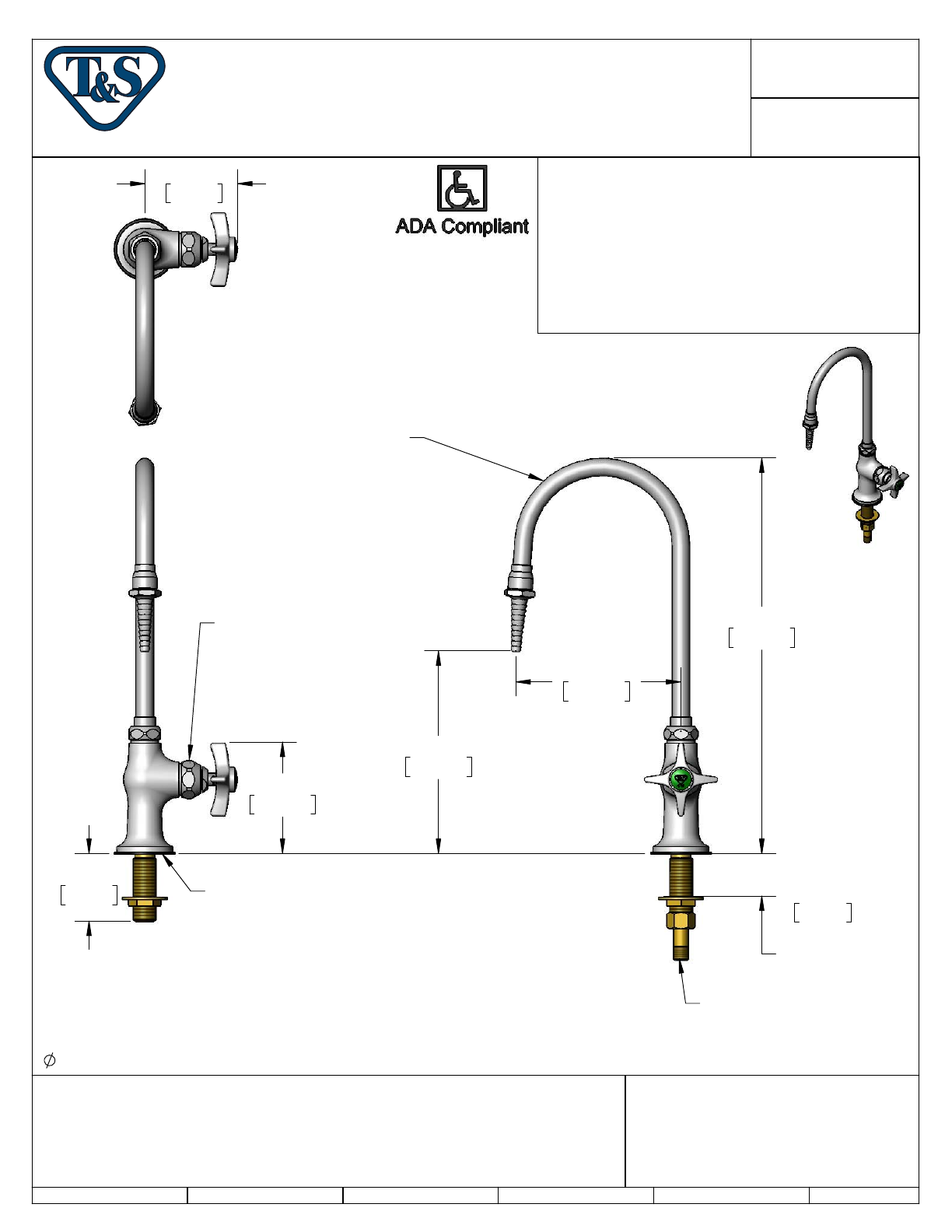

Product Specifications:
Scale:
Model No.
Item No.
T&S BRASS AND BRONZE WORKS, INC.
08/04/17JRM
BL-5705-03
Single Hole Single Temperature Laboratory Faucet, Quarter-Turn Eterna
Customer/Wholesaler______________________________
Model Specified_____________________ Quantity______
Cartridge w/ Spring Check, 4-Arm Lab Handle, Swivel Gooseneck, Serrated
Travelers Rest, SC 29690
Date:
Tip Outlet & 1/2" NPSM Male Inlet
2 Saddleback Cove / P.O. Box 1088
2
of
1Sheet:
1:4
Architect/Engineer_________________________________
Checked:
Drawn: Approved:
MRC
JHB
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: [phone] • www.tsbrass.com
This Space for Architect/Engineer Approval
Job Name
Product Compliance:
ASME A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
Rough-In Requirement:
1" [25mm] Mounting Hole
4-Arm Lab Handle w/
Color Coded Index
Quarter-Turn Eterna Cartridge
w/ Spring Check &
Ø 2" [51mm]
Flange w/
Black Plastic Deck
Gasket & 1/2" NPSM
Male Inlet
4"
101mm
2 7/16"
61mm
014200-45 Lock Washer
(Included)
Converts to Rigid w/
Mounting Surface
Serrated Tip w/ Washer
Swivel Gooseneck w/
B-0198
150A
Optional Tailpiece & Nut
for 1/4" NPT Connection
(Included)
1 1/2"
38mm
Maximum
Thickness
