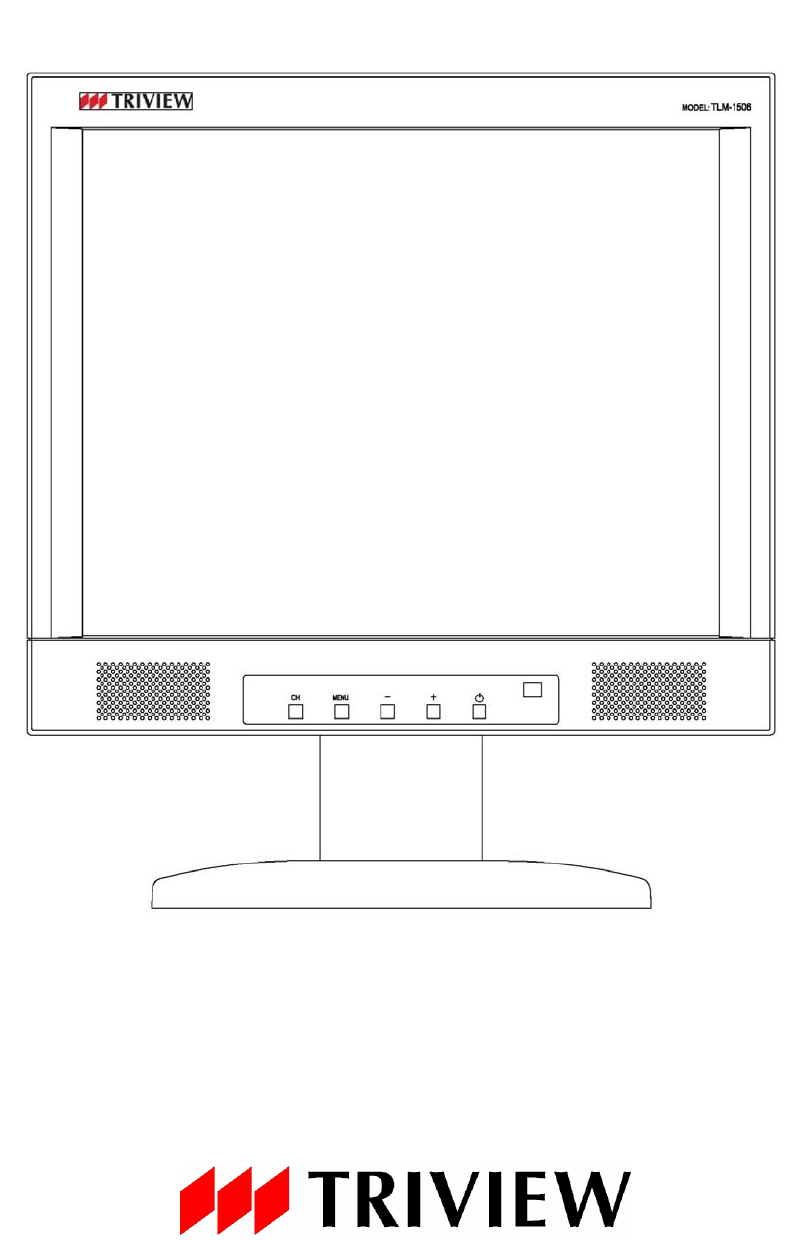

OPERATING INSTRUCTIONS TLM-1506 / TLM-1706 / TLM-1906
TABLE OF CONTENTS z FCC information ---------------------------------------------------------------------- 3 z CE information ------------------------------------------------------------------------ 3 z Safety Precautions ------------------------------------------------------------------- 3 1. Scope -------------------------------------------------------------------------------------- 5 2. Unpacking -------------------------------------------------------------------------------- 5 3.
FCC INFORMATION This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
. Do not place this monitor near a radiator or heating vent. 5. Do not push objects of any kind through cabinet openings. This may result in fire or electrical shock. 6. Before adding attachments always ask a service technician to perform routine safety tests to determine that equipment is in safe operating condition. Ground potential tests should be part of the routine safety check made by the service technician. 7.
1. Scope This specification is used to define the performance of TLM-1506 / TLM-1706 / TLM-1906 color TFT LCD monitor. This system supports both video input and PC VGA input. In video input mode, the system can automatically detect the NTSC signal and PAL signal. In PC mode, TLM-1506 can support up to 1024x768 VESA standards. TLM-1706 and TLM-1906 can support up to 1280x1024 VESA standards. 2.
Optical Characteristics: TLM-1506 Luminance Contrast Ratio Viewing Angle 450 cd/m2 500:1 140o Horizontal,125o Vertical TLM-1706 TLM1906 300 cd/m2 1000:1 160o Horizontal,160o Vertical 300 cd/m2 1000:1 160o Horizontal,160o Vertical Video Characteristics: Composite Video (CVBS): 1.0 Vp-p (0.5 – 1.5Vpp), Automatic switching from 75 Ω unbalanced termination to Hi-Z with loop-through operation. Y/C (S-video): 1.0 Vp-p (0.5 – 1.
Indicators: LED: Power-on (Green), Power Off (Red) Connectors: Power inlet: AC power socket. Video : Two (2) BNC, one in, one loop thru out.
4. Controls and Indicators Press this button to turn ON / OFF the monitor MENU 1. Press this button to enter OSD menu 2. Press this button to confirm and exit the selected parameter – 1. Press the buttons to adjust volume 2. Under the main OSD menu, Press the buttons to move the cursor to desired selection in OSD menu 3.
5. OSD Menu 5.1 Video Mode Main Menu VIDEO IN MAIN MENU BRIGHTNESS CONTRAST COLOR TINT SHARPNESS DISPLAY ADJUST COLOR TEMPERATURE LANGUAGE OSD ADJUST AUDIO CONTROL INPUT SELECT RESET EXIT VIDEO MODE : NTSC H.SYNC : 31.5KHz V.SYNC : 60.0Hz MODEL : TLM-1906 Press <+> or <–> key to move cursor to desired selection and push
5.1.2 Display Adjust VIDEO IN DISPLAY ADJUST PHASE CLOCK H-POSITION V-POSITION H-SIZE V-SIZE ASPECT RATIO AUTO ADJUST RESET EXIT 100 100 50 50 50 50 MODEL : TLM-1906 Press <+> or <–> key to move cursor to desired selection and push
key to select it. 5.1.2.5.1.2.3 Reset Reset allows user to recover the default setting of H-Position, V-Position, H-Size, and V-Size. But it won’t affect the Aspect Ratio. 5.1.3 Color Temperature VIDEO IN COLOR TEMPERATURE 9300K 7500K 6500K USER PRESET RESET EXIT MODEL : TLM-1906 Color Temperature allows user change the color temperature of the monitor. Reset allows LCD monitor to return default setting. Note: User Preset allows user to adjust the color of the LCD panel.
5.1.5 OSD Adjust VIDEO IN OSD ADJUST H-POSITION V-POSITION TIME OUT TRANSPARENCY RESET EXIT 50 50 30 0 MODEL : TLM-1906 5.1.5.1 H-Position/ V-Position/ Time Out/ Transparency After move the curser to desired parameter and hit
key, the curser bar will turn into Light Blue, and then press <+> or <–> key to adjust the value of H-Position (0~100), V-Position (0~100), Time Out (0~30) or Transparency (0~3). After that, hit key to confirm the selected parameter and return to menu.5.1.6.2 Volume After move the curser to Volume and hit
key, the curser bar will turn into Light Blue, and then press <+> or <–> key to adjust the value of Volume (0~100). After that, hit key to confirm the value of Volume and return to menu. 5.1.6.3 Reset Reset allows user to recover the default setting of Mute and Volume. 5.1.7 Input Select VIDEO IN INPUT SELECT VGA IN VIDEO IN S-VIDEO IN EXIT MODEL : TLM-1906 Input Select allows user to switch the VGA, Video and S-Video Channel. 5.1.5.3 VGA Mode Main Menu VGA IN MAIN MENU BRIGHTNESS CONTRAST COLOR TINT SHARPNESS DISPLAY ADJUST COLOR TEMPERATURE LANGUAGE OSD ADJUST AUDIO CONTROL INPUT SELECT RESET EXIT RESOLUTION : 1280 x 1024 H. SYNC : + 64.0 KHz V. SYNC : + 60.0 Hz MODEL : TLM-1906 5.3.1 Brightness/ Contrast The function is same as Video mode. Please refer to 5.1.1. 5.3.2 Display Adjust VGA IN DISPLAY ADJUST PHASE CLOCK H-POSITION V-POSITION H-SIZE V-SIZE ASPECT RATIO AUTO ADJUST RESET EXIT 50 50 50 50 50 50 MODEL : TLM-1906 5.3.2.
Note: Phase allows user to adjust phase of the image. Clock allows user to adjust clock of the image. H-Position allows user to adjust horizontal position of the image. V-Position allows user to adjust vertical position of the image. 5.3.2.2 Auto Adjust AUTO ADJUST Move the curser to AUTO ADJUST and hit the
key. Note: Auto Adjust allows user to adjust the image automatically. 5.3.2.3 Reset Reset allows user to recover the default setting of Phase, Clock, V-Position and H-Position. 5.3.6. Regulatory Agency 6.1 Safety Approvals This series design shall meet the standards of the following domestic and foreign agencies: UL listed: UL60950-2000 listing (Information Processing and Business Equipment) CUL Certified: CAN/CSA C22.2 No. 950-95 (Information Technology Equipment) CE LVD: IEC 60950: 1999 3rd edition CB: IEC 60950: 1999 3rd edition 6.
9.
10. LCD Video Monitor Specification MODEL DESCRIPTION TLM-1506 TLM-1706 TLM-1906 Panel type 15” TFT color LCD 17” TFT color LCD 19” TFT color LCD Screen size 15” (381mm) diagonal 17” (432mm) diagonal 19” (483mm) diagonal Viewable size 304.1x228.1mm 337.9x270.3mm 376.3 x301.0mm Dot pitch 0.297x0.297mm 0.264x0.264mm 0.294 x 0.
TATUNG COMPANY OF AMERICA 2850 El Presidio Street Long Beach, CA 90810 (800) 827-2850 www.tatungusa.
