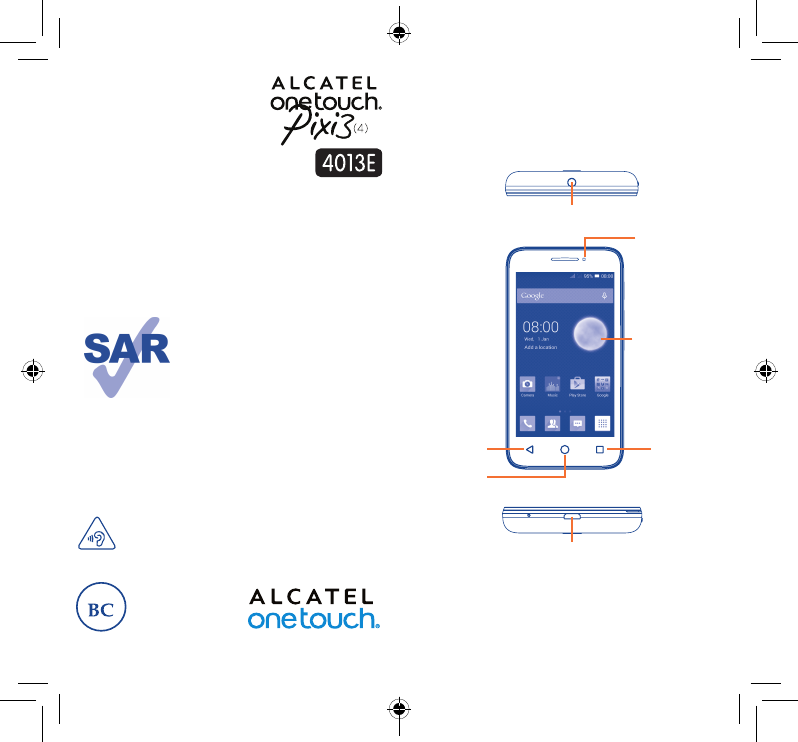

1 Your mobile ����������������� 1.1 Keys and connectors Headset connector Quick Start Guide Front Camera For more information about how to use the phone, please go to www.alcatelonetouch.com to download the complete user manual. From the website you can also consult the FAQ, upgrade software, etc. This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found in the RADIOWAVES section of this user guide. www.sar-tick.
Camera Flash/Torch Power key • Press: Lock the screen/Light up the screen. Power key • Press and hold: Power on or generate a pop up menu selecting from Power off/Restart/Airplane mode or icons of Ringer mode. Volume up • Press to mute the ringtone when there’s an incoming call. Volume down • Press and hold for more than 10 seconds to restart the phone when the system halted. • Press and hold Power key and Volume down key to capture a screenshot.
1.2 Getting started 1.2.1 Set-up Installing or removing the microSD card Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your phone before inserting or removing the SIM card. Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. Both SIM1 and SIM2 can support 2G and 3G networks.
1.2.2 Power on your phone Hold down the Power key until the phone powers on. It will take a few seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you should set the following options: language, input method, Google account, etc. If you power on your phone with no SIM card inserted, you can connect to a Wi-Fi network to sign into your Google account and to use some features. 1.2.
Status icons Notification icons New text or multimedia message Missed call Problem with SMS or MMS delivery Call on hold New Hangouts message Call forwarding is on New voicemail Uploading data Upcoming event Downloading data Data is synchronizing Download finished Battery is partially drained Screenshot error Select input method Connected to a Wi-Fi network Battery is full USB tethering is on An open Wi-Fi network is available Bluetooth is on Battery is charging Portable Wi-Fi hotspot
Notification panel 1.3.5 Touch and drag down the Status bar to open the notification panel. Touch and drag up to close it. From the Notification panel, you can open items and other reminders indicated by notification icons or view wireless service information. Add Touch to access Quick setting bar. Personalize your Home screen Touch the application tab , touch and hold an application to activate Move mode, and drag the item to any Home screen as you prefer.
2.1.1 Android keyboard Touch to enter text or numbers. Touch to switch between "abc/ Abc" mode; Touch & hold to switch between "abc/ABC" mode. 1.3.7 Touch to enter symbols/ emoticons. Volume adjustment You can set ringer, media and phone ringtone volume to your preference by pressing Volume up/down key or touching Settings\Sound. Touch & hold to show input options; when Wi-Fi or data connection is on, touch to enter voice input. Touch to switch between symbol and numeric keyboard. 1.4 2.1.
2.2 Text editing 3.2 Answering or rejecting a call You can edit the text you have entered. • Touch and hold or double-tap within the text you would like to edit. • Drag the tap to change the highlighted selection. • The following options will appear: Select all and Paste . • Touch the icon , Cut , Copy to confirm. 3 Phone call ��������������� 3.1 Placing a call When you receive a call, touch .
4 People ��������������������� 4.1 Adding a contact You can view and create contacts on your phone and synchronize these with your Gmail contacts or other applications on the web or on your phone. Touch Application tab on the Home screen, select People app, in the contact list to create a new contact. then touch the icon Contact list Contact group list; Favorites Touch a contact you want to share, touch and Share from the contact details screen, then select the application to perform this action. 4.
Sending a text message To create and send emails Enter the mobile phone number of the recipient on Type person's name or number bar or touch to add recipients, touch Type text message bar to enter the text of the message. When finished, touch to send the text message. • Touch the icon from Inbox screen. • Enter recipient(s) email address(es) in To field. and touch Add Cc/Bcc to add a copy or a • If necessary, touch blind carbon copy to the message. • Enter the subject and the content of the message.
To turn Wi-Fi on and connect to a wireless network • Touch on Quick setting bar to get to Settings. • Touch the switch beside Wi-Fi to turn on\off Wi-Fi. To disconnect (from mass storage): • Unmount the microSD card on your computer. • Open the Notification panel and touch Turn off USB storage. For Windows XP or lower operating systems, you should download and install Windows Media Player 11 on your computer.
8 ind my location using F GPS satellites To activate your phone’s global positioning system (GPS) satellite receiver: on Quick setting bar to get to Settings. • Touch • Touch Location. beside Location to turn on.
• Exchange messages or emails with friends. • Track your location, view traffic situations, search for locations and get navigation information to your destination. • Download more applications from Google Play Store and more. For more information about these applications, please check the online user manual at: www.alcatelonetouch.com. 11.2 Internal storage Touch Settings\Storage to display the amount of internal phone storage used by the operating system, its components, applications (including those you
12.2.2 FOTA Upgrade Using FOTA Upgrade tool you can update your phone's software. To access System Updates, please open notification panel and touch and then , then press About phone\System and access Settings\About updates. Or you can directly touch phone\System updates. Touch Check for updates, and the phone will search for the latest software. If you want to update the system, please touch the button Download, after it's done please touch Install to complete the upgrade.
Switch the mobile phone off when you are near gas or flammable liquids. Strictly obey all signs and instructions posted in a fuel depot, gas station, or chemical plant, or in any potentially explosive atmosphere. When the mobile phone is switched on, it should be kept at least 15 cm from any medical device such as a pacemaker, a hearing aid or insulin pump. In particular when using the mobile phone you should hold it against the ear on the opposite side to the device, if any.
• PRIVACY: Please note that you must respect the laws and regulations in force in your jurisdiction or other jurisdiction(s) where you will use your mobile phone regarding taking photographs and recording sounds with your mobile phone. Pursuant to such laws and regulations, it may be strictly forbidden to take photographs and/or to record the voices of other people or any of their personal attributes, and reproduce or distribute them, as this may be considered to be an invasion of privacy.
Although the SAR is determined at the highest certified power level, the actual SAR level of the mobile phone while operating can be well below the maximum value. This is because the mobile phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output of the mobile phone.
• LICENCES microSD Logo is a trademark. he Bluetooth word mark and logos are owned by the T Bluetooth SIG, Inc. and any use of such marks by TCL Communication Ltd. and its affiliates is under license. Other trademarks and trade names are those of their respective owners. ALCATEL ONETOUCH 4013E Bluetooth Declaration ID B021282 SwiftKey is a registered trademark of TouchType Ltd. The Wi-Fi Logo is a certification mark of the Wi-Fi Alliance.
TCL Communication Ltd. Warranty............................. TCL Communication Ltd. warrants to the original retail purchaser of this wireless device that should this product or part thereof during normal consumer usage and condition be proven to be defective in material or workmanship that results in product failure within the first twelve (12) months from the date of purchase as shown on your original sales receipt from an authorized sales agent.
Troubleshooting ������������������ Before contacting the service centre, you are advised to follow the instructions below: • You are advised to fully charge ( ) the battery for optimal operation. • Avoid storing large amounts of data in your phone as this may affect its performance. • Use Factory data reset and Mobile Upgrade tool to perform phone formatting or software upgrading (to reset factory data, hold down the power key and the Volume up key at the same time under power off mode).
Unable to receive incoming calls • Make sure your phone is switched on and connected to a network (check for overloaded or unavailable network). • Check your subscription status with your operator (credit, SIM card valid, etc.). • Make sure you have not forwarded incoming calls. • Make sure that you have not barred certain calls. • Make sure that your phone is not in airplane mode.
The phone will become warm following prolonged calls, game playing, internet surfing or running other complex applications. • This heating is a normal consequence of the CPU handling excessive data. Ending above actions will make your phone return to normal temperatures. ALCATEL is a trademark of Alcatel-Lucent and is used under license by TCL Communication Ltd.
