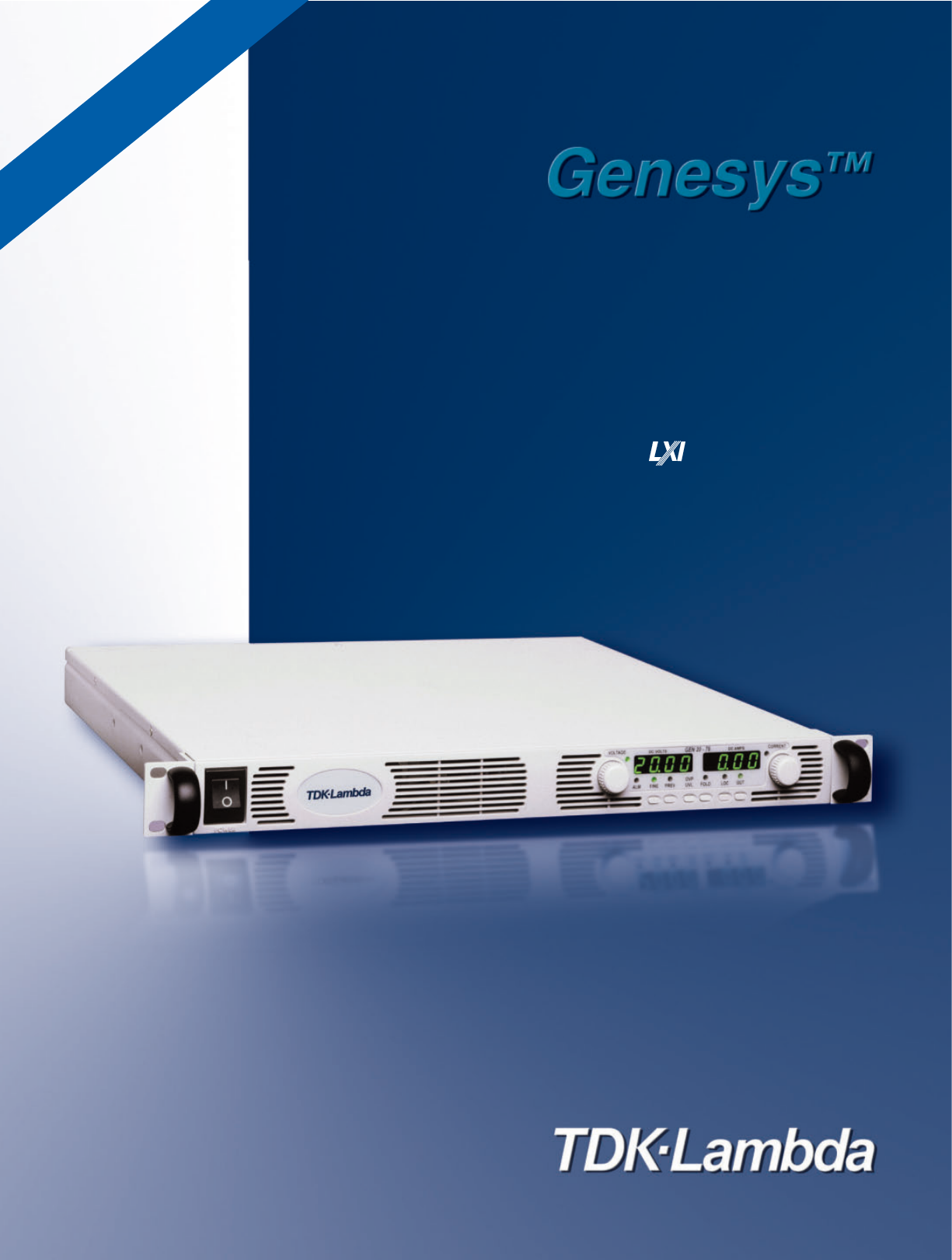

ed ons v o ati r p c Im cifi e p S Programmable DC Power Supplies 750W/1500W in 1U Built in RS-232 & RS-485 Interface Advanced Parallel Operation Optional Interface: Compliant LAN IEEE488.2 SCPI (GPIB) Multi-drop Isolated Analog Programming Genesys™ Family GenH 750W Half Rack Gen1U 750/1500W Full Rack Gen2U 3.
The GenesysTM family of programmable power supplies sets a new standard for flexible, reliable, AC/DC power systems in OEM, Industrial and Laboratory applications. Features include: • • • • • • • • • • • • • • • • • High Power Density: 1500W in 1U Wide Range Input (85 - 265Vac Continuous, single phase, 47/63Hz) Active Power Factor Correction (0.
Front Panel Description 1. 2. 3. 4. 5. 6. 7. AC ON/OFF Switch Air Intake allows zero stacking for maximum system flexibility and power density. Reliable encoder controls Output Voltage and sets Address. Volt Display shows Output Voltage and directly displays OVP, UVL and Address settings. Reliable encoder controls Output Current, sets baudrate and Advanced Parallel mode. Current Display shows Output Current and displays baudrate.
7.Temp. stability % 0.01% of rated Vout over 8hrs interval following 30 minutes warm-up. Constant line, load & temp. Genesys ™ 750W/1500W Specifications Specifications in Blue are improved 750W 1500W X 1.0 MODEL GEN 6-200 8-180 12.5-120 20-76 30-50 40-38 50-30 60-25 80-19 100-15 150-10 300-5 600-2.6 1. Rated output voltage (*1) V 6 8 12.5 20 30 40 50 60 80 100 150 300 600 X 2. Rated Output Current (*2) A 200 180 120 76 50 38 30 25 19 15 10 5 2.6 X 3.
General Specifications Genesys™ 750W/1500W 2.1 INPUT CHARACTERISTICS 1. Input voltage/freq. (*1) 2. Power Factor 3. EN61000-3-2,3 compliance 4. Input current 100/200Vac 5. Inrush current 100/200Vac 6. Hold-up time 85~265Vac continuous, 47~63Hz, single phase 0.99 @100/200Vac, rated output power. Complies with EN61000-3-2 class A and EN61000-3-3 at 20~100% output power. 750W :10.5A / 5A, 1500W :21A / 11A 750W :Less than 25A, 1500W :Less than 50A More than 20mS, 100Vac, at 100% load. 2.
Genesys™ Power Parallel and Series Configurations Parallel operation - Master/Slave: Active current sharing allows up to four identical units to be connected in an auto-parallel configuration for four times the output power. In Advanced Parallel Master/Slave Mode, total current is programmed and reported by the Master, Up to four supplies act as one. Series operation Up to two units may be connected in series to increase the output voltage or to provide bipolar output. (Max 600V to Chassis Ground).
Power Supply Identification / Accessories How to order GEN Series Name 600 - 2.6 Output Voltage (0~600V) Output Current (0~2.6A) - Factory Options AC Cable option is 750W only Option: IEEE IS510 IS420 LAN Region: E - Europe GB - United Kingdom J - Japan I - Middle East U- North America Models 750/1500W Model GEN6-100 GEN6-200 GEN8-90 GEN8-180 GEN12.5-60 GEN12.5-120 GEN20-38 GEN20-76 GEN30-25 GEN30-50 GEN40-19 GEN40-38 Output Voltage VDC 0~6V 0~8V 0~12.
Outline Drawing Genesys™ 750W/1500W Units 8 | GENESYS™ | 750-1500kW
NOTE 1. Bus bars for 6v to 60v models (shown) Wire clamp connector for 80V to 600V models 2. Plug connectors included with the power supply 3.
