User manual

Dimmer Grubu Montaj Şeması
Dimmer Range Assembly Diagram
Схема монтажа группы диммеров
(EN)
(RU)
Turn off the circuit breaker before installation.
Make sure that wiring and assembly are correctly done before operating the device.

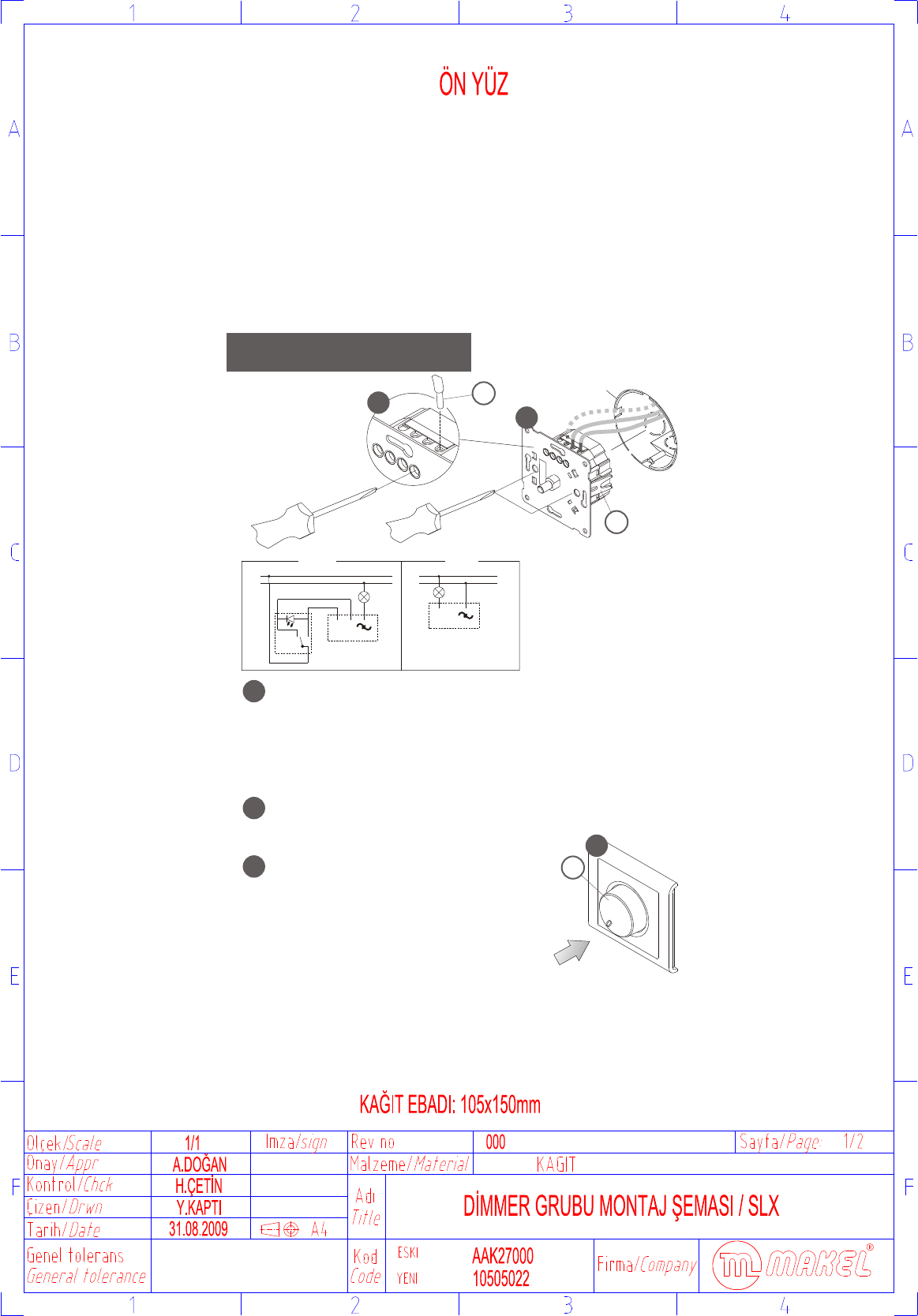

Fix the cables (1) according to wiring diagrams, as shown in the figure.
Закрепите провод(1) с помощью винтов согласно схеме.
Montaja başlamadan önce hatta gelen elektriği sigortadan kesiniz.
Kabloları (1) şekilde gösterildiği gibi bağlantı şemalarına uygun montaj yapınız.
Ürünü çalıştırmadan önce bağlantıların doğru olduğundan emin olunuz.
(TR)
(EN)
(RU)
Screw the bolt of the claws (2) to fix the product on the wall.
Для крепления устройства в монтажной коробке закрутите винты.
Duvara montaj için tırnakları (2) vidalarından sıkınız.(TR)
C
B
A
A
C
(TR) Aç - kapa işlemini tuşa (3) basarak yapabilirsiniz.
Tuşu (3) saat yönüne çevirdiğinizde ışık parlaklığı artar, saat
yönünün tersine çevirdiğinizde azalır.
(EN) Pushing the button (3) operates on / off function.
Rotating the button (3) clockwise increases light intensity,
rotating the button (3) counter clockwise decreases it.
LL
L
N
LL
L
N
Vavien Switch
B
(RU)
Для Вкл./ Выкл. устройства нажмите кнопку (3)
Поворотом регулятора изменяется яркость освещения.
Buvat
Box
1
2
Gerilim / Voltage:
Güç / Power:
250V ~ 50 Hz.
60W - 600W
3
Vavien Anahtar
