AMPSEAL Sealed Connector Series
Housings and Connectors
Catalog 1654285-1
Issued 7-2007.
All specifications subject to change. Consult Tyco Electronics for latest specifications.
25

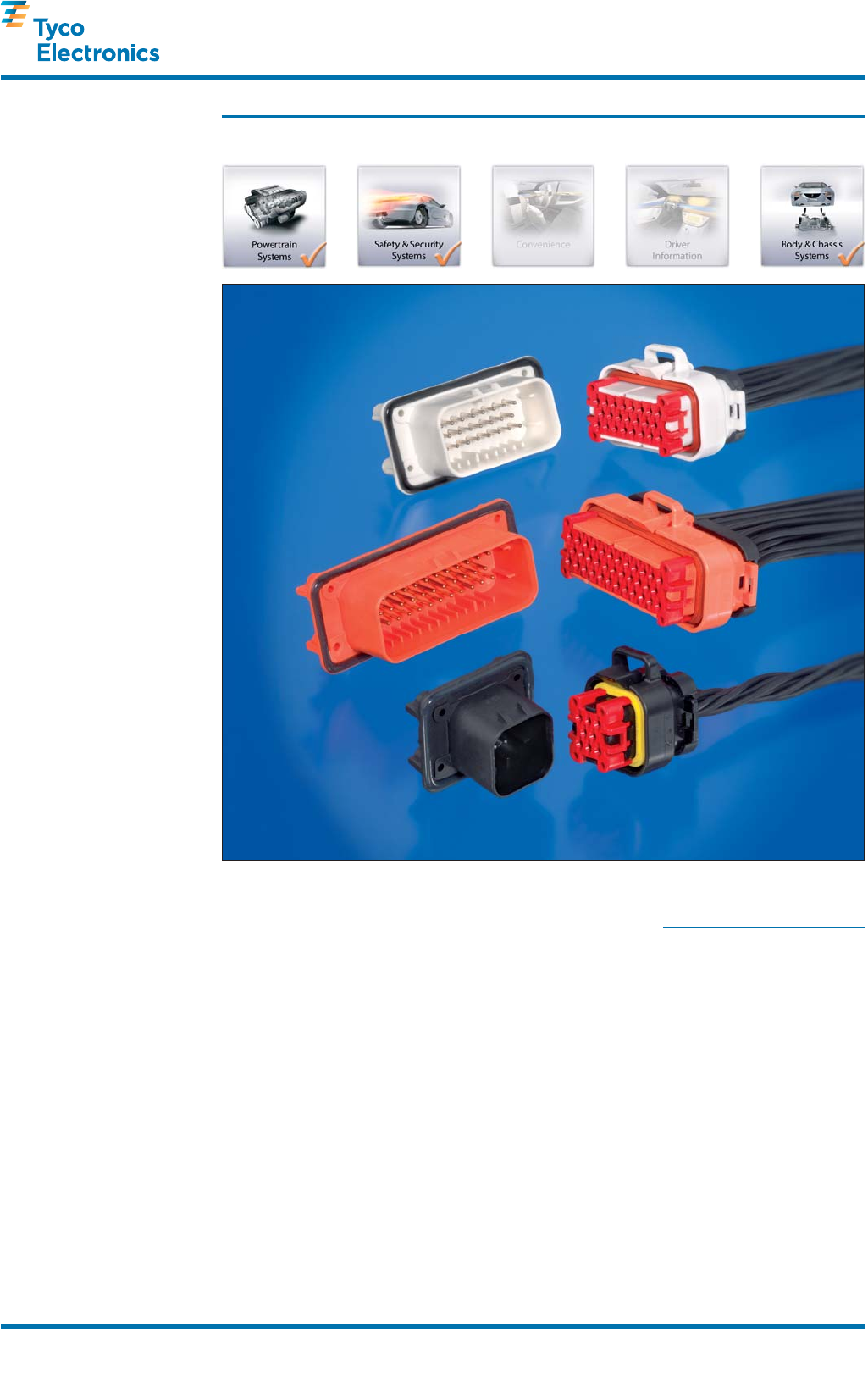

The housings use a two-piece
contact-holding design that
provides secondary locking
which protects against contact
backout.
After contacts are inserted
into the housing, the housing
snaps shut to firmly position
all contacts.
The connectors use three-row
contact grid on 4.0 center-
lines. Plastic pins can be
used to plug empty cavities in
application requiring selective
loading.
The pc board-mounting
connector is designed to be
flange mounted.
Available with or without a
formed in place flange seal.
Technical Features
■ Mechanical and colored
keying
■ UL 94 V-0 rated materials
■ Integrated terminal position
assurance
■ Fully sealed and
submersible IP67 rating
■ Available in vertical or
right-angle
■ Contains integrated PCB
retention feature
■ IEC IP 67 rated
