ASC80937 RC8T3.1 Manual

14

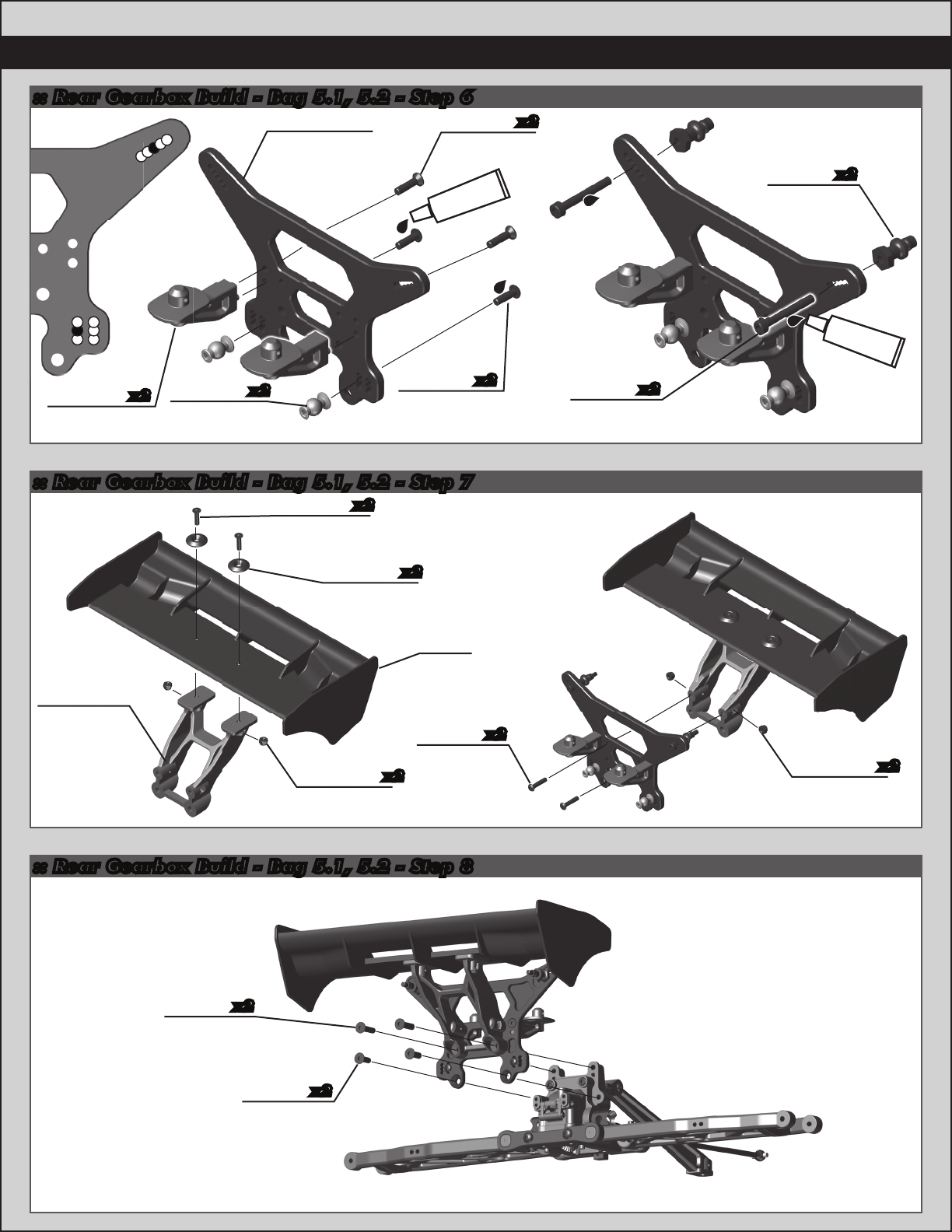

:: Rear Gearbox Build - Bag 5.1, 5.2 - Step 7
:: Rear Gearbox Build - Bag 5.1, 5.2 - Step 8
:: Rear Gearbox Build - Bag 5.1, 5.2 - Step 6
81108
Wing
Mount,
Low
25203
3x12mm
FHCS
92100
Wing
Mount
Button
81106
Wing
25215
M3 Locknut,
Black
25215
M3 Locknut,
Black
x2
x2
x2
x2
25187
3x14mm
BHCS
89214
4x12mm
FHCS
81263
4x16mm
FHCS
x2
x2
x2
81049
Upper Link
Mount
25211
3x10mm
BHCS
25203
3x12mm
FHCS
x2
x2
x2
89225
3x24mm
SHCS
81196
Shock
Bushing
x2
x2
#1596
thread lock
#1596
thread lock
81323
Body Post,
Rear
x2
1 4
2 5
3 6
2
1
3
4
5
Kit Setup: 81313
RC8T3 Shock
Tower, Rear
(not included)
(not included)
