ASC80937 RC8T3.1 Manual

15

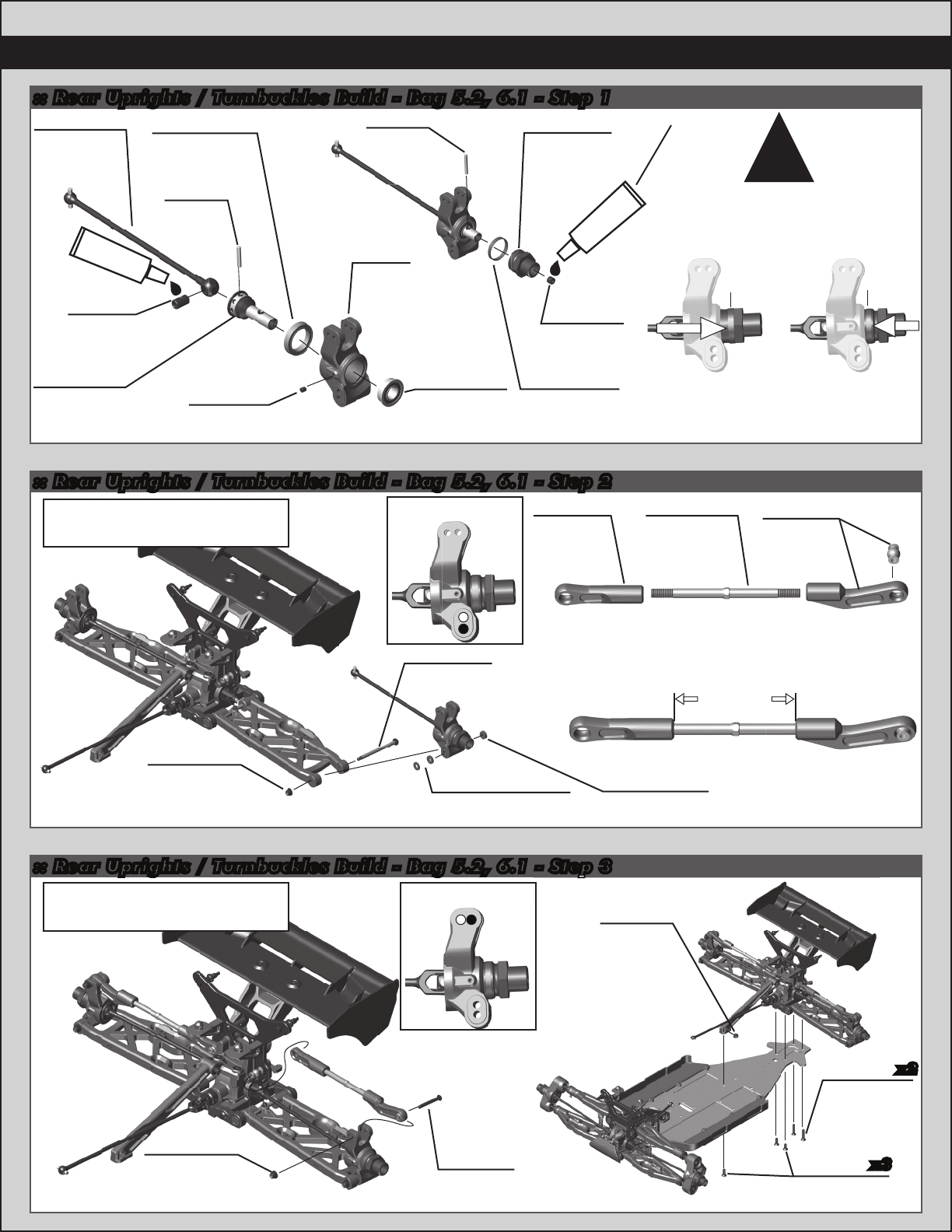

:: Rear Uprights / Turnbuckles Build - Bag 5.2, 6.1 - Step 1
:: Rear Uprights / Turnbuckles Build - Bag 5.2, 6.1 - Step 2
:: Rear Uprights / Turnbuckles Build - Bag 5.2, 6.1 - Step 3
81094
Rod End,
5mm
81094
Rod End,
5mm
81321
Steel
Turnbuckle,
5 x 80mm
Rear Hub Turnbuckle
57.5”mm (2.26”)
Clamp
Clamp
!
Slide the Hex Drive Clamp PAST
the groove on the 17mm Hex Drive
when installing onto the
CVA Drive Shaft.
Once the Wheel Hex Pin and 5x4mm
Set Screw has been installed, slide
the Hex Drive Clamp IN the
groove on the 17mm Hex Drive.
- Step 3
- Step 3
89204
3x24mm
BHCS
Kit Setup:
Mount the rear camber link in
the outside hole on the rear hub.
Kit Setup:
89216
M4
Locknut,
Black
81264
4x20mm
FHCS
89214
4x12mm
FHCS
x3
x2
25612
M3 Locknut
with flange,
Black
Kit Setup:
Mount the rear hub to the rear
arm in the lower hole.
Kit Setup:
81075
Rear Hub Shim,
1.0mm & 1.5mm
81075
Rear Hub
Shim, 2.5mm
81076
Hub Hinge
Pin
25612
M3 Locknut
with flange,
Black
(not included)
25225
3x3mm
Set Screw
89096
Wheel
Hex Pin
81319
Hex Drive,
17mm
Offset
(Blue)
89221
5x4mm
Set Screw
81319
Hex Drive
Clip, 17mm
81075
Rear
Hub
#1596
thread lock
#6588
black grease
81328
CVA
Coupler
Pin
81328
CVA
Coupler
81331
CVA Drive
Shaft
(133mm)
81326
CVA Axle,
Steel
91565
8x16x5mm
Bearing,
Flanged
91566
15x21x4mm
Bearing
