ASC80937 RC8T3.1 Manual

17

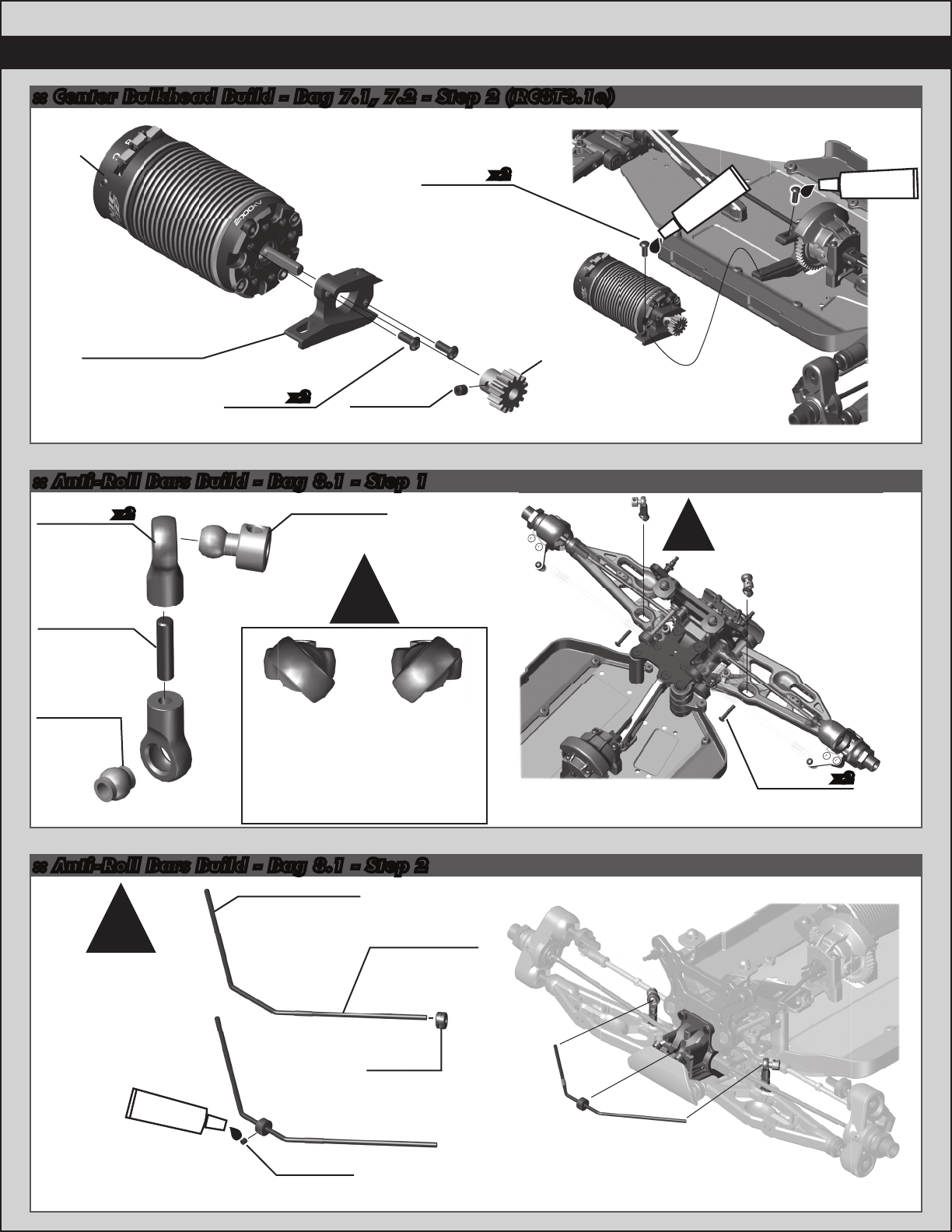

:: Center Bulkhead Build - Bag 7.1, 7.2 - Step 2 (RC8T3.1e)
Motor
not
included!
Motor
pinion not
included!
31532
3x8mm
BHCS
25224
4x4mm
Set Screw
81300
RC8B3e Motor
Mount Slide
x2
89206
4x10mm
BHCS
x2
#1596
thread lock
#1596
thread lock
(not included)
:: Anti-Roll Bars Build - Bag 8.1 - Step 1
81150
Anti-Roll
Bar Pivot
81150
Anti-Roll
Bar Drop
Link
81150
Rod End
Ball
81258
3x12mm
Set Screw
x2
Left Side Right Side
Anti-Roll Bar Pivots:
Tighten the Anti-Roll Bar
Rod Ends completely, then
offset the Anti-Roll bar rod
ends as seen above
(approximately 45 degrees).
!
89203
3x16mm
BHCS
x2
Steering Turnbuckles and
upper arms removed for
view clarity.
!
:: Anti-Roll Bars Build - Bag 8.1 - Step 2
Center the Anti-Roll
Bar Collet on the
Anti-Roll Bar, then
tighten the (#25225)
3x3mm set screw.
!
#1596
thread lock
25225
3x3mm
Set Screw
81150
Anti-Roll
Bar
Collet
81130
(Front)
Anti-Roll Bar,
Black 2.3mm
81140
(Rear)
Anti-Roll Bar,
Blue 2.7mm
Build front
and rear
Anti-Roll Bars
(not included)
