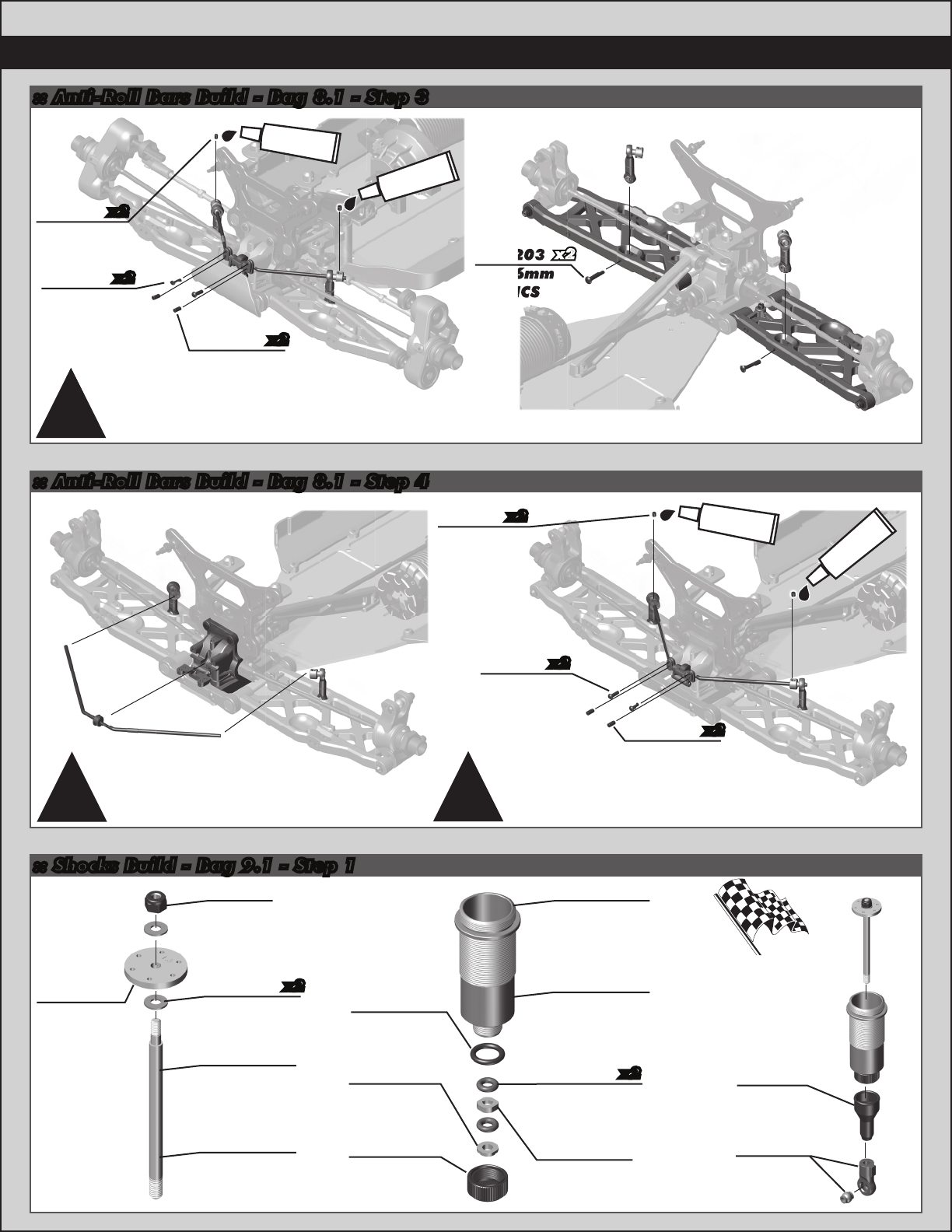

:: Anti-Roll Bars Build - Bag 8.1 - Step 3
Tighten #81257 set screws
just enough to still allow the
anti-roll bar to move freely.
!
89203
3x16mm
BHCS
x2
89203
3x16mm
BHCS
x2
x2
31521
2.5x8mm
BHCS
25225
3x3mm
Set Screw
x2
x2
81257
3x6mm
Set Screw
x2
#1596
thread lock
#1596
thread lock
(not included)
:: Shocks Build - Bag 9.1 - Step 1
81194
Shock
Rod End
and Ball
81191
Shock
Boots
Racer’s Tip:
Use shock fluid
or green slime
(#1105) to lube
the O-Rings before
installation!
(not included)
81186
Shock
O-Ring
81185
O-Ring Hat
Bushing
81188
Shock Body
Seal
Retainer
81200
Shock
Piston
(8x1.2)
x2
81172
Shock Shaft,
33.5mm
(Front)
81185
O-Ring
Spacer
81160
Shock Body,
30.5mm
(Front)
81161
Shock Body,
39.5mm
(Rear)
81185
Shock Body
O-Ring
81173
Shock Shaft,
42.5mm
(Rear)
89278
2.5mm
Washer
89215
Shock
Piston
Locknut
x2
:: Anti-Roll Bars Build - Bag 8.1 - Step 4
25225
3x3mm
Set Screw
31521
2.5x8mm
BHCS
x2
x2
81257
3x6mm
Set Screw
x2
Tighten #81257 set screws
just enough to still allow the
anti-roll bar to move freely.
!
!
#1596
thread lock
#1596
thread lock
Rear Hub Turnbuckles
removed for view clarity.
