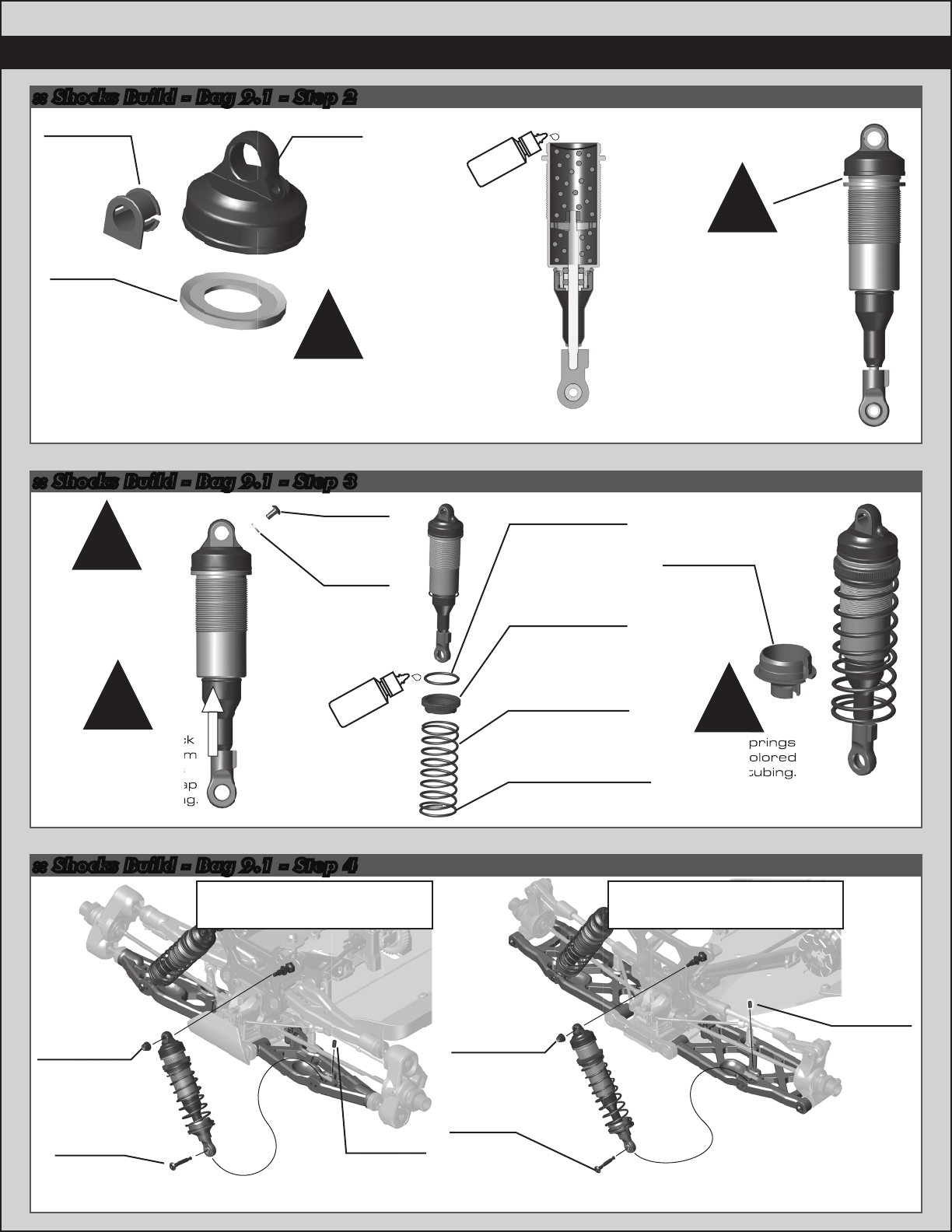

:: Shocks Build - Bag 9.1 - Step 2
shock
fluid
Front Shock Fluid:
40wt #5423
Rear Shock Fluid:
35wt #5429
When installing the
shock cap seal, make
sure it is correctly
seated within the
shock cap as shown.
!
81181
Shock Cap
Insert
81184
Seal,
Bleeder
Cap
81179
Bleeder
Cap
:: Shocks Build - Bag 9.1 - Step 3
Leave a gap when
installing the shock cap.
!
Some residual shock
fluid may appear from
your first few runs
around the shock cap
as a result of bleeding.
Compress shock
shaft fully.
Let shock fluid
bleed from the
bleeder hole.
!
!
Some residual shock
fluid may appear from
your first few runs
around the shock cap
as a result of bleeding.
91492
2x4mm
BHCS
91492
Gasket
:: Shocks Build - Bag 9.1 - Step 4
The shock springs
come with colored
heat shrink tubing.
Install them on the
springs for easy
identification.
!
The shock springs
come with colored
heat shrink tubing.
81194
Spring
Cup,
20mm
81221
Spring
Collar O-Ring,
20mm
81221
Spring
Collar, 20mm
81225
Front Spring V2,
Blue (5.55lb/in)
81231
Rear Spring V2,
Blue (4.30lb/in)
shock
fluid
81197
Shock
Pin
81197
Shock
Pin
81257
3x6mm
Set Screw
81257
3x6mm
Set Screw
Kit Setup:
Mount the front shock in the
outside hole on the front arm.
Kit Setup:
Mount the rear shock in the
inside hole on the rear arm.
25612
M3 Locknut
with flange,
Black
25612
M3 Locknut
with flange,
Black
RC8T3.1 Nitro Build
continues on page 22
