ASC80937 RC8T3.1 Manual

21

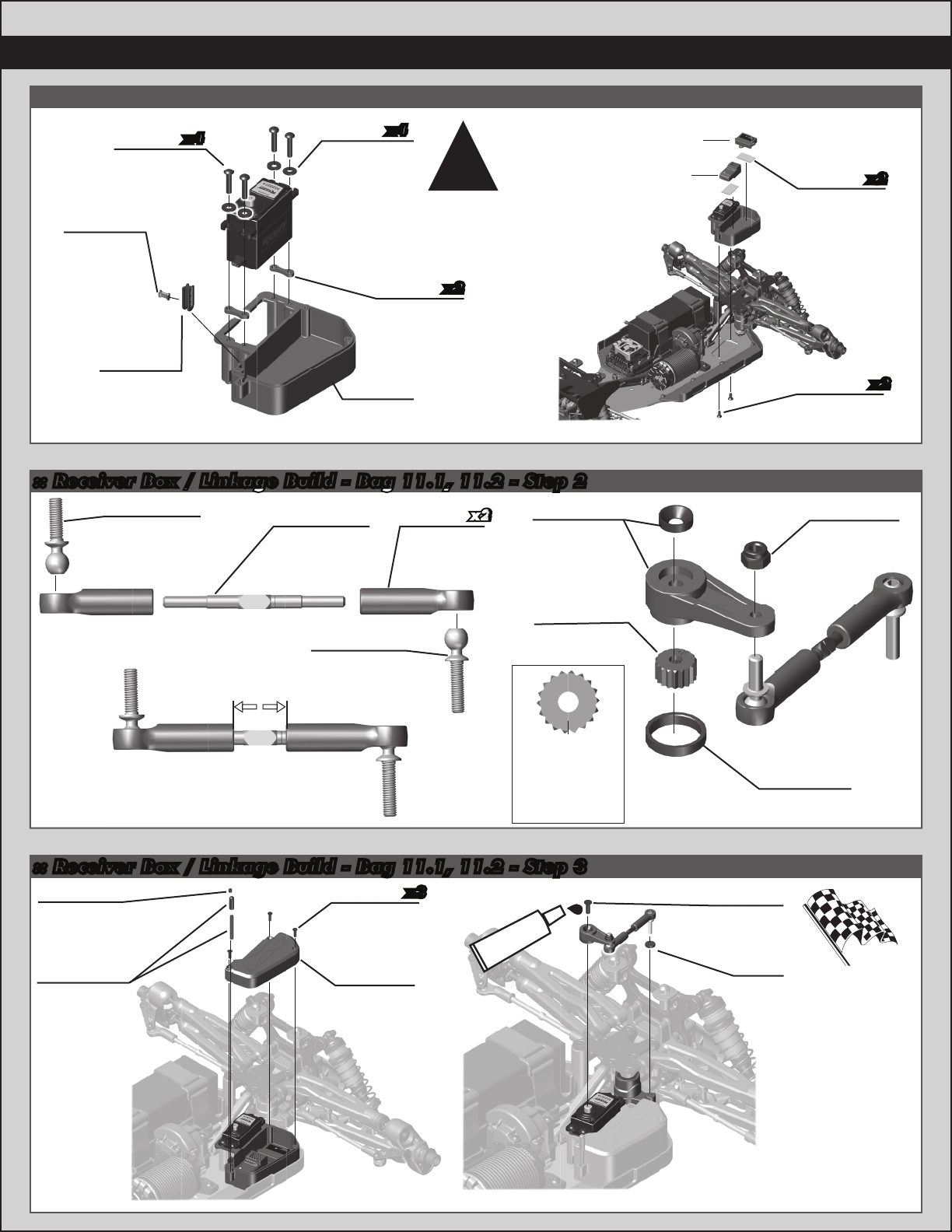

:: Receiver Box / Linkage Build - Bag 11.1, 11.2 - Step 2
81250
Servo Horn
Insert
81250
Servo Horn
Large Ring
81250
Servo Horn
(Steering)
and Cone
Washer
25215
M3 Locknut,
Black
A - Airtronics
F - Futaba
H - Hitec
J - JR/KO
Printed here
x2
Receiver Box / Linkage
Receiver Box / Linkage
Bag
Bag
11.1, 11.211.1, 11.2
x2
x2
Steering Servo Turnbuckle
11.50mm (0.45”)
91048
HD Ball
Stud, 8mm
91050
HD Ball
Stud, 12mm
1401
33mm
Turnbuckle
91453
HD Ball
Cup
9907
Receiver
Box
Grommet
81303
Receiver
Box
9907
Grommet
Plug
25187
3x14mm
BHCS
89218
3x8mm
Washer
89023
Servo
Spacer
x4
x4
x2
Servo not
included!
When spacing your
servos, make sure the
servo does not touch
the chassis when
installed.
!
81262
4x10mm
FHCS
6727
Servo
Tape
x2
x2
Transponder
not included!
Receiver
not included!
:: Receiver Box / Linkage Build - Bag 11.1, 11.2 - Step 3
#1596
thread lock
Racer’s Tip:
Center servo
before horn
installation!
31386
2mm
Shim
25201
3x8mm
FHCS
31448
2.5x8mm
FHCS
81303
Receiver
Box Lid
x3
6338
Antenna
Tube and
Cap
25225
3x3mm
Set Screw
(not included)
RC8T3.1e
Build End
