ASC80937 RC8T3.1 Manual

23

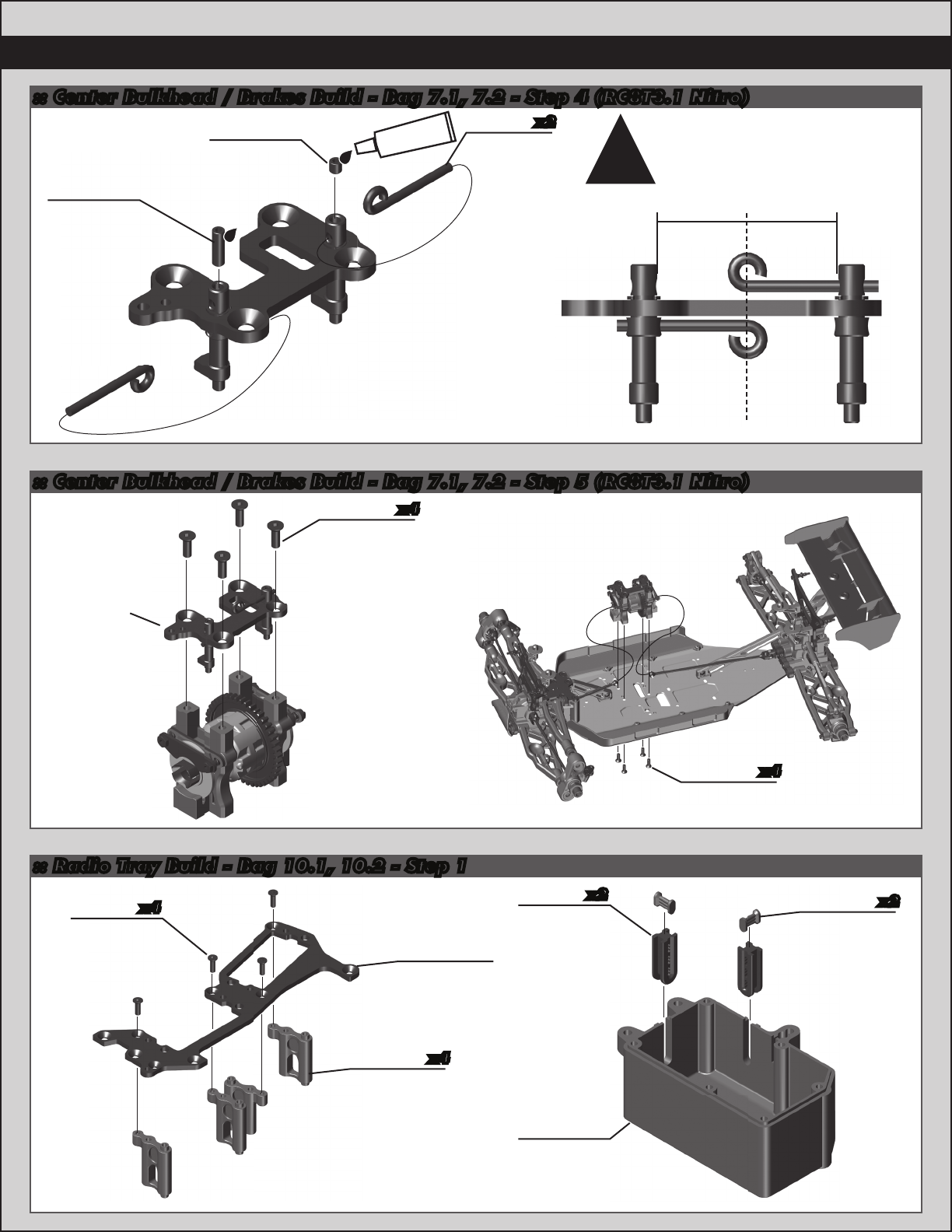

:: Center Bulkhead / Brakes Build - Bag 7.1, 7.2 - Step 4 (RC8T3.1 Nitro)
25225
3x3mm
Set Screw,
rear
4671
3x10mm
Set Screw,
front
81042
Brake
Lever
x2
#1596
thread lock
Center brake levers
between the brake cams.
!
(not included)
:: Center Bulkhead / Brakes Build - Bag 7.1, 7.2 - Step 5 (RC8T3.1 Nitro)
89214
4x12mm
FHCS
x4
89214
4x12mm
FHCS
x4
Towards
Front of
Vehicle
:: Radio Tray Build - Bag 10.1, 10.2 - Step 1
9907
Receiver
Box
Grommet
81102
Receiver
Box
31448
2.5x8mm
FHCS
x2
x4
81102
Radio
Tray Post
9907
Grommet
Plug
81100
Radio
Tray
x4
x2
