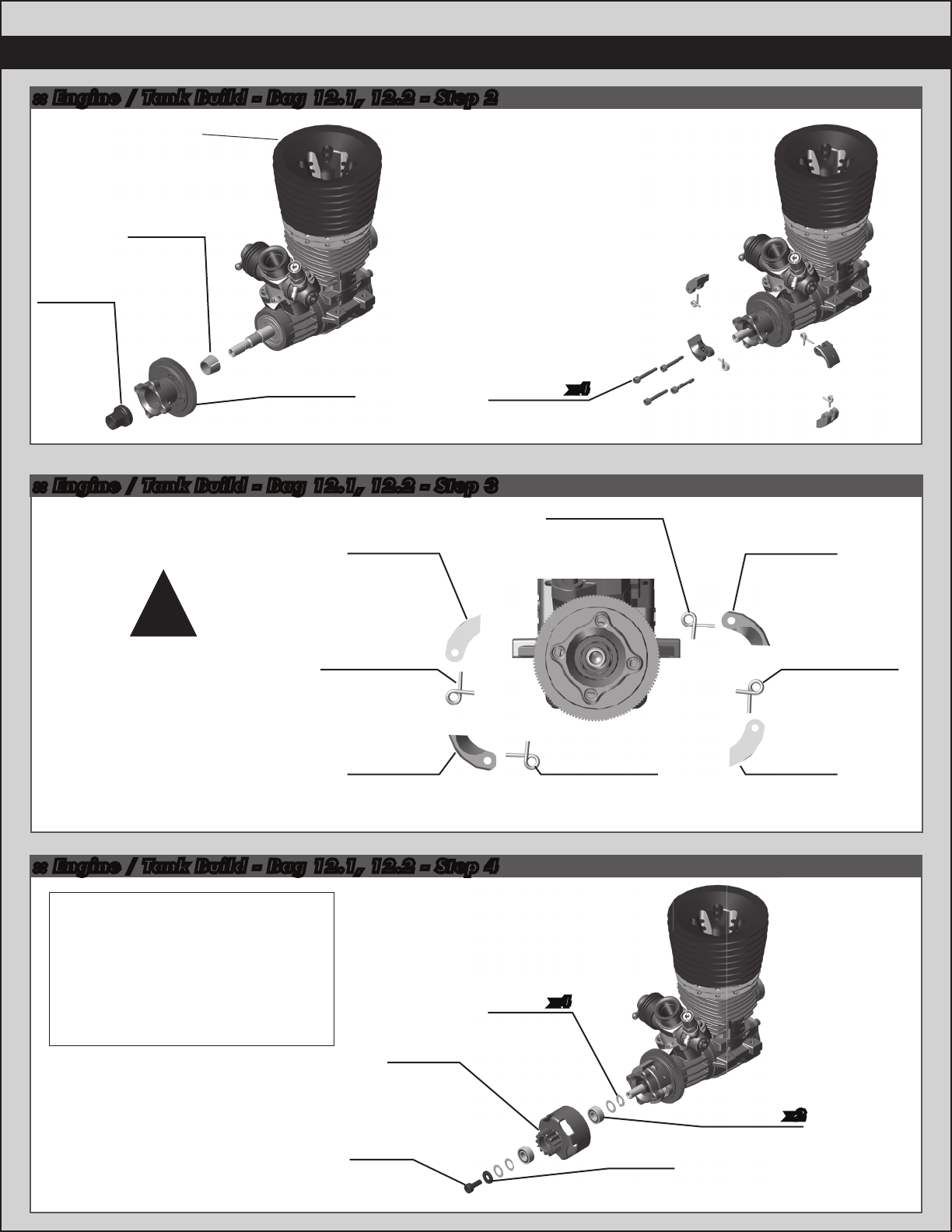

:: Engine / Tank Build - Bag 12.1, 12.2 - Step 2
Engine
not included!
81373
Clutch
Shoe Pins
x4
81370
Flywheel,
4-Shoe
81371
Flywheel
Collet
81372
Flywheel
Nut
:: Engine / Tank Build - Bag 12.1, 12.2 - Step 4
Clutch shimming instructions:
If assembly does not spin freely, use
#89148 (small clutch shim included in
kit) on screw to increase end play.
If crankcase extends past clutch
bearing, use#89218 (large clutch
shim included in kit) to reduce end play.
Recommended Clutch Bell
Axial Play = 0.2 - 0.5mm
89148
Clutch
Shims
81374
Clutch
Bell, 13T
89223
3x8mm
SHCS
x4
x2
89218
3x8mm
Washer
91560
Bearing,
5x10x4mm
:: Engine / Tank Build - Bag 12.1, 12.2 - Step 3
81402
Clutch
Shoe,
Composite
81375
Clutch
Shoe,
Aluminum
81402
Clutch
Shoe,
Composite
81366
Clutch Shoe
Spring, Green,
0.95mm
81365
Clutch Shoe
Spring, Black,
0.90mm
81365
Clutch Shoe
Spring, Black,
0.90mm
81366
Clutch Shoe
Spring, Green,
0.95mm
81375
Clutch
Shoe,
Aluminum
Clutch Shoe / Spring Installation Order:
Short end of clutch shoe spring
installed into flywheel.
Long end of clutch shoe spring
installed into clutch shoe.
!
