Installation Instruction

1.0

Ceiling

GP I :ENERAL RODUCT NFORMATION

These fixtures are intended to be installed utilizing NEC compliant

junction boxes.

This product is suitable for damp locations.

This product may be dimmed with a low-voltage electronic dimmer.

This instruction shows a typical installation.

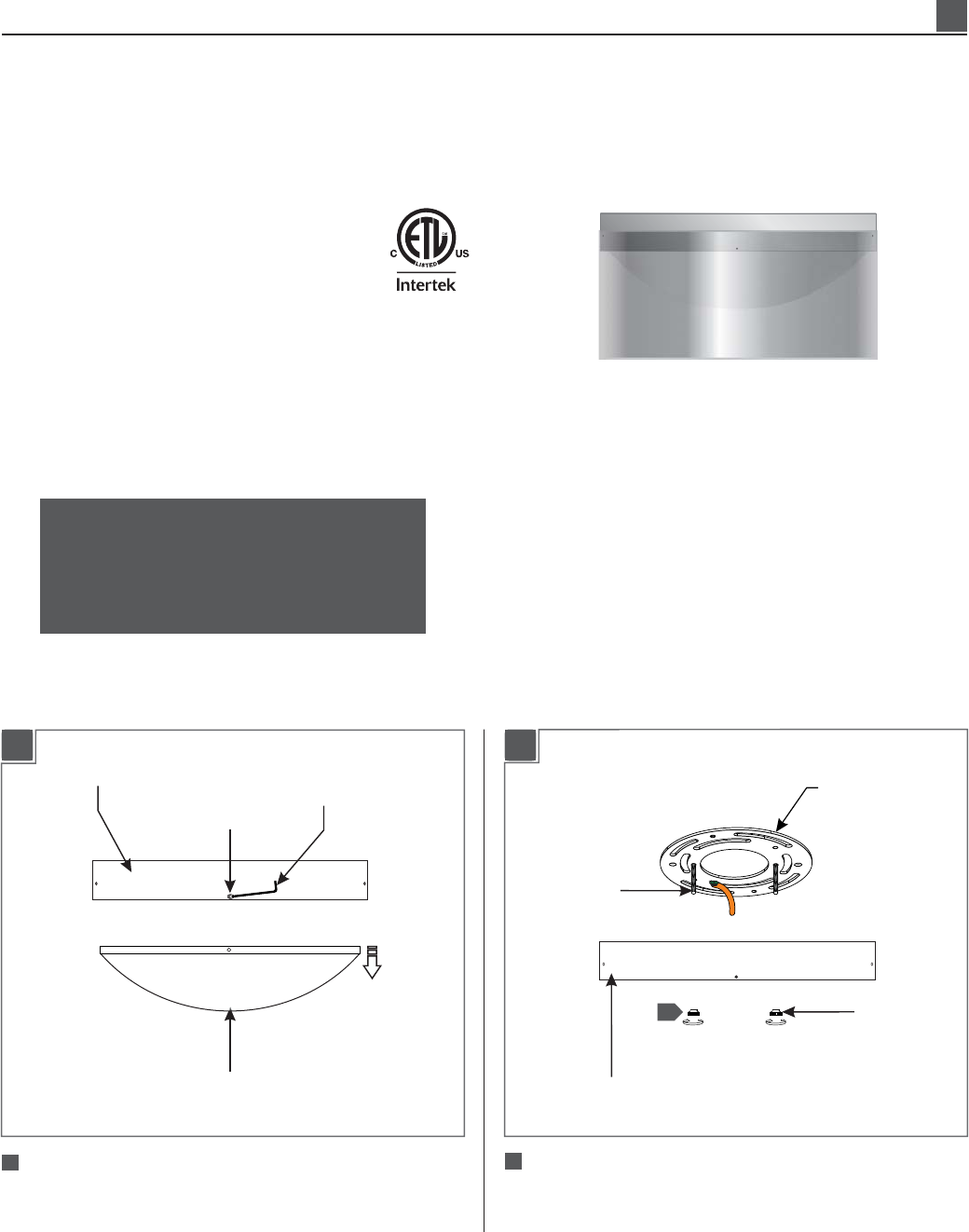

Remove the mounting plate from the fixture by

unscrewing the two knurled nuts from the two

threaded studs.

KNURLED NUT

THREADED

STUD

MOUNTING

PLATE

FIXTURE

Install the Mounting Plate

DIFFUSER

Remove the three small set screws and separate the

diffuser from the fixture using the provided small Allen

wrench.

FIXTURE

CAUTION - RISK OF FIRE

This product must be installed in accordance with

the applicable installation code by a person familiar

with the construction and operation of the product

and the hazards involved.

Use minimum 90°c supply conductors.

SMALL ALLEN

WRENCH

SMALL

SET SCREW

Ceiling (LED)

Installation Instructions for

PAGE 1
Installation Instructions for Ceiling (LED) 1.0 Ceiling GENERAL PRODUCT INFORMATION: These fixtures are intended to be installed utilizing NEC compliant junction boxes. This product is suitable for damp locations. This product may be dimmed with a low-voltage electronic dimmer. This instruction shows a typical installation.
PAGE 2
1C 2B ELECTRICAL BOX MOUNTING PLATE FIXTURE MOUNTING PLATE 5 5 KNURLED NUT 3 THREADED STUD 3 #8-32 SCREW #8-32 SCREW 4 Properly place all wires and wire nut connections into 2 the fixture. 3 Mount the mounting plate to the electrical box with 5 Mount the fixture onto the threaded studs on the 2 the two #8-32 screws. mounting plate and secure it by tightening the two knurled nuts.
PAGE 3
B LARGE ALLEN WRENCH FIXTURE LARGE SET SCREW GLASS SHADE 2 Align the glass shade with the fixture and install the three large set screws using the provided large Allen wrench.
