Installation Instruction

ManualsBrandsTech Lighting ManualsFlush Mounts1 - Light 8.5" Simple Drum Flush Mount
1234
2

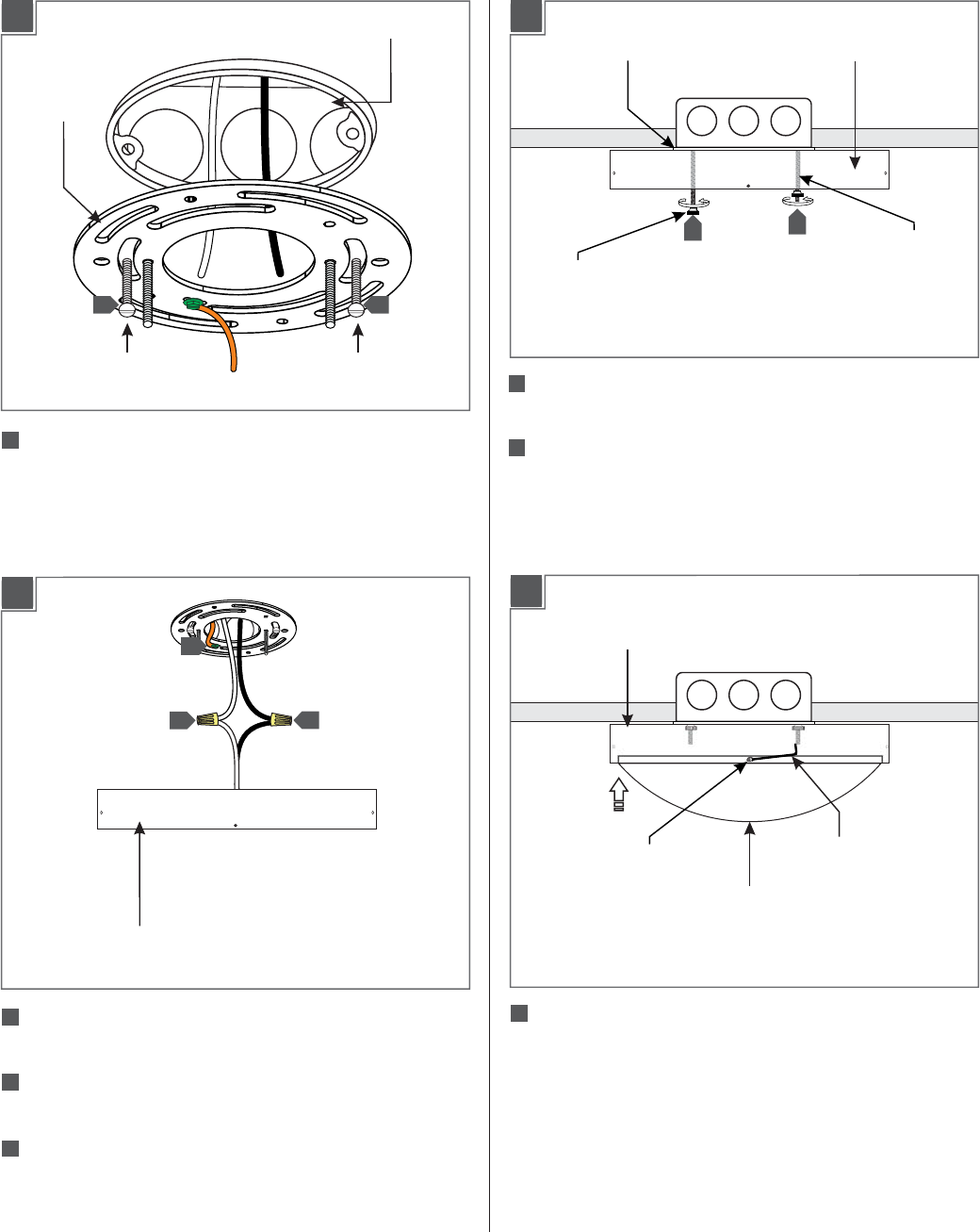

Connect the mounting plate ground wire to a suitable
ground in accordance with local electrical codes.
Connect the white driver wire to the neutral power line
wire with a wire nut.
Connect the black driver wire to the hot power line wire
with a wire nut.
2A
1
2
3
1
2
3
Install the Fixture
2B
24
Properly place all wires and wire nut connections into
the fixture.
Mount the fixture onto the threaded studs on the
mounting plate and secure it by tightening the two
knurled nuts.
KNURLED NUT
MOUNTING PLATE
25
FIXTURE
THREADED
STUD
3
1C
MOUNTING
PLATE
Mount the mounting plate to the electrical box with
the two #8-32 screws.
#8-32 SCREW
3
#8-32 SCREW
ELECTRICAL BOX
3
3A
2
Align the diffuser with the fixture and install the three
small set screws using the provided small Allen wrench.
1
FIXTURE
Install the Diffuser and Shade
FIXTURE
DIFFUSER
SMALL ALLEN
WRENCH
SMALL
SET SCREW
5
5
