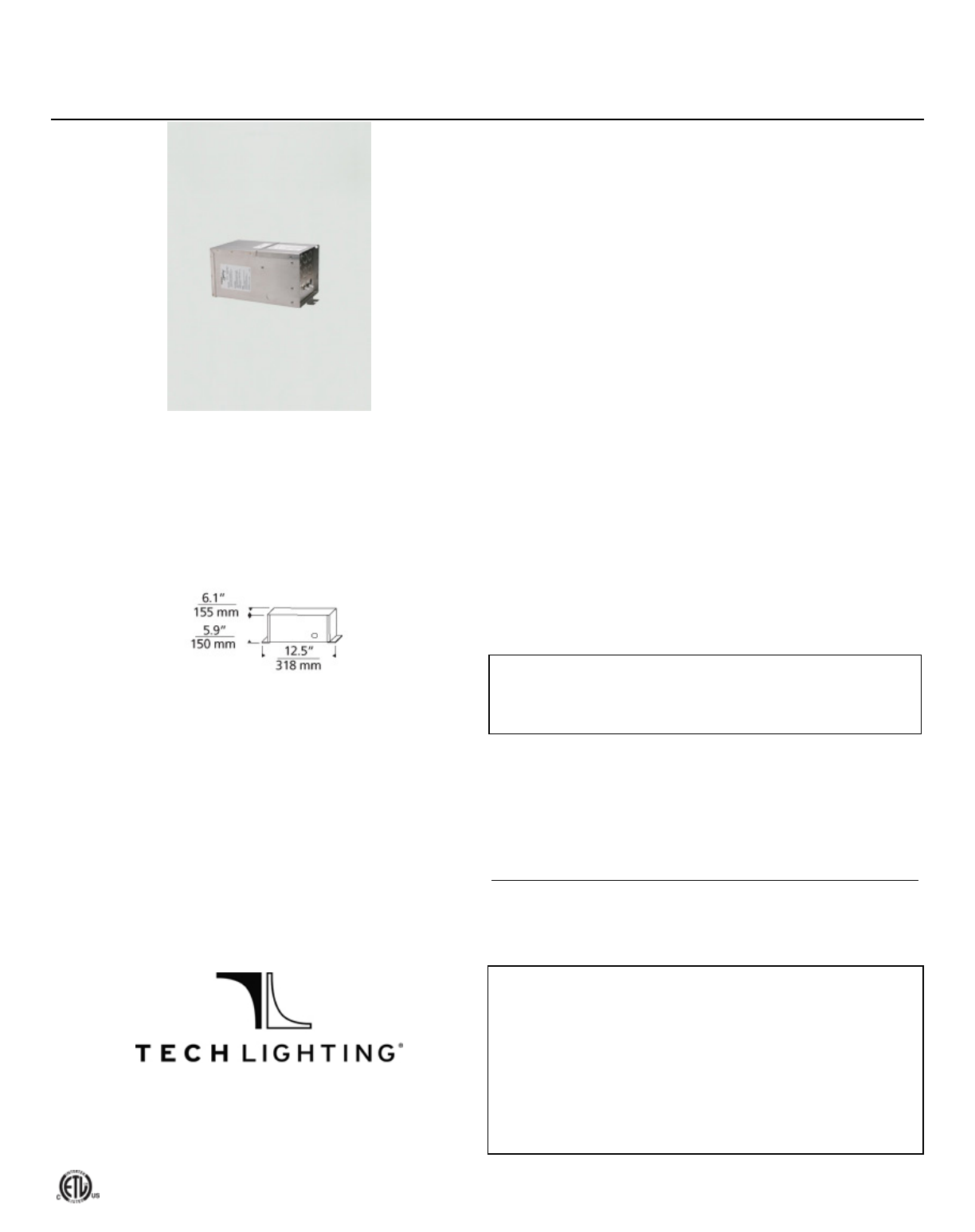

DESCRIPTION
This remote magnetic transformer converts standard 120 or 277 volt line-
voltage to 12 volts, providing the necessary voltage for powering a Two-
Circuit MonoRail low-voltage lighting system. Each transformer includes
fast-acting secondary circuit breakers that will safely turn the system off
should a short occur. Once the short has been removed the breakers can
be reset. Transformer powers lamp totaling up to 600 watts.
INSTALLATION
This transformer must be installed in a remote but accessible location
(such as above the ceiling or in a closet). To simplify installation the
transformer should be located no more than 20' from the run or power
feed. The electrician will need to supply the proper gauge conductor from
the transformer to the power feed location based on distance (see Low-
Voltage Wire Size Table, below).
DIMMING
Transformer is equipped with two 120 or 277 volt input lines, and is
dimmable with two 600 watt low-voltage magnetic dimmers. Each dimmer
can control up to 300 watts. Dimmers are placed on the line side of the
transformer (consult dimmer manufacturer for specifics). Dimming a
transformer may create a buzzing sound, which may be objectionable in
some applications. Debuzzing dimming coils can be purchased to reduce
the audible noise (sold separately).
OTHER INFORMATION
12 volt output transformers require the use of 12 volt lamps. Use with a
single-feed Two-Circuit canopy or other power feed option (sold
separately).
WEIGHT
24.2lb / 10.98kg
ORDERING INFORMATION
LOW-VOLTAGE WIRE SIZE TABLE
Use to determine the correct THHN wire size for a recommended 3 percent drop in voltage at the specified wattage. The
length shown is the length of wire from the transformer to the power feed.
12 Volt
5 ft.
6
-
15 ft.
16
-
20 ft.
21
-
40 ft.
41
-
60 ft.
61
-
90 ft.
300 Watt
#10 GA
#6 GA
#4 GA
#1 GA
1/0
3/0
700AT2X300T
VOLTAGE
277
©2011 Tech Lighting, L.L.C. All Rights Reserved. The "Tech Lighting" graphic is a registered trademark of Tech Lighting, L.L.C.
Tech Lighting reserves the right to change specifications for product improvements without notification.
7400 Linder Avenue
Skokie, Illinois 60077
www.techlighting.com
T 847.410.4400
F 847.410.4500
700AT2X300T ____
FIXTURE TYPE:
________________________________________________
JOB NAME:
________________________________________________
NOTES:
________________________________________________
________________________________________________
________________________________________________
TWO-CIRCUIT MONORAIL
Remote Transformer-2x300W Mag 12v
