Installation Sheet

1.0
Installation Instructions for
Viaggio Ceiling
700FMVGO
1
920FMVIAGGIO
2
1
Remove the mounting plate from the fixture base by unscrewing the Allen screws around the base using the provided Allen wrench.
Install the mounting plate to the junction box with the two #8-32 screws provided.
Connect the mounting plate ground wire to a suitable ground in accordance with local electrical codes.
Connect the white fixture wire to the neutral power line.
Connect the black fixture wire to the hot power line.
Properly place all wires and wire nut connections into the fixture base, then mount the fixture base back onto the mounting plate and
secure it by installing the Allen screws (reversal of step 1).
Install the lamp by carefully inserting the lamp pins into the holes on the socket. Refer to the label on the socket for Max Wattage
Information.
Install the shade by carefully screwing it onto the threads on the socket. Make sure the shade is secure before releasing. Repeat steps 7
and 8 for remaining sockets.
1A

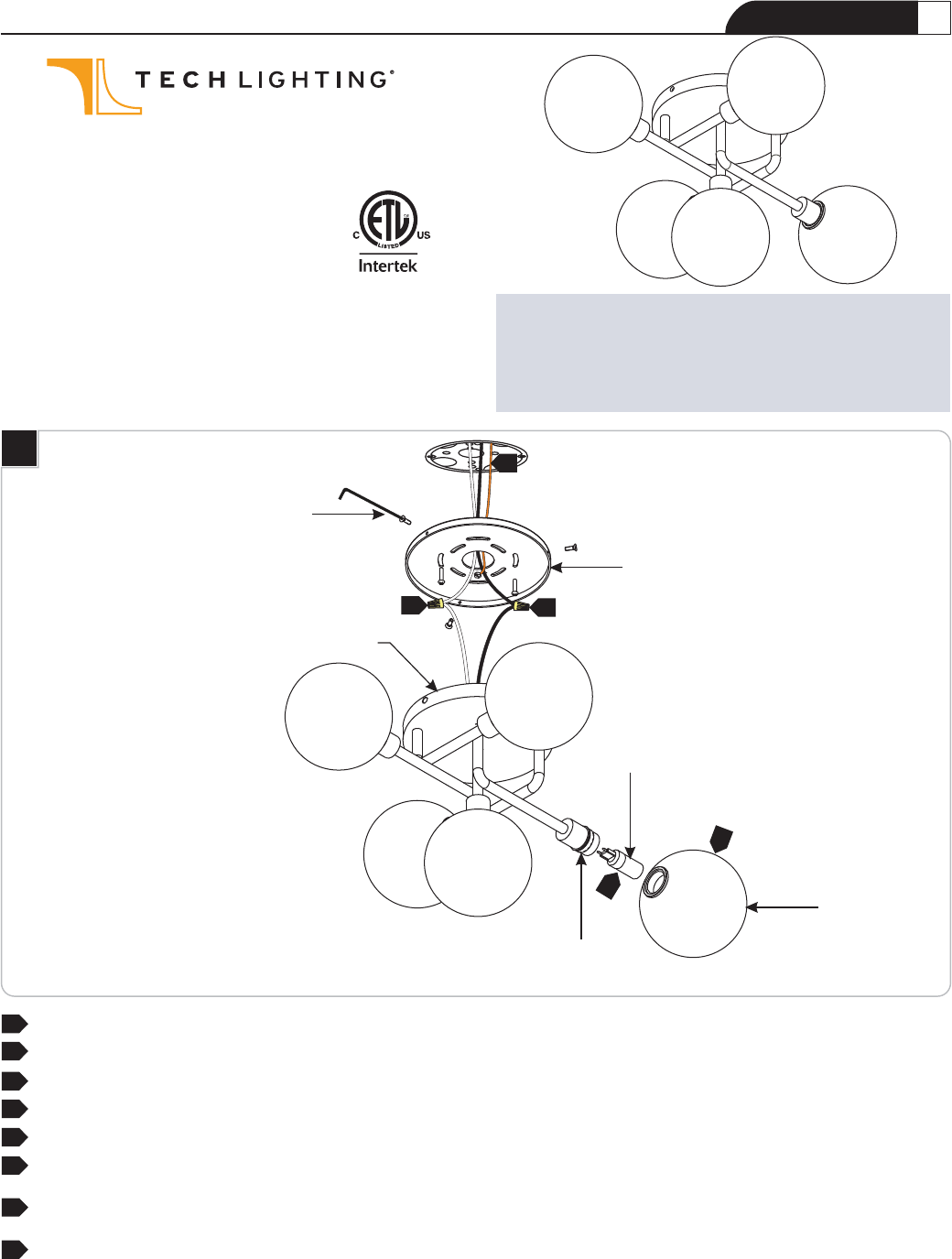

Install the Fixture
4
3
6
5
GENERAL PRODUCT INFORMATION:
These fixtures are intended to be installed
utilizing NEC compliant junction boxes.
This product is suitable for damp locations.
This product may be dimmed with a low-voltage electronic
dimmer.
This instruction shows a typical installation.
CEILING COLLECTION
3
ALLEN SCREW & WRENCH
SOCKET
CAUTION RISK OF FIRE-
This product must be installed in accordance with the applicable
installation code by a person familiar with the construction and
operation of the product and the hazards involved.
Use minimum 90°c supply conductors.
