Installation Guide

1.2

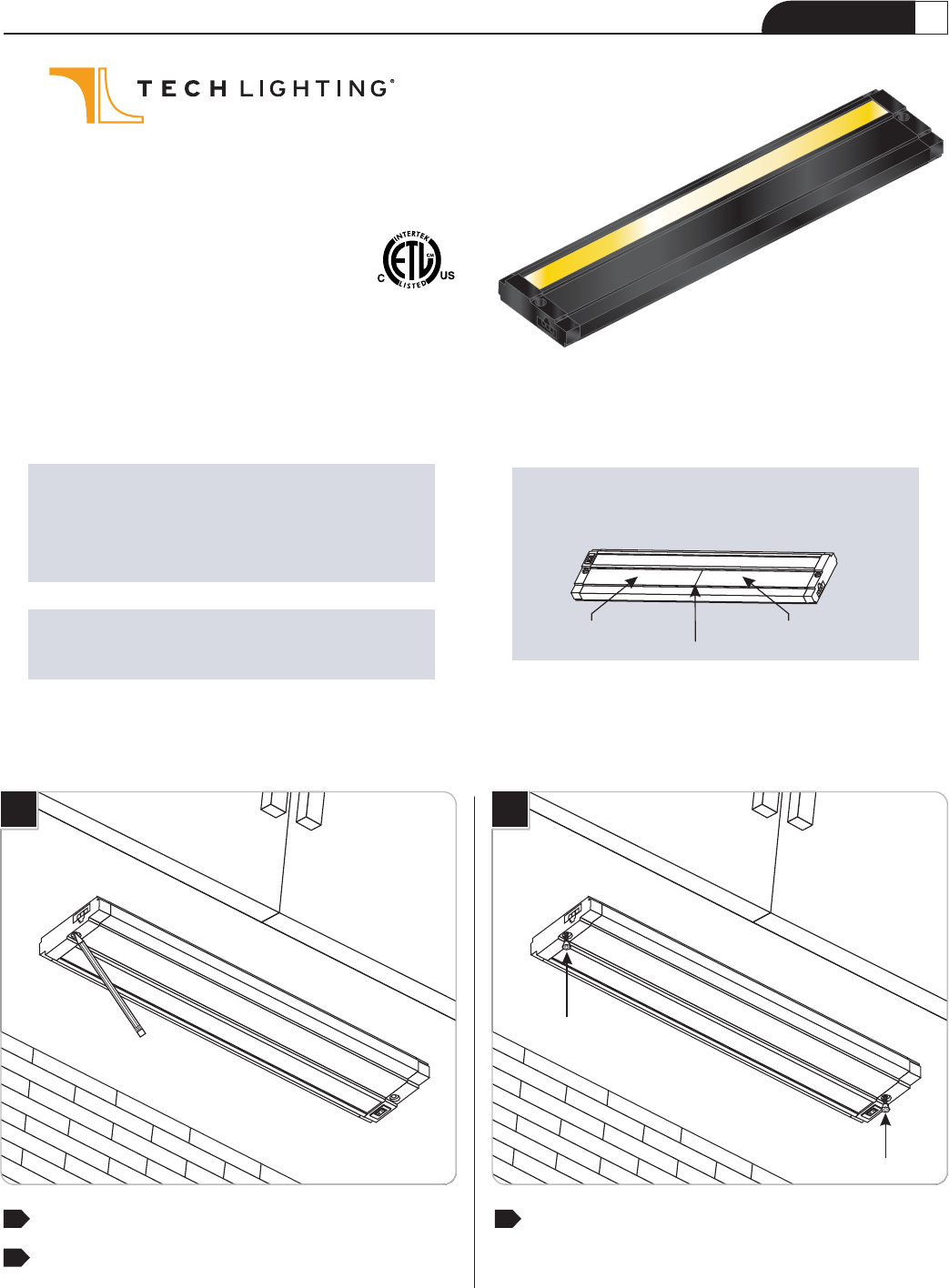

Installation Instructions for

Unilume LED Undercabinet

700UCF_-LED

920UNDCAB

UNDER CABINET

Install the Fixture Base

Place and level the unit in the desired position.

Mark the two points under the cabinet through the

mounting holes.

CAUTION—RISK OF FIRE

This product requires installation by a qualified

electrician. Before installing be sure to read all

instructions and DISCONNECT POWER TO THE

ELECTRICAL BOX.

GENERAL PRODUCT INFORMATION:

This product is suitable for damp locations.

This product can be dimmed with a low-voltage electronic dimmer.

This instruction shows a typical installation.

Secure the fixture with the provided mounting screws.

MOUNTING SCREW

NOTE: A string of Undercabinet unit connections from a

single power source cannot exceed a 600 watt limit.

NOTE: The 18”version is composed of 2 remote

phosphor sheets, resulting in a seam where they join.

REMOTE PHOSPHOR #1 REMOTE PHOSPHOR #2

SEAM

PAGE 1
920UNDCAB Installation Instructions for Unilume LED Undercabinet 700UCF_-LED 1.2 UNDER CABINET GENERAL PRODUCT INFORMATION: This product is suitable for damp locations. This product can be dimmed with a low-voltage electronic dimmer. This instruction shows a typical installation. C AUTION — RISK OF FIRE NOTE: The 18” version is composed of 2 remote This product requires installation by a qualified electrician.
PAGE 2
Install the Splice Box (Optional) 2A Jumper Connectors and Plug-In Wall Feed SPLICE BOX COVER 3A SPLICE BOX SCREW Loosen the center screw on the splice box and remove the cover. 1 2B CONDUIT SCREW 3 2 3 FLEXIBLE CONDUIT 4 5 Feed the flexible conduit and the power lines into the splice box. Secure it with the conduit screw. 1 Push the neutral power line wire into the wire connector with the white splice box wires.
PAGE 3
1 3B 2 3C Using the Plug-In Wall Feed, plug the Undercabinet unit directly into a wall outlet. 3 3 Remove the connector cover and use the Jumper Connectors to link multiple Undercabinet units to one another.
PAGE 4
SAVE THESE INSTRUCTIONS! 7400 Linder Ave, Skokie, IL 60077 847.410.4400 www.techlighting.com © 2012 Tech Lighting, L.L.C. All rights reserved. The "Tech Lighting" graphic is a registered trademark of Tech Lighting, L.L.C. Tech Lighting reserves the right to change specifications for product improvements without notification.
