4-10 Operator's Manual LDK 200 Triax Location of Controls and Functions

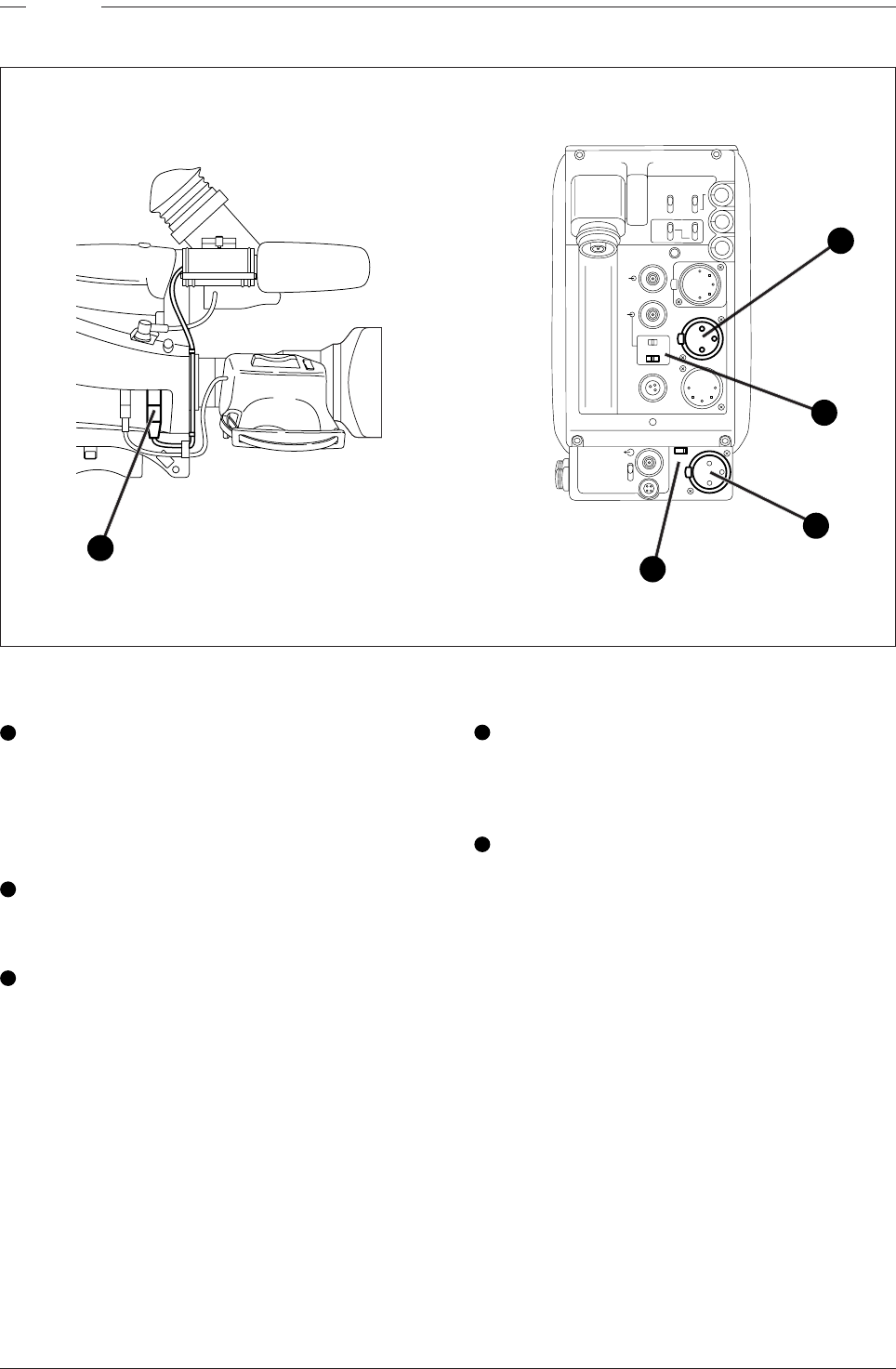

Audio
1
1 Audio microphone connector front
Balanced input connector for a high quality microphone.
A phantom power supply (48V) for the
microphone is provided from this socket. The
gain of this audio channel can also be controlled.
2
2 Audio microphone connector rear
Balanced input connector for a high quality microphone.
3
3 Audio microphone switch
A 3-position switch that selects the audio microphone
connector at the front or the connector at the
rear. The third position selects the rear
connector with a phantom power supply (48V).
4
4 Audio microphone 2 connector rear
Balanced input connector for a second high quality
microphone.
5
5 Microphone 2 phantom power switch
A 2-position switch that selects a phantom power
supply (48V) for the second audio microphone.
Call
Mic
VF
Front Rear 48V
Ext
Scrip
Light
Breaker
Power on
DC in
CVBS (option)
Eng Progr Prod
Eng
Off
Prod
Ext
Mix
Front
Rear
Loc
TP
Mic 2
48V On
12V 1,5A DC Out
Ext 2
Ext 1
1
2
3
4
5
