User's Manual

Overview Of Your New PDP
OWNER'S MANUAL
9
AUDIO INP UT
VIDE O INP UT
S -V IDE O INP UT
C OMP ONE NT V IDE O INP UT
R G B INP UT
R S -232C
R C A P in J ack
R C A P in J ack
P in Did
R C A Pin Jack
15-pin D-sub
9-pin D-s ub
C onnec tors

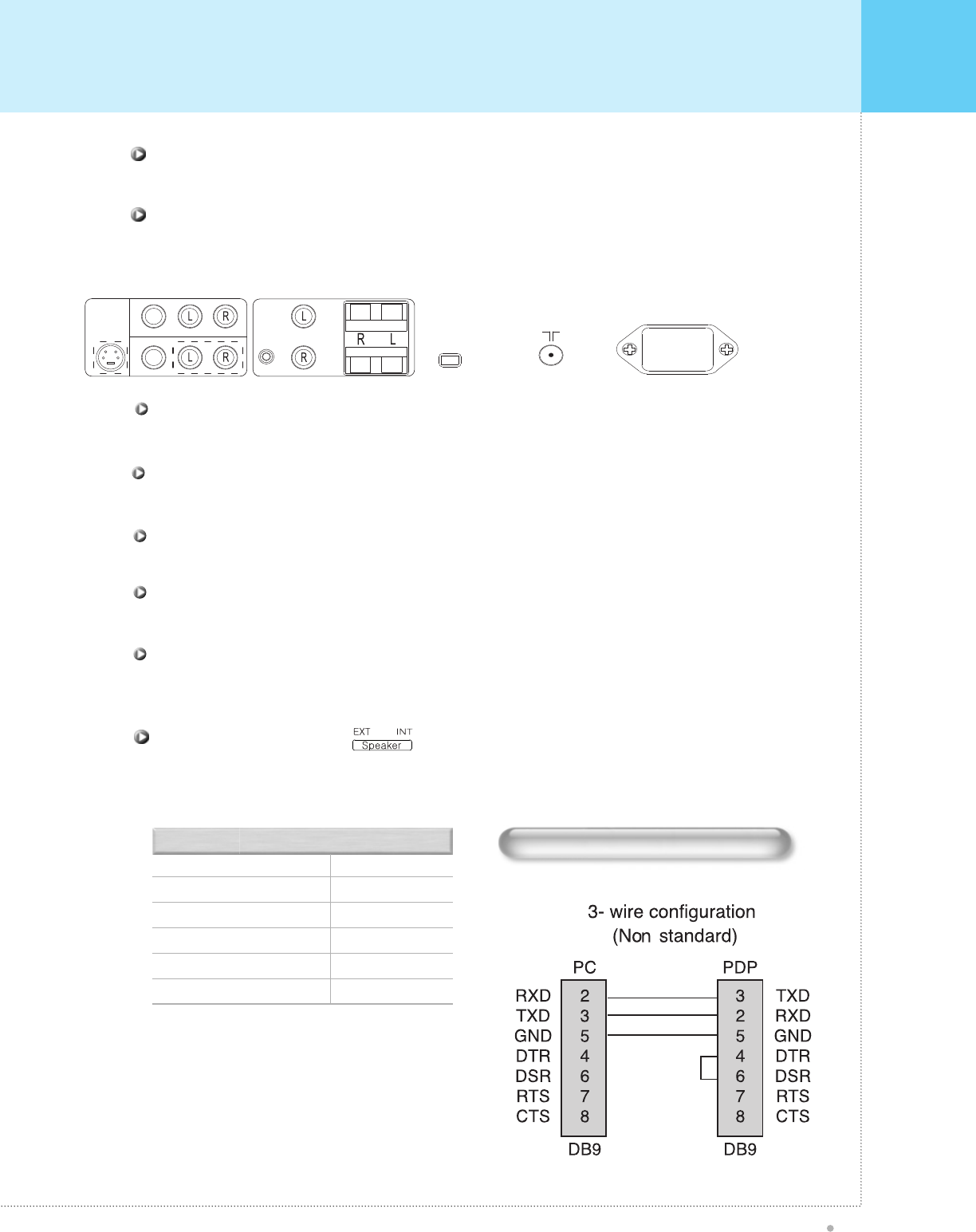

RS-232C Configurations
Cables connecting PC's may vary depending on the
PC types.
•
Connects to a component output terminal of a DVD player.
Component Input(DVD Y,Pb,Pr) 480i
Connects to an antenna cable.
TV Antenna Terminal
Fixed Level Audio signal output to external audio amplifier(optional) or Headphones(Optional).
Audio out / PIP Earphone
Connects to a composite output terminal of VCRs or DVD players or Monitor out.
Composite Input/Output Terminal(VIDEO INPUT, MONITOR OUT)
Firmly insert the accessory power cord as far as it will go into the power input terminal.
Firmly push the power cord plug as far as it will go into the power socket.
AC(POWER) Input Terminal
Connects to a S-Video output terminal of a S-VHS VCRs or DVD players.
S-Video Input Terminal
Slide Switch
Audio out controller to internal or external.
Connects to a component out put terminal of a Progressive DVD player or HD Set-Top Box.
Component Input(DTV Y, Pb, Pr) 480p, 720p, 1080i
COMPOSITE AUDIO
OUT
IN
PIP
EAR P.
EXT. SPEAKERAUDIO OUT
SPEAKER
SWITCH
+
-
+
-
S-VIDEO
CVBS
CVBS
EXT INT
POWER
ANT
VHF / UHF
