Acquire the Sign
al
Setting Up Digital Channels
Use front panel buttons and knobs to set up your instru ment to acquire signals using the digital channels.

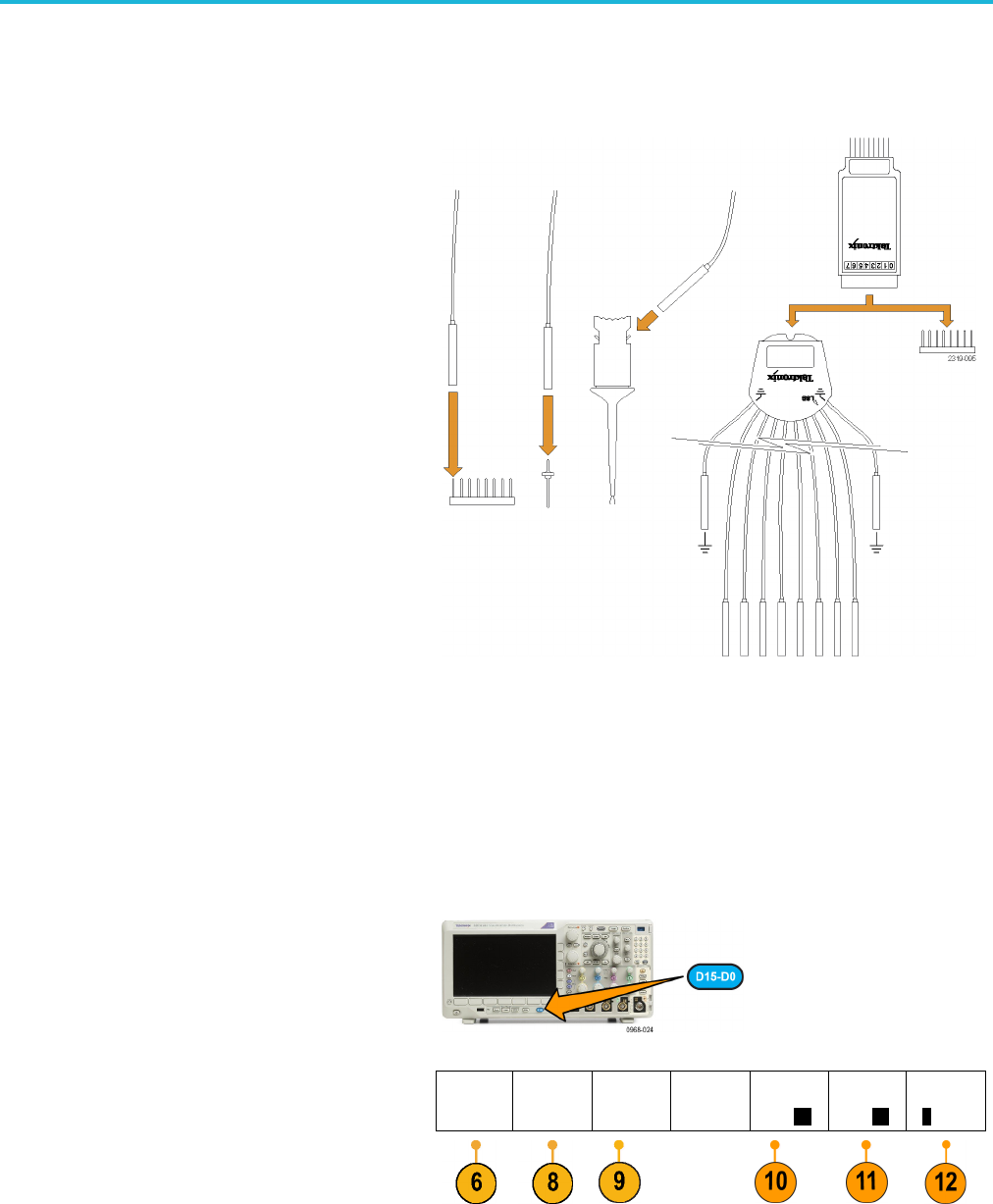

1. Connect the P6
316 16-channel logic probe
to the input signal source.
2. Connect the ground lead or leads to the
circuit ground.
You can connect a separate lead for each
channel or a common ground lead for each
group of 8 wires.
3. If needed, connect the appropriate grabber
for each probe to the probe tip.
4. Connect each probe to the desired circuit
test point.
5. Push D15 - D0 on the front panel to display
the menu.
6. Push D15 - D0 on the lower menu to access
the D15 - D0 On or Off menu.
D15 – D0
On/Off
Thresholds Edit Labels Monitor
On
Off
MagniVu
On Off
Height
S ML
MDO3000 Series Oscilloscopes User Manual 81
