Acquire the Sign
al

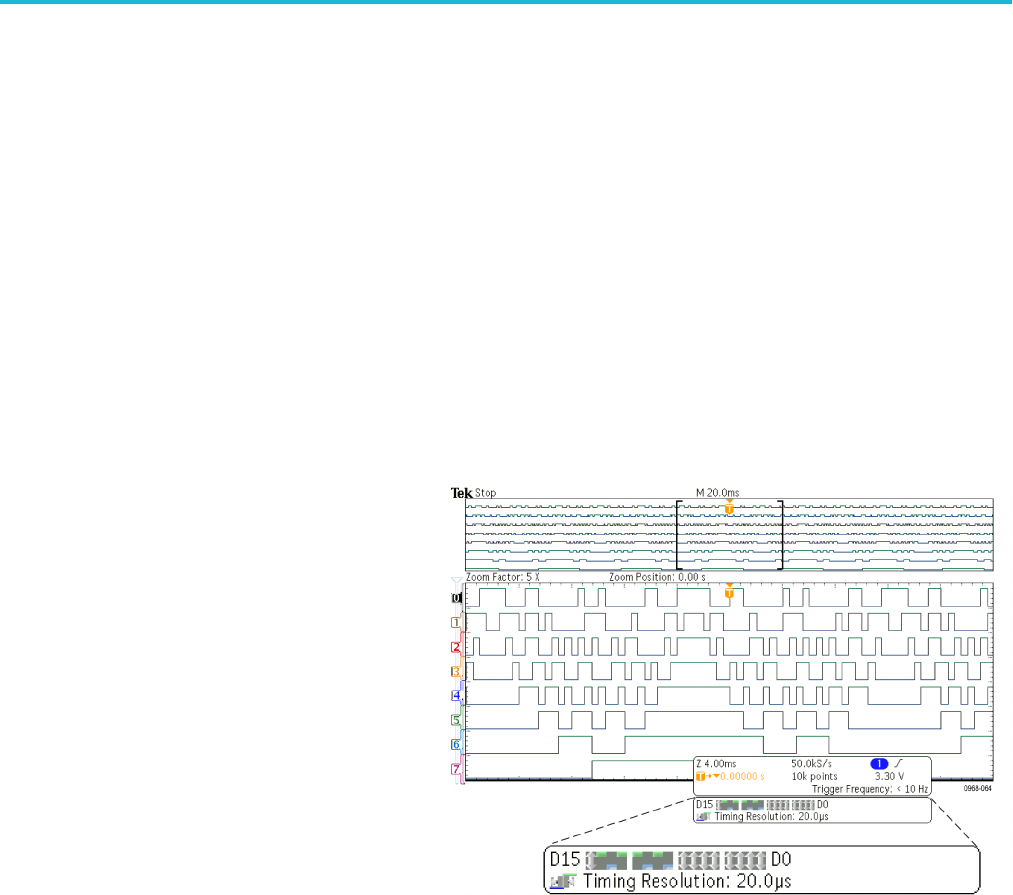

7. Turn Multipurp
ose a to scroll through the list
of digital channels. Turn Multipurpose b to
position the selected channel.
As you positio
n c hannels close to each other
on the display, the oscilloscope groups the
channels, and adds the group to the pop-up
list. You can
select the group from the list to
move all the channels in the group instead of
individual channels.
8. Push Thresh
olds on the lower menu. You
can assign a different threshold value to each
channel.
9. Push Edit L
abels on the lower menu and
create the label. You can create labels
through the front panel or with an optional
USB keyboa
rd. (See page 55, Labeling
Channels and Buses.)
10. Push Monitor to show the activity on digital
channels
at a glance.
11. Push MagniVu on the lower menu to
increase the timing resolution. (See page 83,
When
and Why to Turn On MagniVu.)
82 MDO3000 Series Oscilloscopes User Manual
