Display Wavefor
morTraceData
Positioning and Labeling Bus S ignals

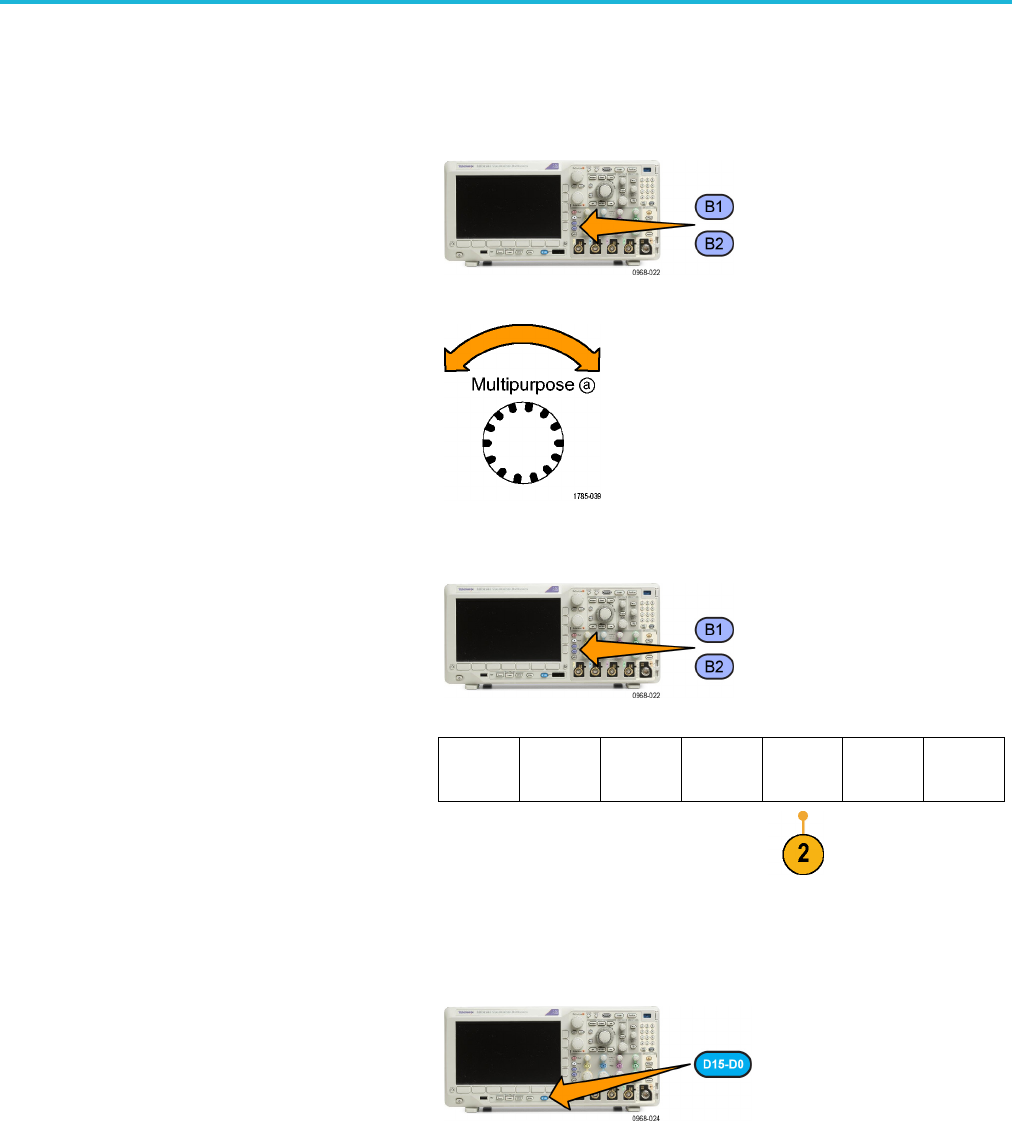

Positioning bus signals. Push the appropriate front panel bus button and turn the M ultipu rpose a knob to adjust the
vertical position of the selected bus. (See page 67, Setting Up a Serial or Parallel Bus.)
1. Push the appropriate front panel bus button
to select that bus.
2. Turn the Multipurpose a knob to adjust the
vertical position of the selected bus.
Labeling bus signals. To label a bus, do the following steps:
1. Push the a
ppropriate front panel bus button.
2. Push Label.
(See page 55, Labeling Channels and Buses.)
Bus (B1)
Parallel
Define
Inputs
Thresholds
(B1) Lab
el
Parallel
Bus
Display
Event
Table
Posit
ioning, Scaling, and Grouping Digital Channels
1. Push the front panel D15–D0 button.
MDO3000 Series Oscilloscopes User Manual 113
