Display Wavefor
morTraceData

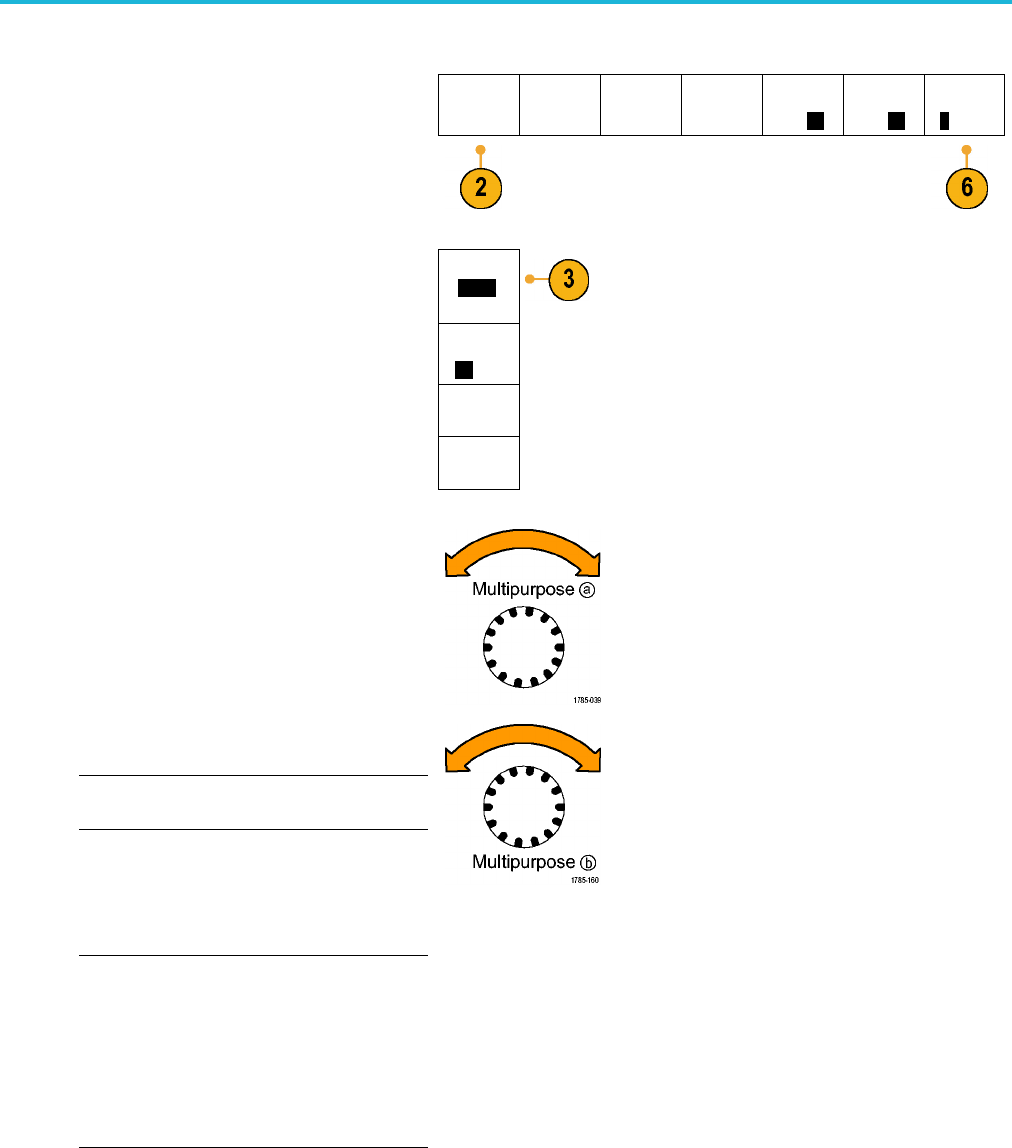

2. Push D15–D0 on
the lower menu.
D15 – D0
On/Off
Thresholds Edit Labels Monitor
On |
Off
MagniVu
On |Off
Height
S |ML
3. Push Select on the side menu.
Select
(a) D0
(b) 1.04 div
Display
On|Off
Turn on
D7–D0
Turn on
D15–D8
4. Turn Multipurpose a to select the channel
to move.
5. Turn Multipurpo se b to move the selected
channel.
NOTE. The display of the channel (or group)
only moves after you stop rotating the knob.
6. To change the scale (height) of the digital
channels, push Height on the lower menu.
NOTE. The S (Small) selection will display
each waveform at 0.2 divisions tall. The M
(Medium) selection will display each waveform
at 0.5 divisions tall. T he L (Large) selection will
display each waveform at 1 division tall. L only
works if there is enough room in the display to
display the waveforms. You can display up to 8L
waveforms at one time.
7. You can label individual digital channels for
easier identification. (See page 55, Labeling
Channels and Buses.)
114 MDO3000 Series Oscilloscopes User Manual
