Analyze Wavefor
morTraceData
4. Choose the measurement of interest from
the side menu.
Select
Measure-
ment
None
Channel power: The total power within the
bandwidth, defined by the Channel Width.
Channel
Power
Adjacent cha
nnel power ratio: The power in the
main channel and the ratio of channel power to
main power, for the upper and lower halves of
each adjace
nt channel.
Adjacent
Channel
Power
Ratio
Occupied bandwidth: The bandwidth that
contains t
he specified % of power within the
analysis bandwidth.
Occupied
Bandwidth
As you sel
ect each frequency measurement, on screen help w ill appear to explain the purpose of that measurement. A
Configure item will appear on the lower menu. After you press Configure and set the measurement parameters in the
resulting side menu, the oscilloscope will automatically set the span. When the RF measurements are on, the Auto detection
method w
ill set all frequency domain traces to the Average detection method. This provides optimal measurement accuracy.

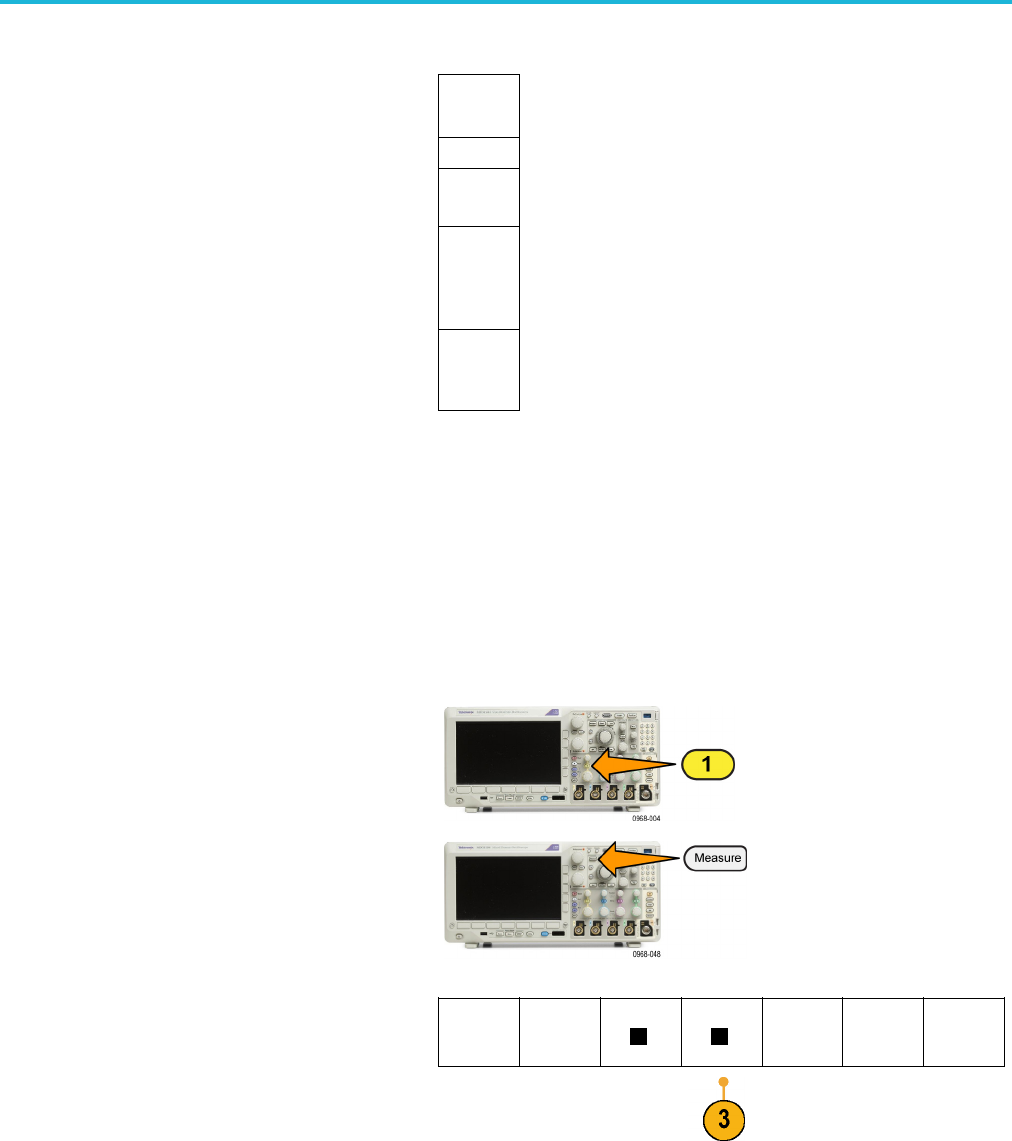

Taking Digital Voltmeter Measurements
Use the digital voltmeter to measure the potential difference between two points in an electrical circuit.
1. Push channel 1 .
2. Push Measure.
Add
Measure-
ment
Remove
Measure-
ment
Indicators
Off
DVM
Off
Waveform
His-
tograms
More
3. Push the bottom-menu button labelled DVM.
