Analyze Wavefor
morTraceData
4. Fromthesidem
enu, select the desired
Mode, Source and Disp lay Style.
Digital
Voltmeter
Mode
(a)
|
Off
Source
(b)
|1
Autorange
Unavail-
able when
Triggering
on DVM
Source
Display
Style
Full
Minimized
Reset
DVM
Statistics

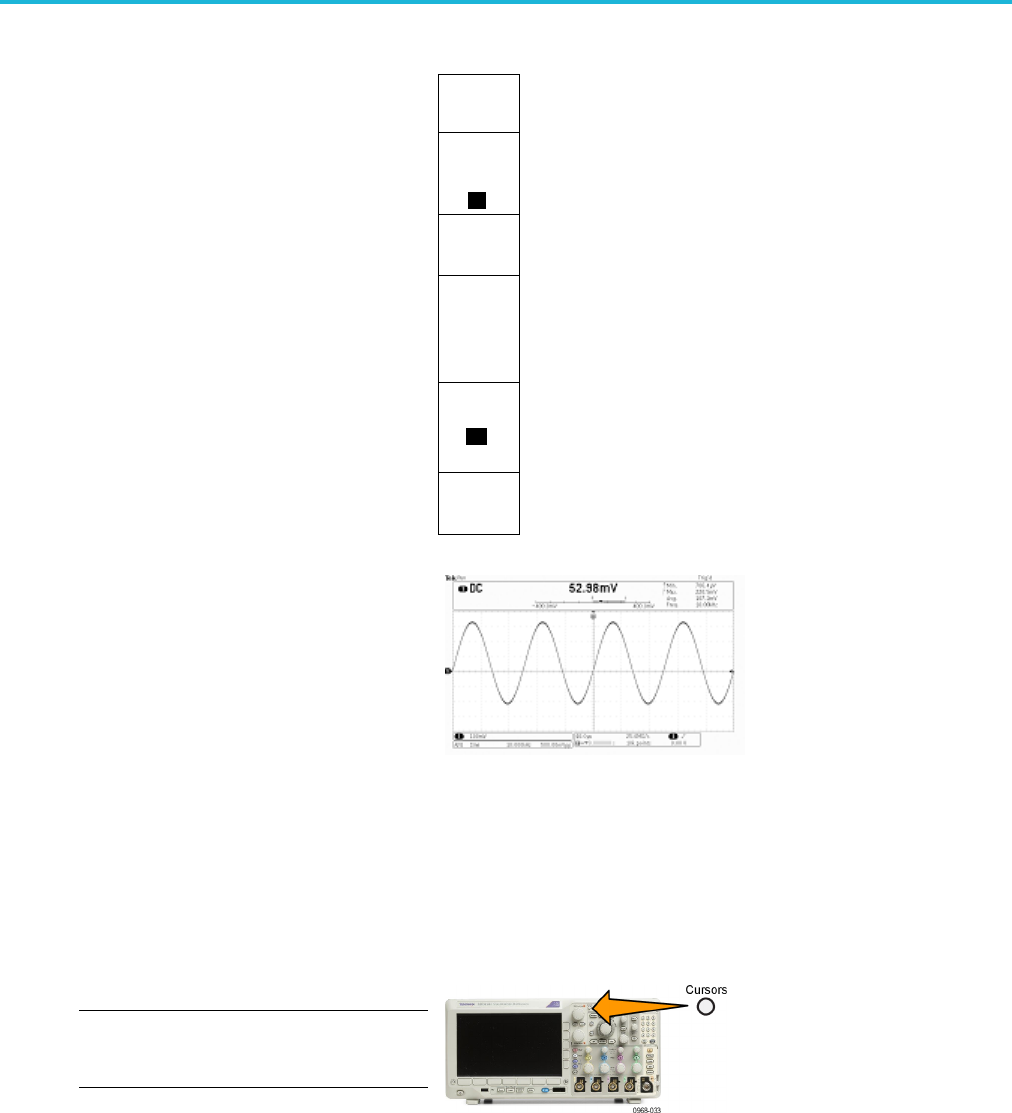

View the fi
nished results.
Taking
Manual Measurements with Cursors
Cursors are on-screen markers that you position in the waveform display to take manual measurements on a cquired data.
They appear as horizontal and/or as vertical lines. To use cursors on analog or digital channels:
1. Push Cursors to turn cursors on.
NOTE. A second push turns cursors off. You
can also push and hold Cursors to display the
cursor menu.
134 MDO3000 Series Oscilloscopes User Manual
