Analyze Wavefor
morTraceData

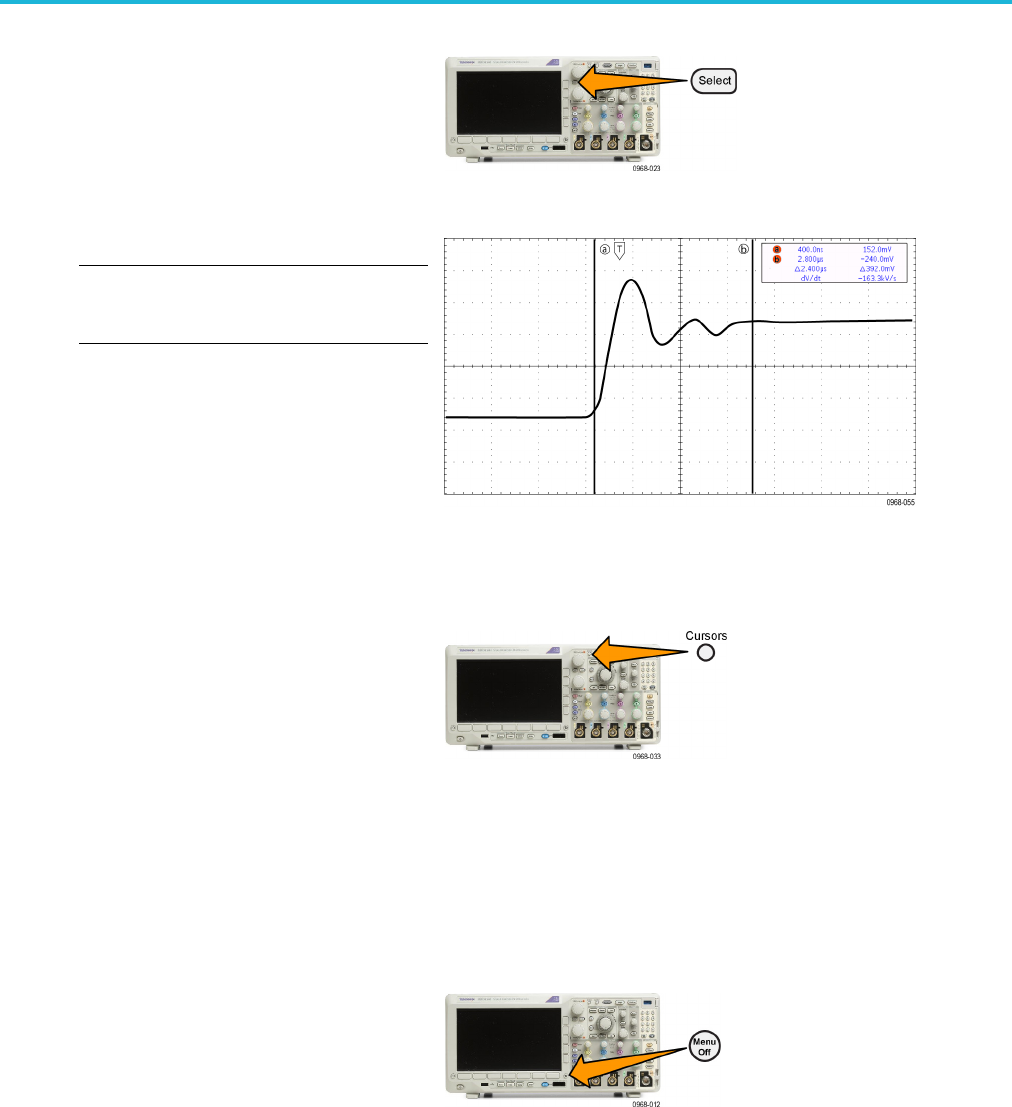

7. Push Select.
This makes the vertical cursors active and
the horizonta
l c ursors inactive. N ow, as you
turn the multipurpose knobs, the vertical
cursors w ill move.
Push Select t
o make the horizontal cursors
active again.
8. View the cursor and the cursor readout.
NOTE. On dig
ital channels, you can take timing
measurements with cursors, but not amplitude
measurements.
9. Display
multiple waveforms on the screen
by pushing one or more of the channel 1
through 4 buttons or by pushing the D15 –
D0 butto
n.
10. P ush and hold Cursors to display the cursor
menu ag
ain.
11. Push S
ource on the lower menu.
A pop-up menu will appear. The default
menu selection of Selected Waveform will
caus
e the cursors to take measurements on
the selected (last used) waveform.
12. Turn Multipurpose a to choose a channel
to me
asure other than the one pointed to by
Selected Waveform .
13. Pus
h Menu Off to remove the pop-up menu.
14. Tur
n Multipurpo se a and take cursor
measurements on the alternate waveform.
136 MDO3000 Series Oscilloscopes User Manual
