Analyze Wavefor
morTraceData

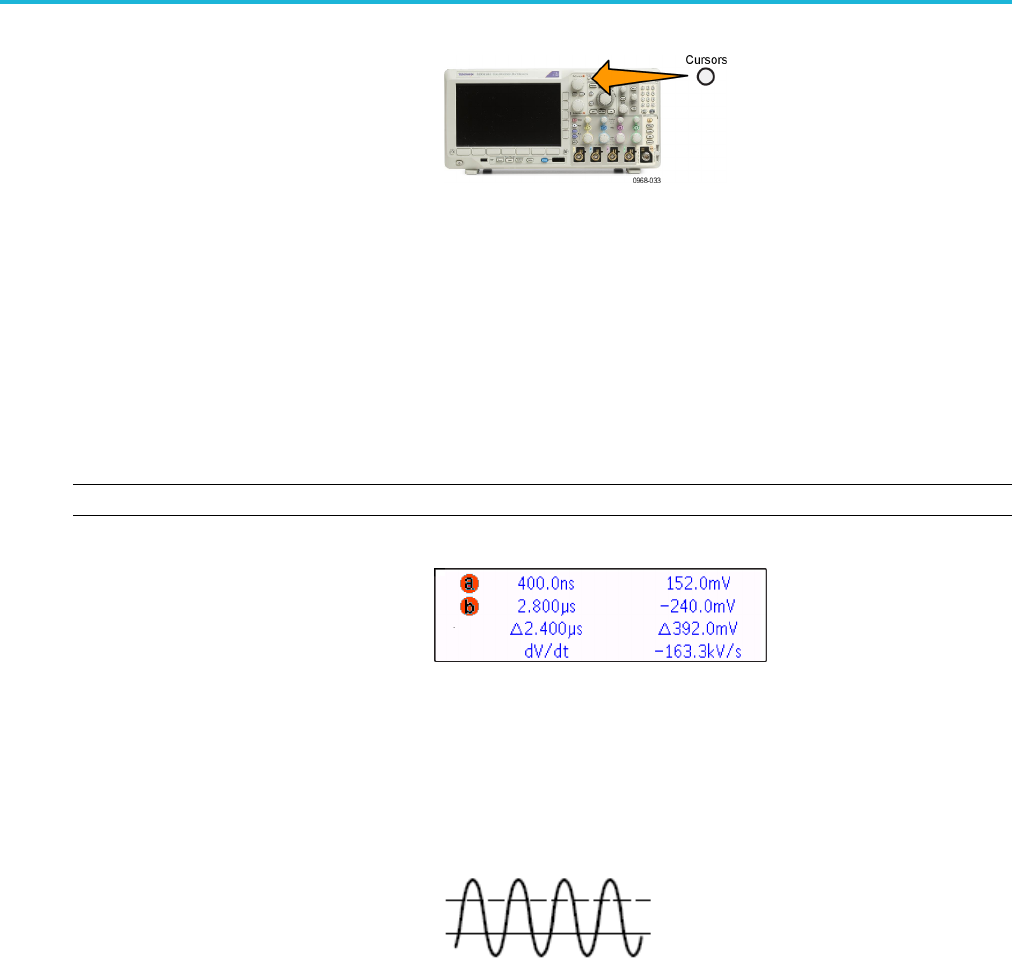

15. Push Cursors again. This turns off the
cursors. The screen no longer displays the
cursors and th
e cursor readout.
Using Cursor
Readouts
Cursor readouts s upply textual and numeric information relating to the current cursor positions. The oscilloscope always
shows the readouts when the cursors are turned on.
Readouts appear in the upper right corner of the graticule. If Zoom is on, the readout appears in the upper right corner of
the zoom window.
When a bus is selected, the readout shows the decoded bus data in the format you have selected from the choices i n the bus
menu. When a digital channel is selected, the cursors show the values of all displayed digital channels.
NOTE. When serial or parallel buses are selected, the data value at that point is displayed in the cursor readout.
Readout:
The readouts indicate the difference
between the cursor positions.
a Readout:
Indicates that the value is controlled by the
Multipurpose a knob.
b Readout:
Indicates that the value is controlled by the
Multipurpose b knob.
The horizontal cursor lines on the display
measure the vertical parameters, typically
voltage.
MDO3000 Series Oscilloscopes User Manual 137
