Analyze Wavefor
morTraceData
Choose among:
- Display on/off
- Standard: NT
SC or PAL
- C ontrast/update rate
- O dd/Even/Interlaced
- Source chan
nel
- Location on the screen to display the results

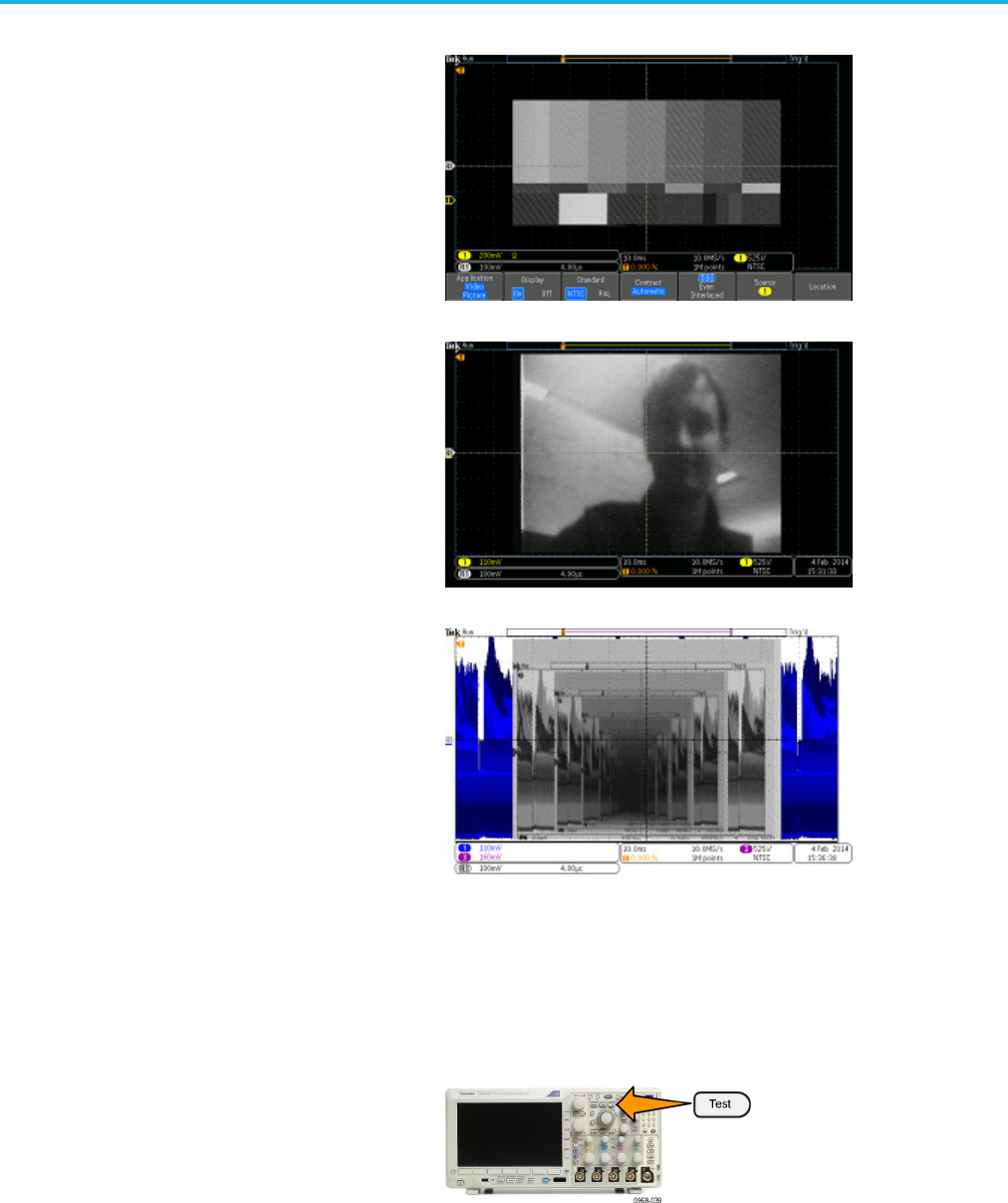

See a test pattern from a video generator
Seeanact
ual video picture
See a video of a video of a video ... signal by connecting a cab le from the VIDEO
OUT in the rear panel to an analog input channel in the front panel
Making Automated Power Measurements
Acquire, measure, and analyze power signals with the MDO3PWR Power Analysis Module. To use this application:
1. Push Test.
2. Turn Multipu rpo se a to select Power
Analysis.
