Save and Recall I
nformation
6. Push Edit File N
ame.
Edit the file name the same way you edit
labels for channels. (See page 55, Labeling
Channels and B
uses.)

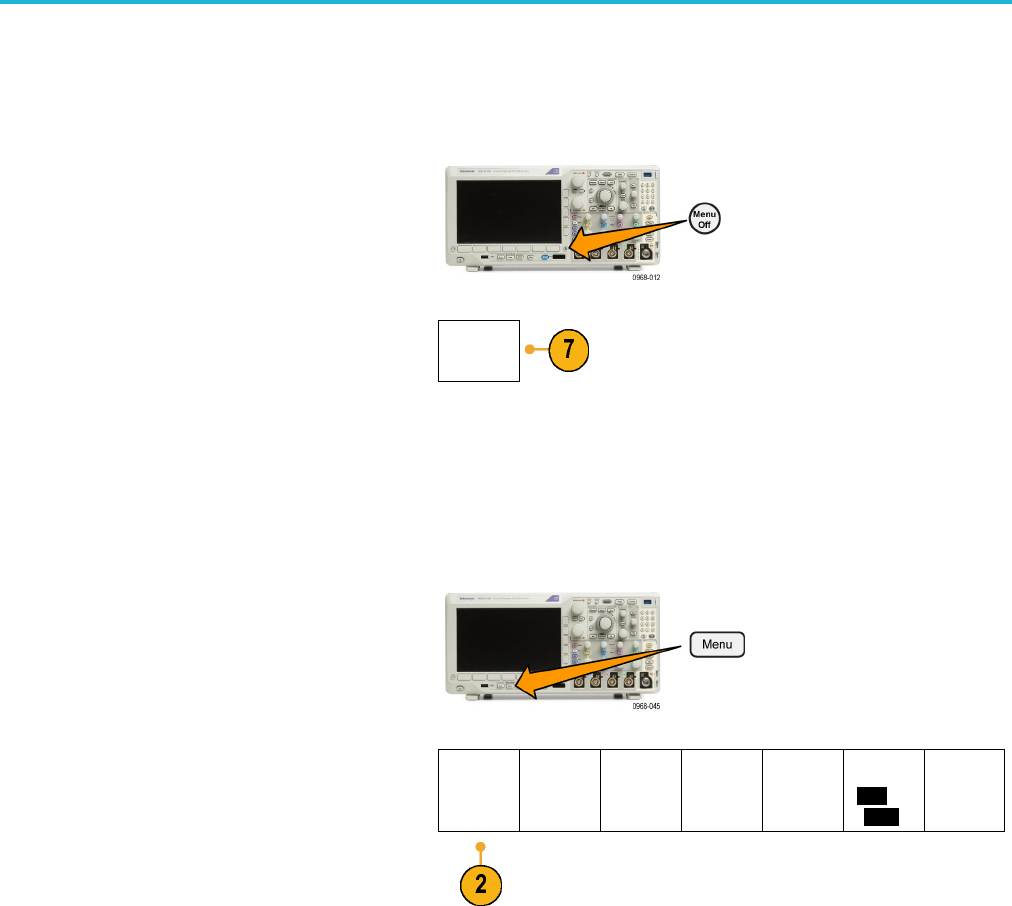

7. Push the Menu Off button to cancel the
save operati
on, or push OK Save on the
side menu to complete the operation.
OK Save
Saving a Screen Image
A screen image consists of a graphical image of the oscilloscope screen. This is different from waveform data, which
consists of numeric values for each point in the waveform. To save a screen image:
1. Push Save / Recall Menu.
Do not yet push the Save button.
2. Push Save Screen Image on the lower
menu.
Save
Screen
Save
Waveform
Save
Setup
Recall
Waveform
Recall
Setup
Assign
Save|to
Setup
File
Utilities
164 MDO3000 Series Oscilloscopes User Manual
