Save and Recall I
nformation
Managing Drives, Directories, and Files
You can manage drives, directories, and files from the oscilloscope user interface.

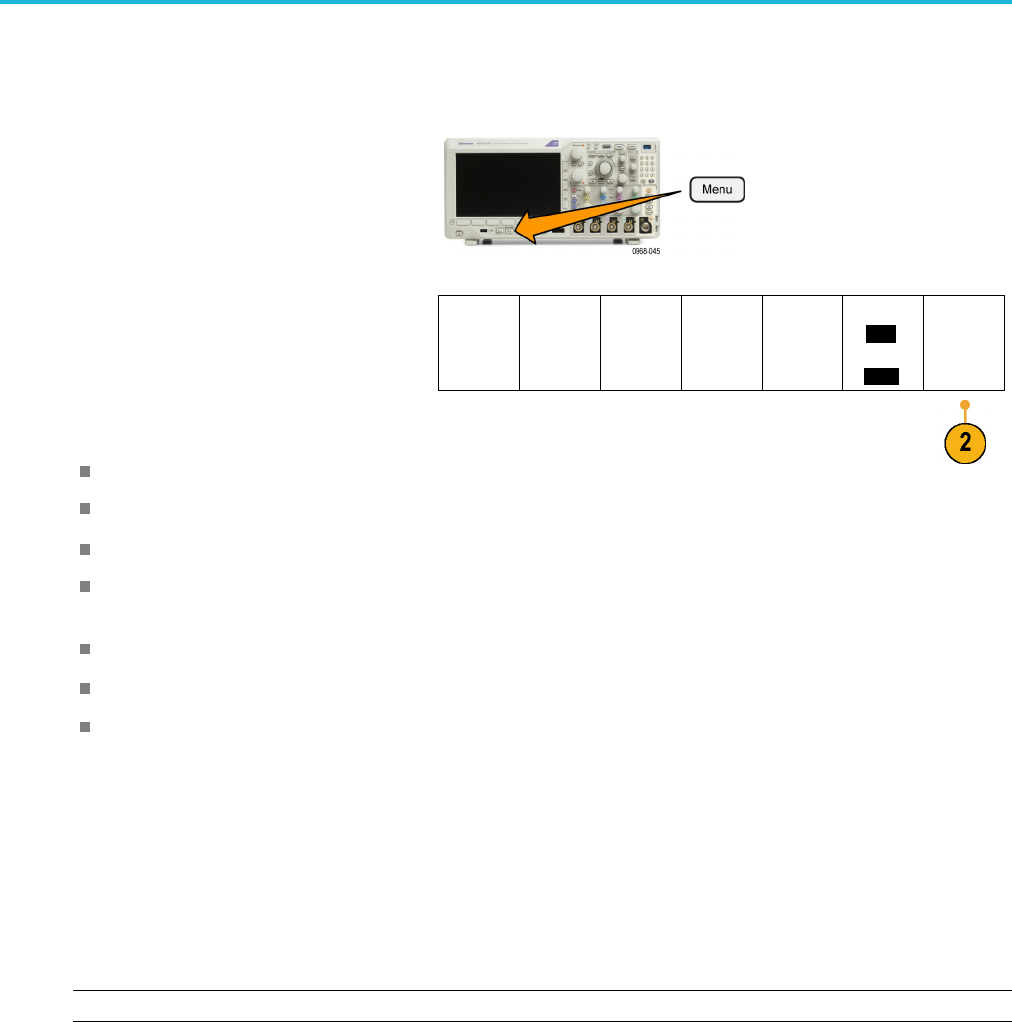

1. Push Save/Recall Menu.
2. Push File Utilities.
Save
Screen
Save
Waveform
Save
Setup
Recall
Waveform
Recall
Setup
Assign
Save
to
Setup
File
Utilities
Select the desired file operation from the side
menus. You can:
Create a new folder
Delete a highlighted directory, or file
Copy a highlighted drive, directory o r file
Paste a previously copied drive, directory,
or file
Mount or unmount a networked drive
Rename a highlighted drive, directory, or file
Format a highlighted drive
Mounting a Network Drive
Mount a
network storage device, such as a PC or a file server, to save setups, waveforms, and screen images directly to
the drive or to recall w aveform s or setups from the drive.
To s ave to or recall files from a network drive, you must first connect your oscilloscope to the network (See page 26,
Connecting Your Oscilloscope to a Computer.).
NOTE
. Consult your network administrator for information related to your network.
After the network connection has been established, do the following:
1. Push Save/Recall Menu on the front panel.
2. Push F ile U tilities on the lower menu and, from the resulting side menu, select –more–1of2. Then select Mount.
MDO3000 Series Oscilloscopes User Manual 171
