Save and Recall I
nformation
Set Up Print Parameters

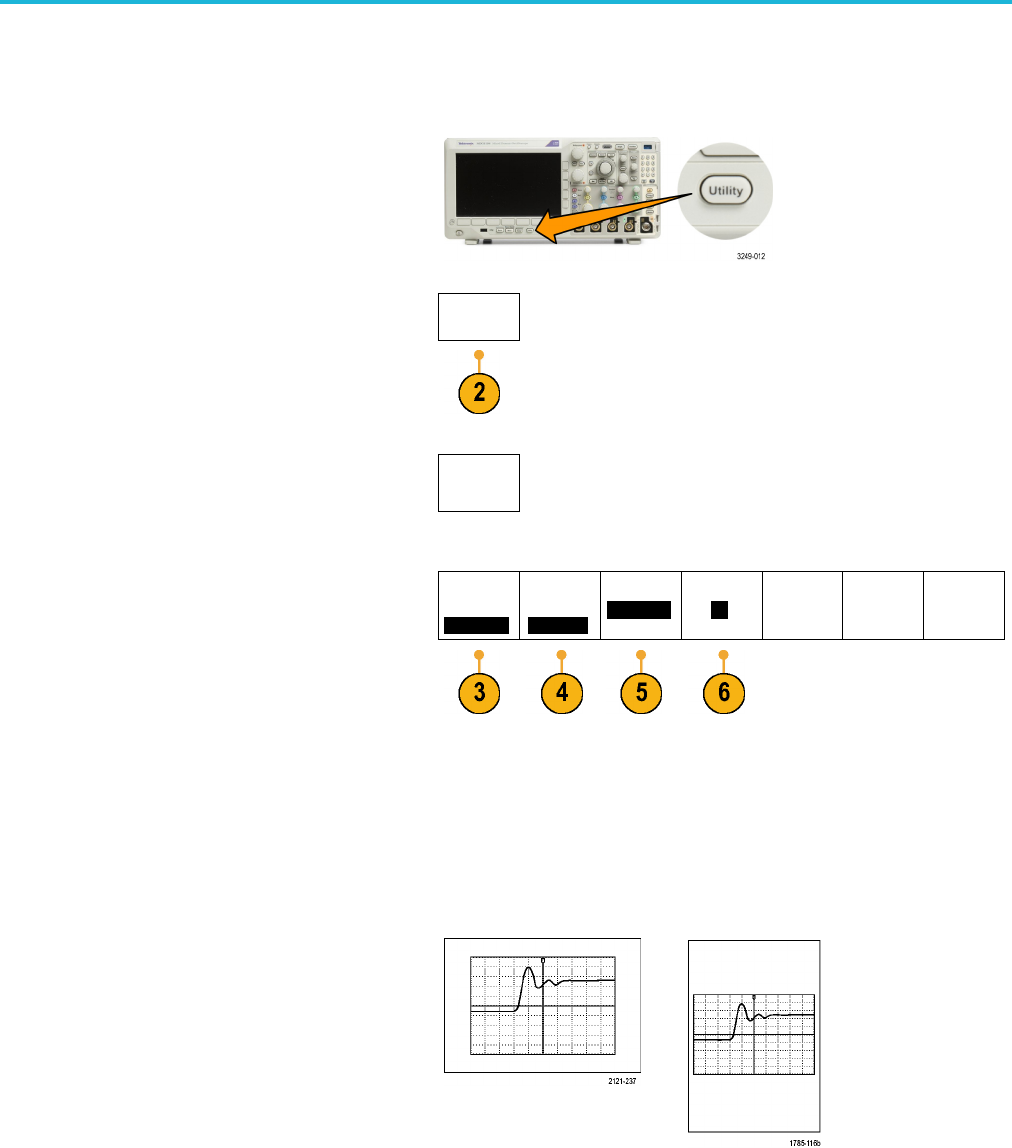

To set up the oscilloscope to print hard copies:
1. Push Utility.
2. Push Utility Page.
Utility
Page
3. Turn M ultipu rpo se a and select Print
Setup.
Print Setup
4. Push S elect Printer if you are changing the
default printer.
Utility
Page
Print Setup
Select
Printer
PictBridge
Orientation
Landscape
Ink Saver
On
PictBridge
Printer
Settings
Turn Multipu rp ose a to scroll through the
list of available printers.
Push Select to choose the desired printer.
To add a non-PictBridge USB printer to
the list, plug the printer into a U SB host
port. The oscilloscope will automatically
recognize most printers.
To set up a PictBridge USB printer, refer to
the next topic.
To add an Ethernet printer to the list, refer to
that topic. (See page 177, E-mail Printing.)
5. Select the image orientation (portrait or
landscape).
Land
scape
Portrait
MDO3000 Series Oscilloscopes User Manual 173
