Save and Recall I
nformation
6. Choose Ink Saver On or Off.
The On selection will print out a copy with a
clear (white)
background.

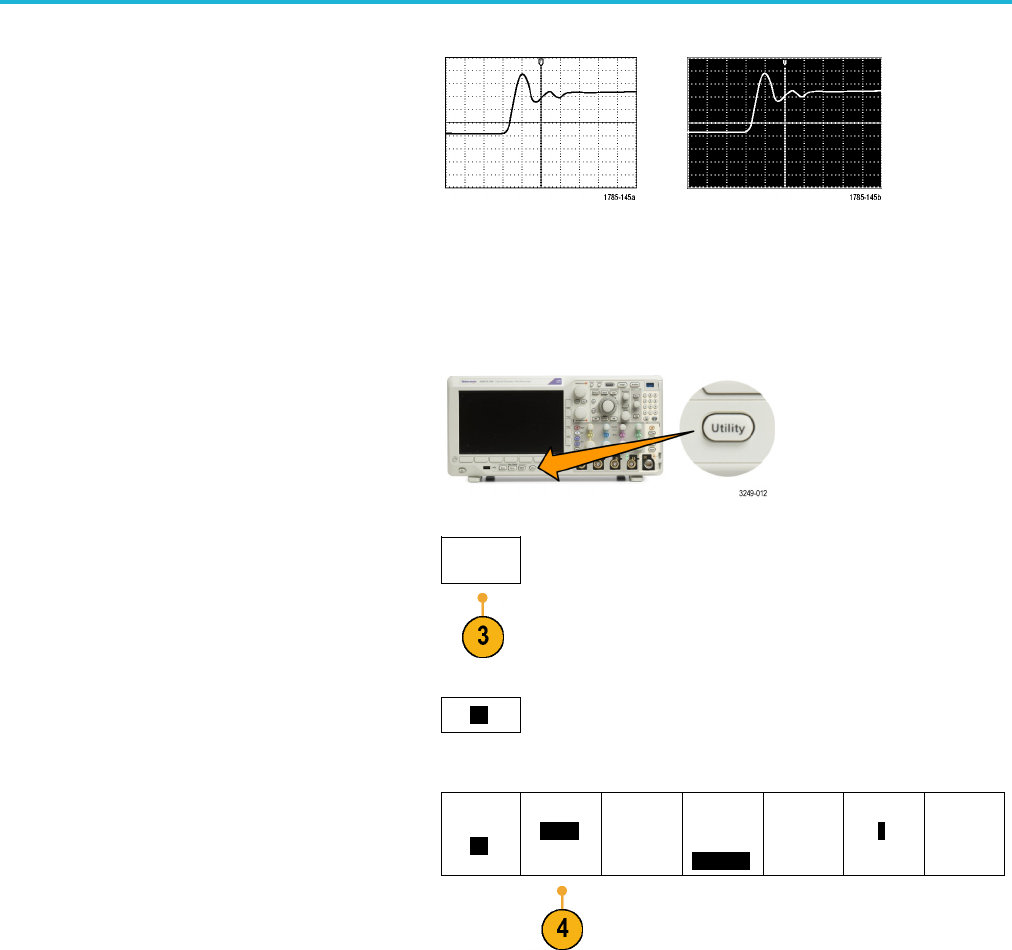

Ink Saver on
Ink Saver off
Printing to a
PictBridge P rinter
To set up the oscilloscope to print to a PictBridge printer:
1. Push Utilit
y.
2. Push U tility Page.
Utility
Page
3. Turn Multipurpose a and select I/O.
I/O
4. Push USB.
Utility
Page
I/O
USB
Printer
Ethernet &
LXI
Network
Configura-
tion
Automatic
Socket
Server
GPIB
1
174 MDO3000 Series Oscilloscopes User Manual
