Save and Recall I
nformation
10. Push the down a
rrow key to move the
character cursor down a row to the Server
Name field.
Add
Printer
11. Turn the Multi
purpose a knob and push
Select or Enter Character as often a s
needed to enter the name.
12. If desired, push the down arrow key to move
the character cursor down a row to the
Server IP Ad
dress: field.
OK Accept
13. Turn Multipurpose a and push Select or
Enter Character as often as needed to enter
the name.
14. When done, push O K Accept.
NOTE. If you have m ultiple printers connected
to the oscilloscope at the same time, the
oscilloscope will print to the printer listed in the
Utility> Utility Page> Print Setup> Select Printer
menu item.
E-mail Printing
To set up the oscilloscope to print via e-mail to e-mail enabled printers:

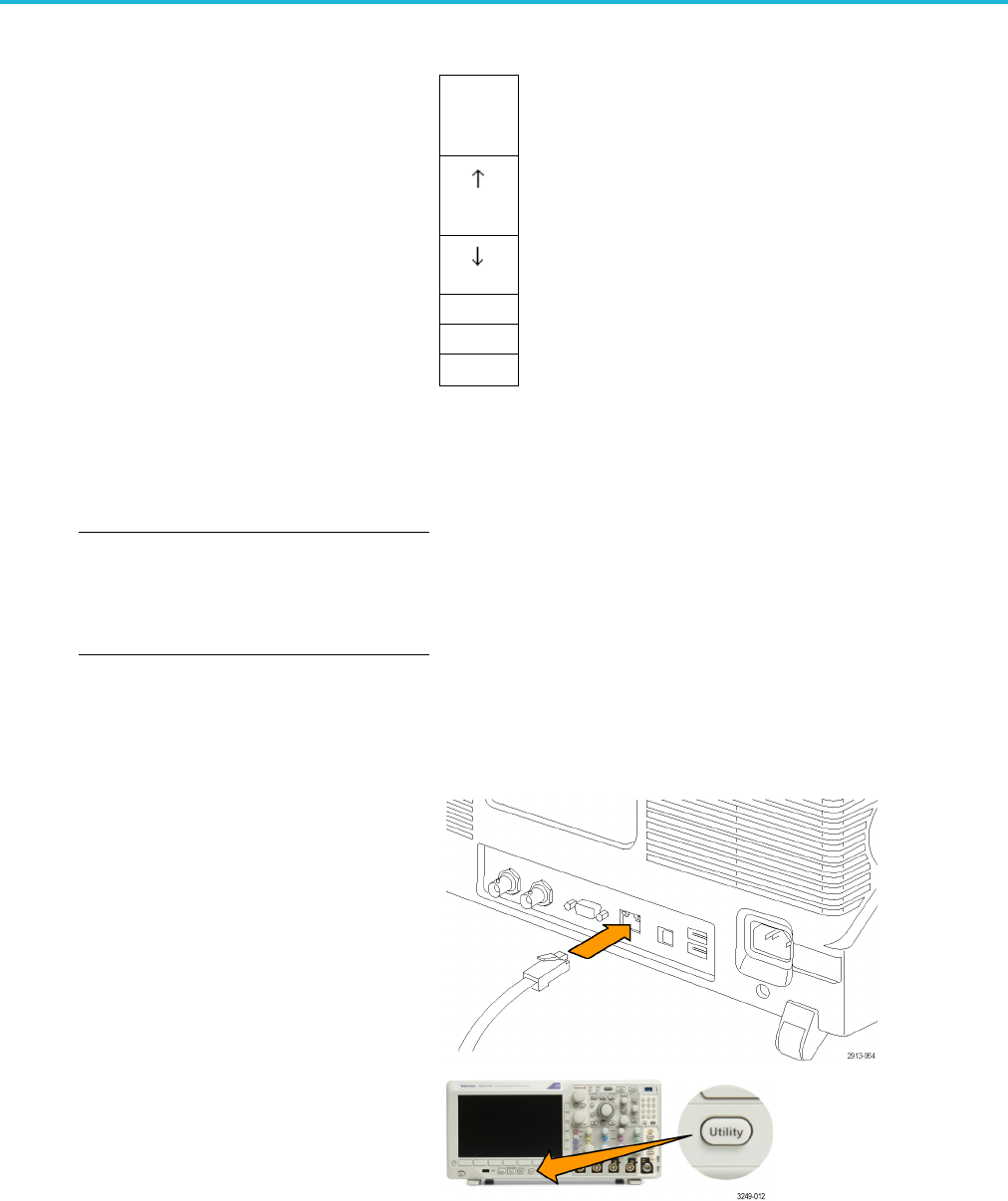

1. Connect an Ethernet cable to the rear-panel
Ethernet port.
2. Push Utility.
MDO3000 Series Oscilloscopes User Manual 177
