Appendix B: TPP0
250, TPP0500B and TPP1000: 250 MHz, 500 MHz and 1 GHz 10X Passive Probes Information

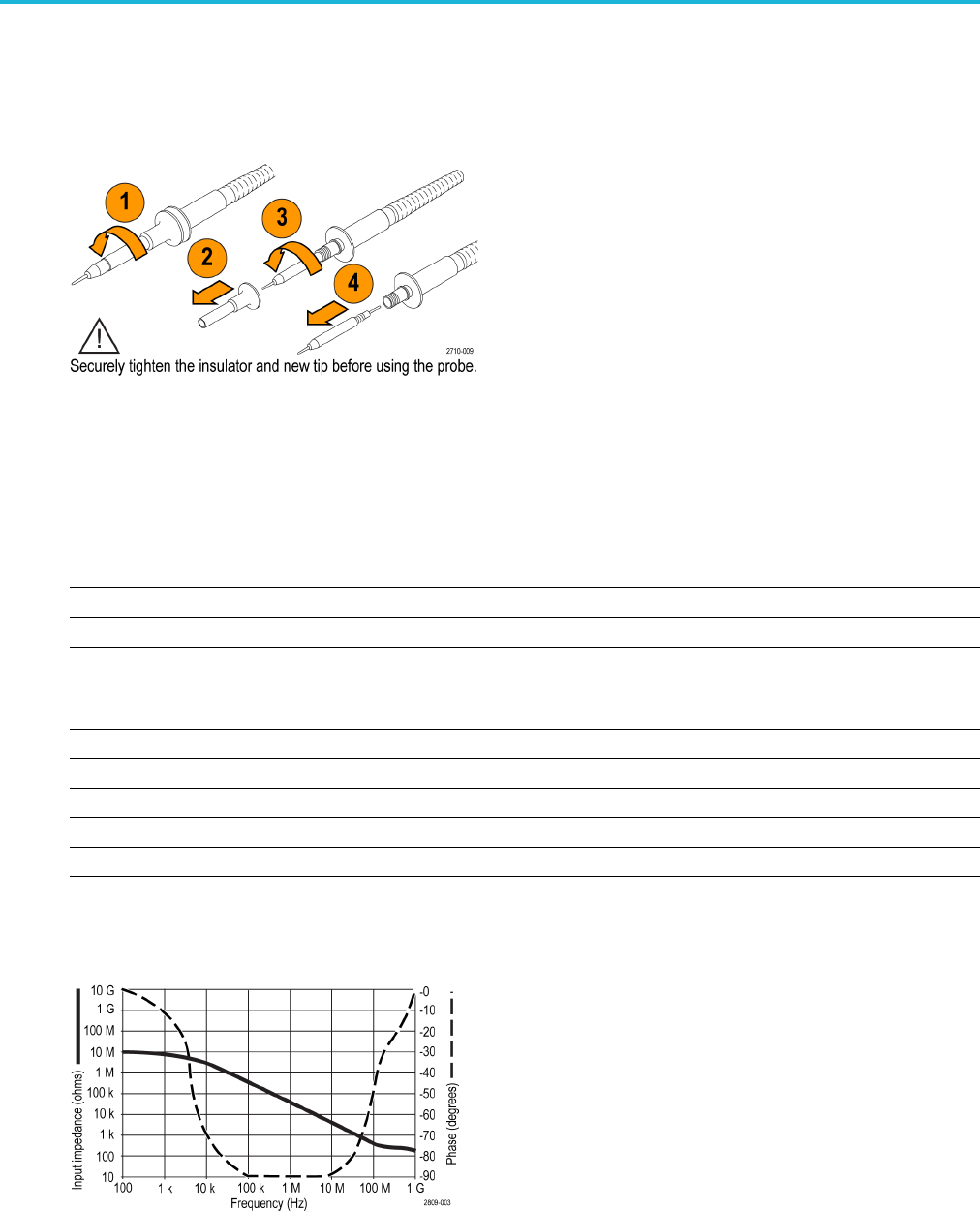

Replacing the Probe Tip
Order Tektronix part number 206-0610-xx for rigid tip replacement, or order part number 206-0611–xx for pogo pin
replacement.
Specifications
Table 5: Electrical and mechanical specifications
Characteristic TPP0250 TPP0500B TPP1000
Bandwidth (–3 dB)
250 MHz 500 MHz
1GHz
System rise time (typical)
<1.4 ns <700 ps <450 ps
System input capacitance
Rigid tip: 3.9 pF ±0.3 pF
Pogo pin tip: 5.1 pf ±0.5 pF
System attenuation accuracy 10:1 ±2.2%
Probe series resistance @DC 9.75 M ±0.5%
System input resistance @DC 10 M ±2%
Propagation delay ~5.67 ns
Maximum input voltage
300 V
RMS
CAT II
Cable length
1.3 m, ±3 cm
Performance Graphs
MDO3000 Series Oscilloscopes User Manual 201
