Appendix C : P631
6 General-Purpose Logic P robe Information
Appendix C: P6
316 General-Purpose Logic Probe Information
Product Description

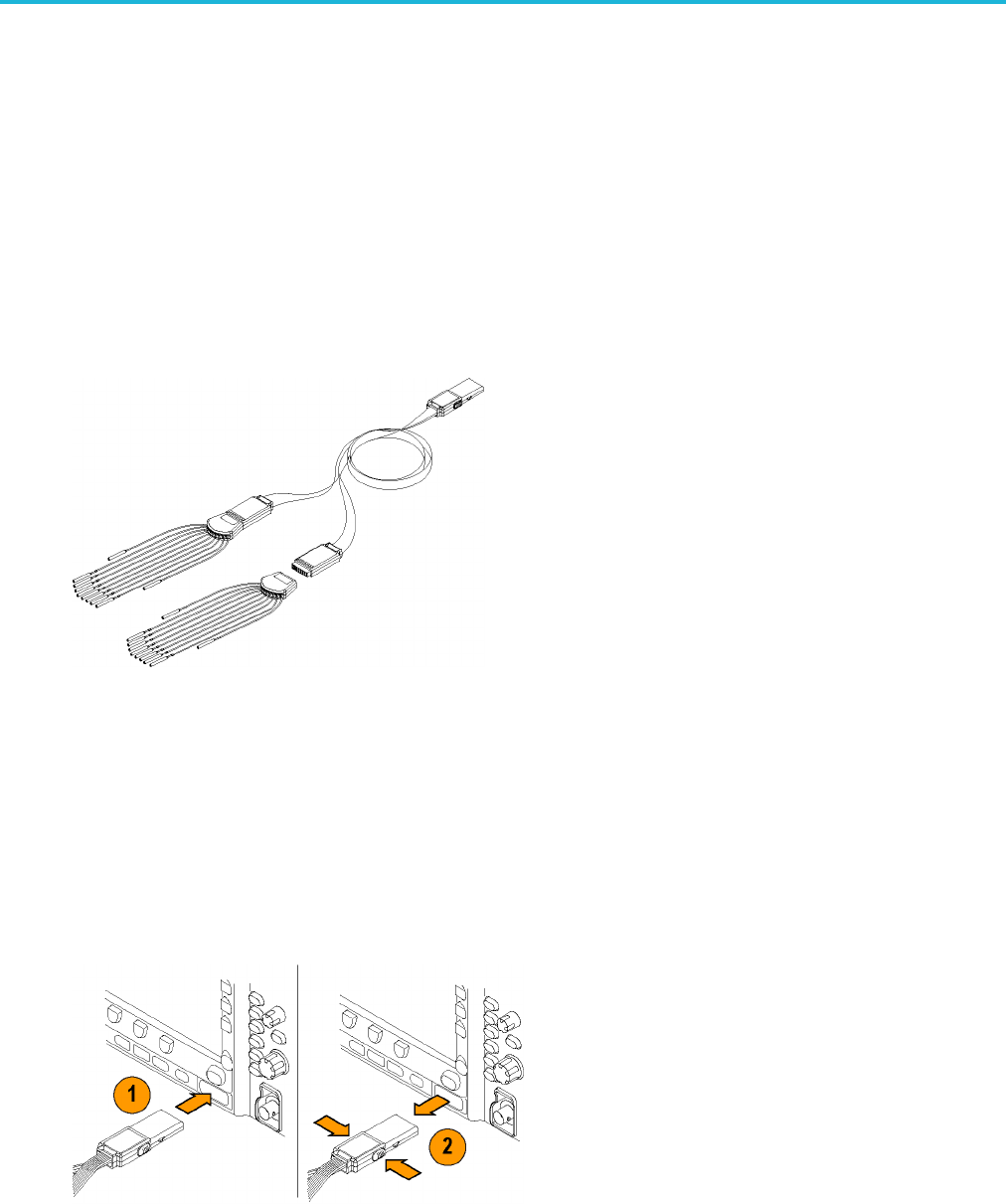

The P6316 general-purpose logic probe connects the Tektronix MDO3000 Series o f mixed-signal oscilloscopes to digital
buses and s ignals on your target system. The probe breaks out 16 data channels over two 2x8-pin headers (GRO UP 1 and
GROUP 2). Each header includes eight signals on one row and eight grounds along the opposite row.
The P6316 is included with option MDO3MSO.
A pair of interchangable flying lead sets are included with the p robe. The lead sets bring out one ground connection on each
end and eight signal leads for connecting to individual test points.
Connecting the Probe to the Oscilloscope
Connect the probe as shown in the illustration below.
1. Insert the probe label-side up into the connector on the oscilloscope.
2. To remove the probe, squeeze the buttons on the side and pull out the probe.
MDO3000 Series Oscilloscopes User Manual 205
