Installation
500 MHz
1 GHz MDO3BW5T104
MDO3032
350 MHz 500 MHz
MDO3BW3T52
350 MHz
1 GHz MDO3BW3T102
500 MHz
1 GHz MDO3BW5T102
MDO3034
350 MHz 500 MHz
MDO3BW3T54
350 MHz
1 GHz MDO3BW3T104
500 MHz
1 GHz MDO3BW5T104
MDO3052
500 MHz
1 GHz MDO3BW5T102
MDO3054
500 MHz
1 GHz MDO3BW5T104
To enable the upgrade, you will need to order a bandwidth upgrade product. 1 GHz upgrades require you to send your
instrument to a Tektronix Service Center. All others c an be performed in the field by the customer.
You w ill need to supply the model number and serial number when placing your order. To determine the serial number of
your i
nstrument, push Utility, and then push About. The serial number is located on the resulting screen.
To upg
rade bandwidth by installing an option key on your instrument,
1. Once you have placed an order for the
appropriate bandwidth upgrade product, you
shou
ld re ceive an Option Key Certificate.
with the option key number.

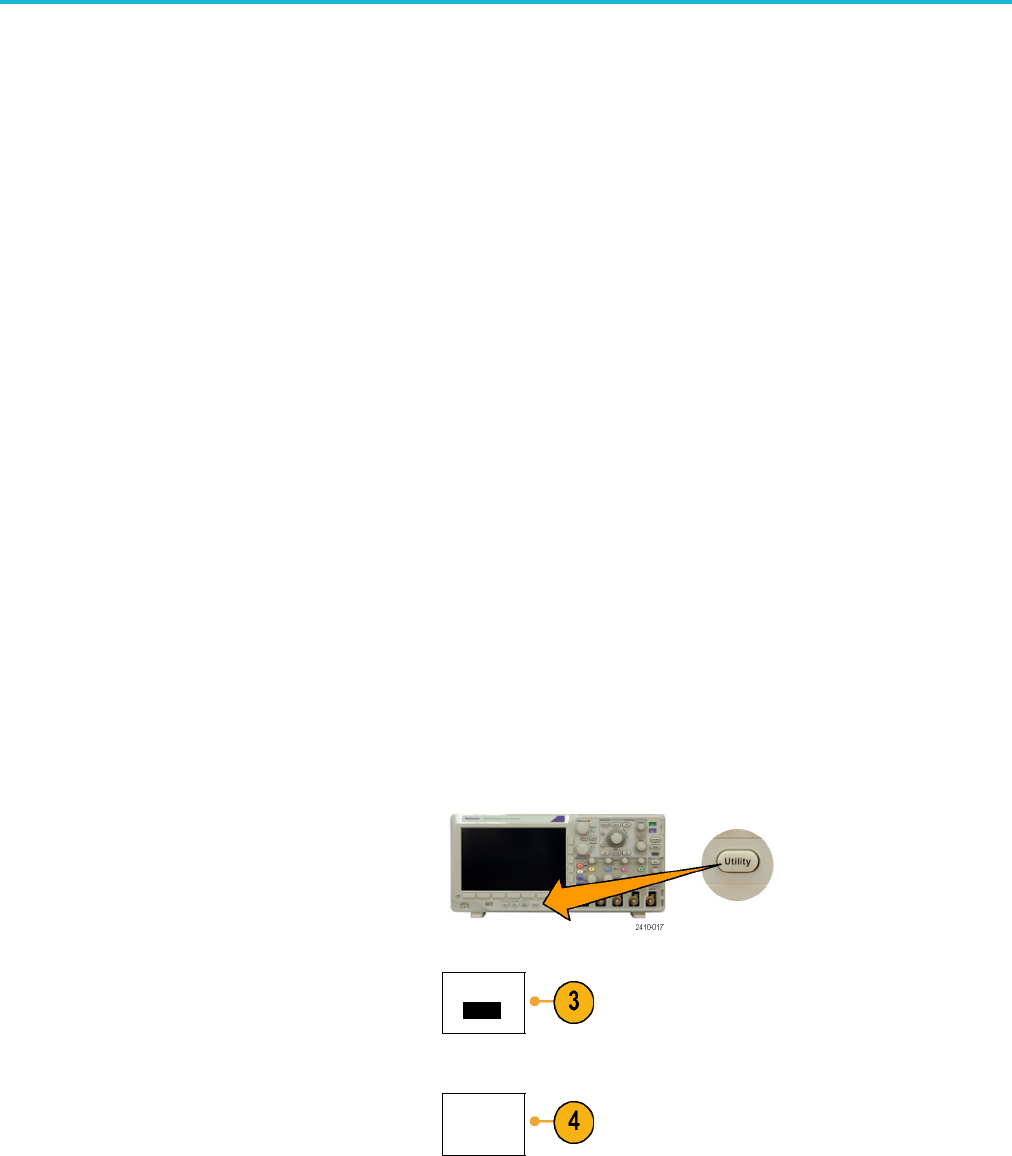

2. Push Utility.
3. On the lower menu, push Utility Page and
s
elect Config.
Utility Page
Config
4. Push Manage Modules & Options.
Manage
Modules &
O
ptions
