Installation

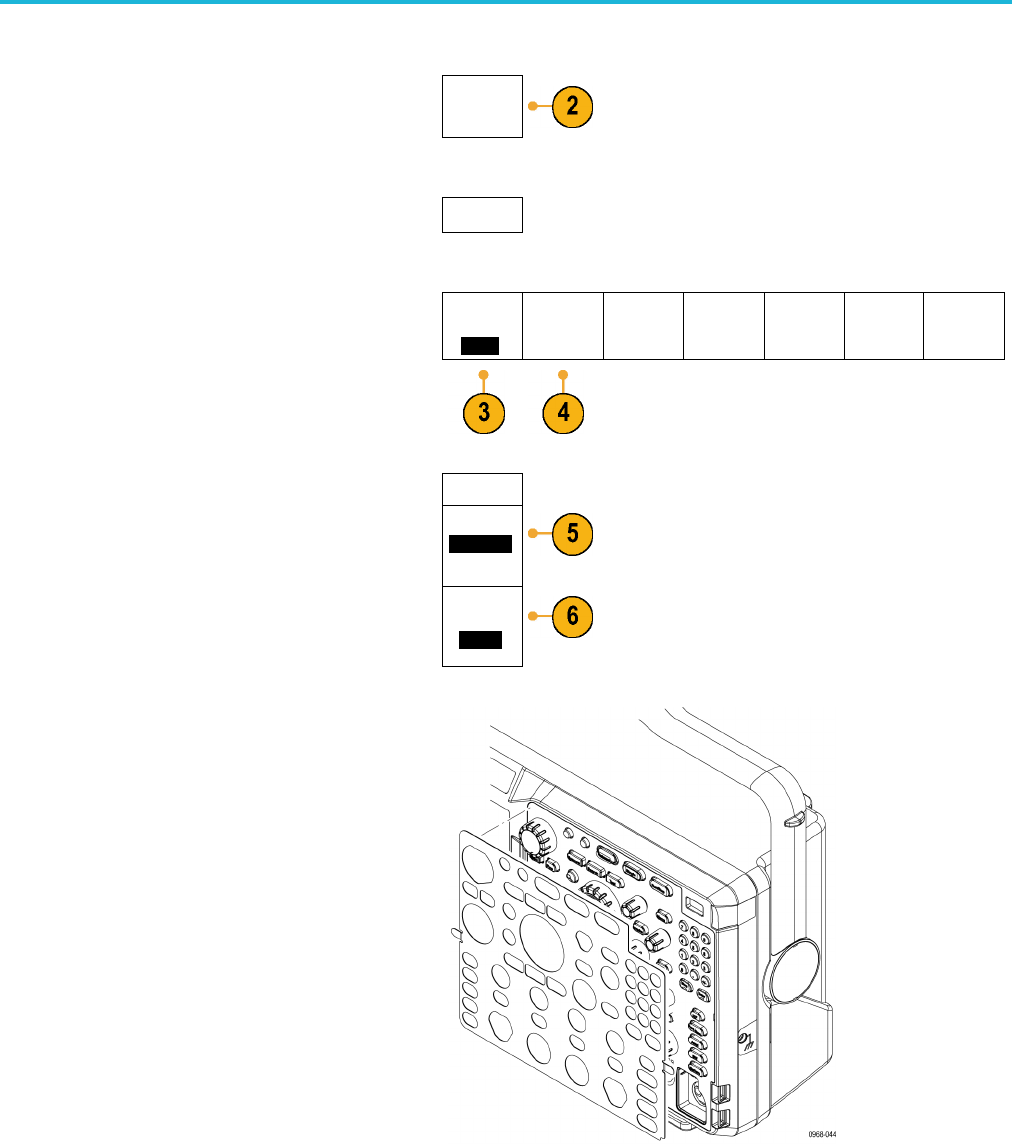

2. Push Utility P
age.
Utility
Page
3. Turn Multipurpose a and select Config.
Config
4. Push Langua
ge from the resulting lower
menu.
Utility
Page
Config
Language
Set Date &
Time
About Manage
Modules &
Options
Language
5. Push Menus from the resulting side menu
and turn
Multipurpose a to select the
desired language for the user interface.
Menus
(a) English
6. Push USB
Keyboard from the resulting side
menu and turn Multipurpose a to select the
desired language version of keyboard to use.
USB
Keyboard
Englis
h
7. If you choose to use an English user
interface, be sure that the plastic front panel
overl
ay is removed.
If you choose a language other than English,
place the plastic overlay for the language
that
you desire over the front panel to display
labels in that language.
