Installation

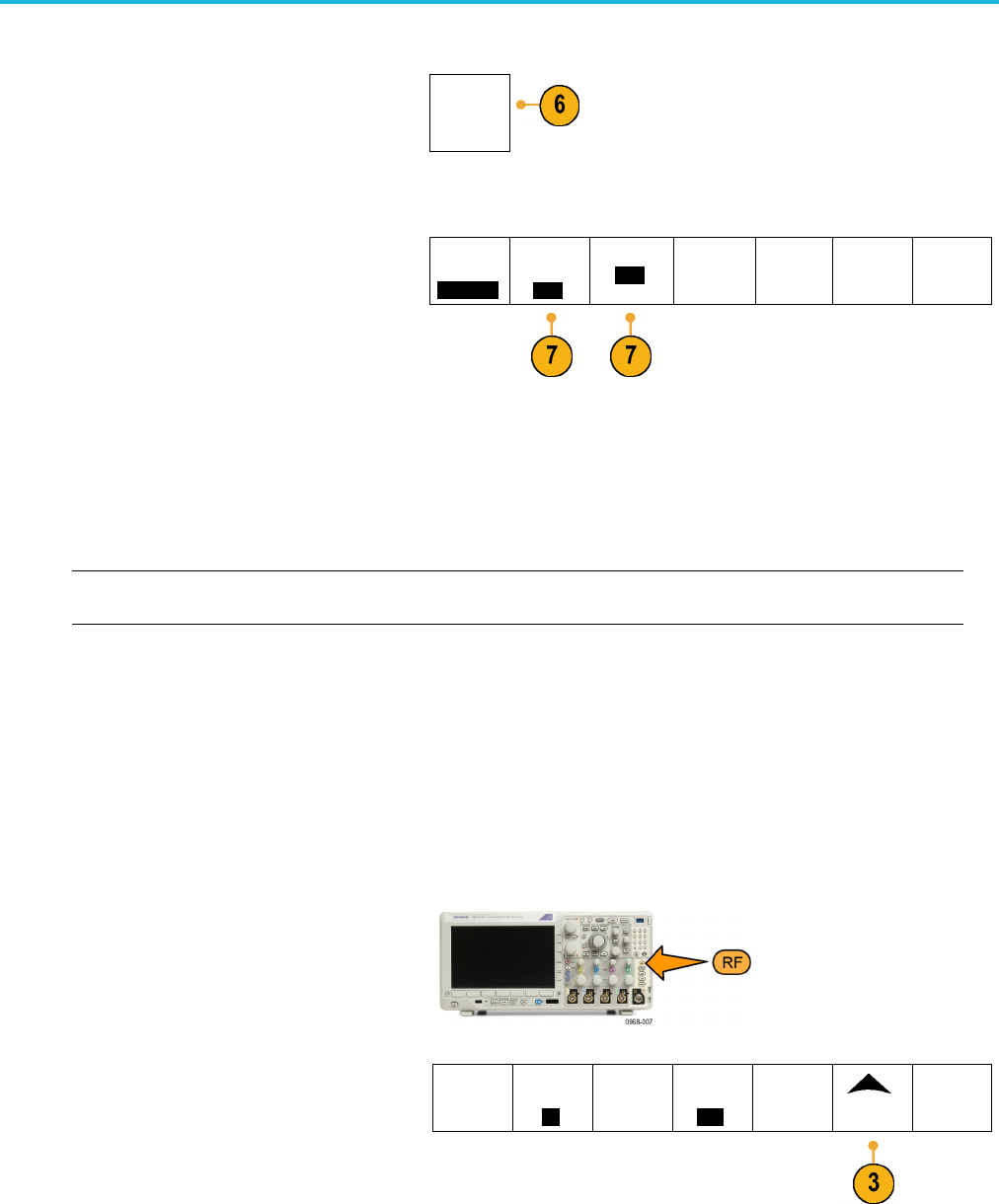

6. Push OK Compensate Signal Paths on
the resulting side menu.
OK Com-
pensate
Signal
Paths
The calibrati
on will take approximately
10 minutes to complete.
7. A fter calibr
ation, v erify that the status
indicator on the lower menu displays Pass.
Utility
Page
Calibration
Signal
Path
Pass
Factory
Pass
If it does not, then recalibrate the instrument
or have the i
nstrument serviced by qualified
service personnel.
Service pe
rsonnel use the factory calibration
functions to calibrate the internal voltage
references of the oscilloscope using
external s
ources. Contact your Tektronix
field office or representative for assistance
with factory calibration.
NOTE. Signal Path Compensation does not include calibration to the probe tip. (See page 13, Compensating a
non-TPP0
250, non-TPP0500B or non-TPP1000 Passive Voltage Probe.)
Signal Path Compensation for Frequency Domain Only
The signal path compensation (SPC) described above runs on both the time and the frequency domain inputs. If you only
want to compensate the RF input, you can save time by running SPC only on the RF input and skipping the time domain
part. You can do this as follows:
1. A s with the time and frequency calibration,
warm up the oscilloscope for at least
20 minutes. Remove all input signals
(probes and cables) from the RF input.
2. Push RF to bring up the Frequency Domain
menu.
3. Push More to se lect Compensate Signal
Path.
Spectrum
Traces
Spectro-
gram
On
Spectrum
Triggered
Detection
Method
Auto
Edit Labels
More
4. O n the resulting side menu, push OK.
Compensate RF Signal Path.
