Installation

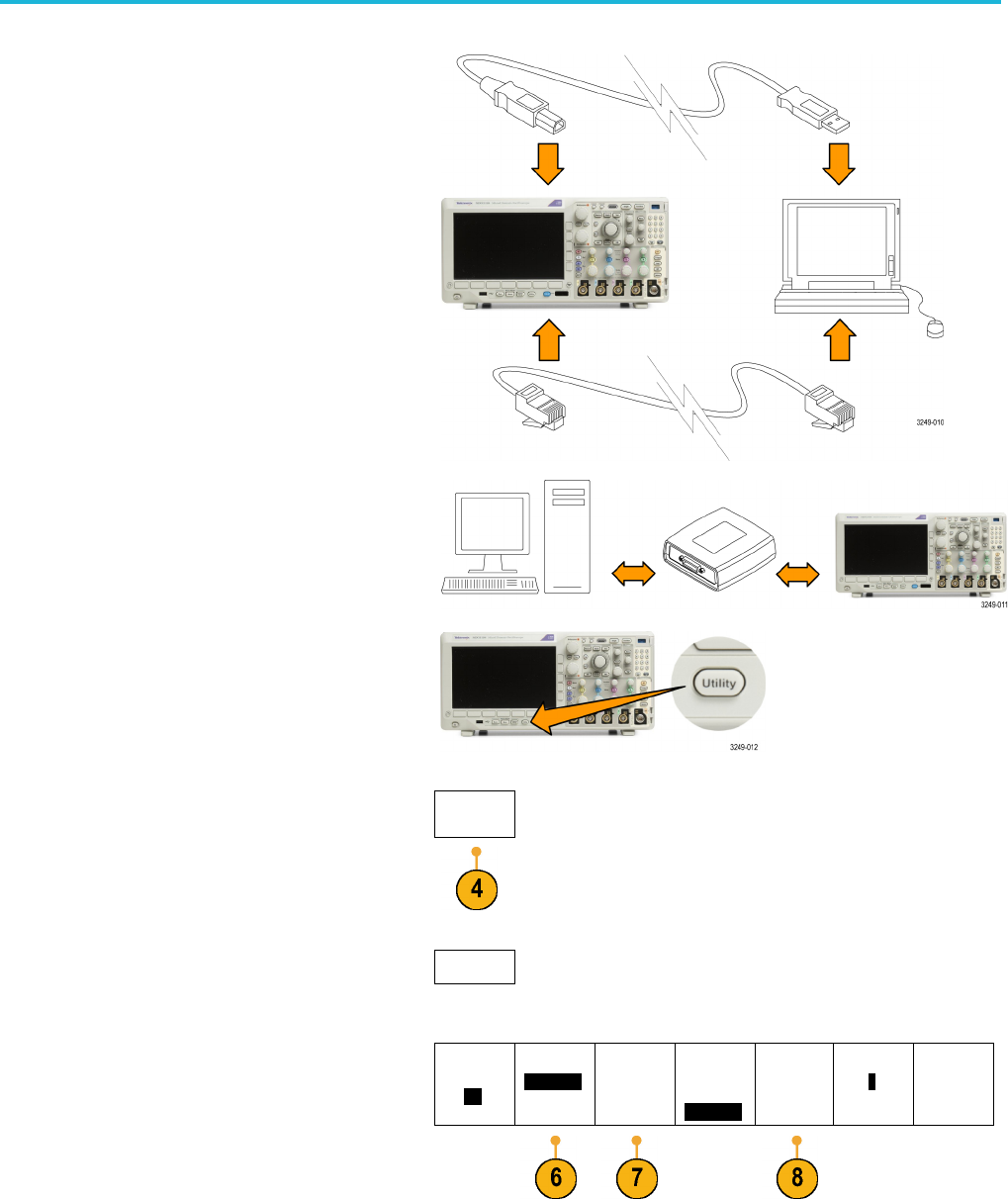

2. Connect the oscilloscope to your computer
with the appropriate USB or Ethernet cable.
To communicate between the oscilloscope
and a GPIB system, c onnect the oscilloscope
to the TEK-USB-488 GPIB-to-USB Adapter
with a USB cable. Then connect the adapter
to your GPIB system with a GPIB cable.
Cycle the power on the oscilloscope.
3. Push Utility.
4. Push Utility Page.
Utility
Page
5. Turn Multipurpose a and select I/O .
I/O
6. If you are using USB, the system sets itself
up automatically for you, if USB is enabled.
Uti
lity
Page
I/O
USB
Co
mputer
Ethernet &
LXI
Net
work
Configura-
tion
Au
tomatic
Socket
Ser
ver
GPIB
1
Check USB on the l ower menu to be sure
tha
t USB is enabled. If it is not enabled, push
USB. Then push Connect to Computer on
the side menu.
MDO3000 Series Oscilloscopes User Manual 27
