Get Acquainted w
ith the Instrument

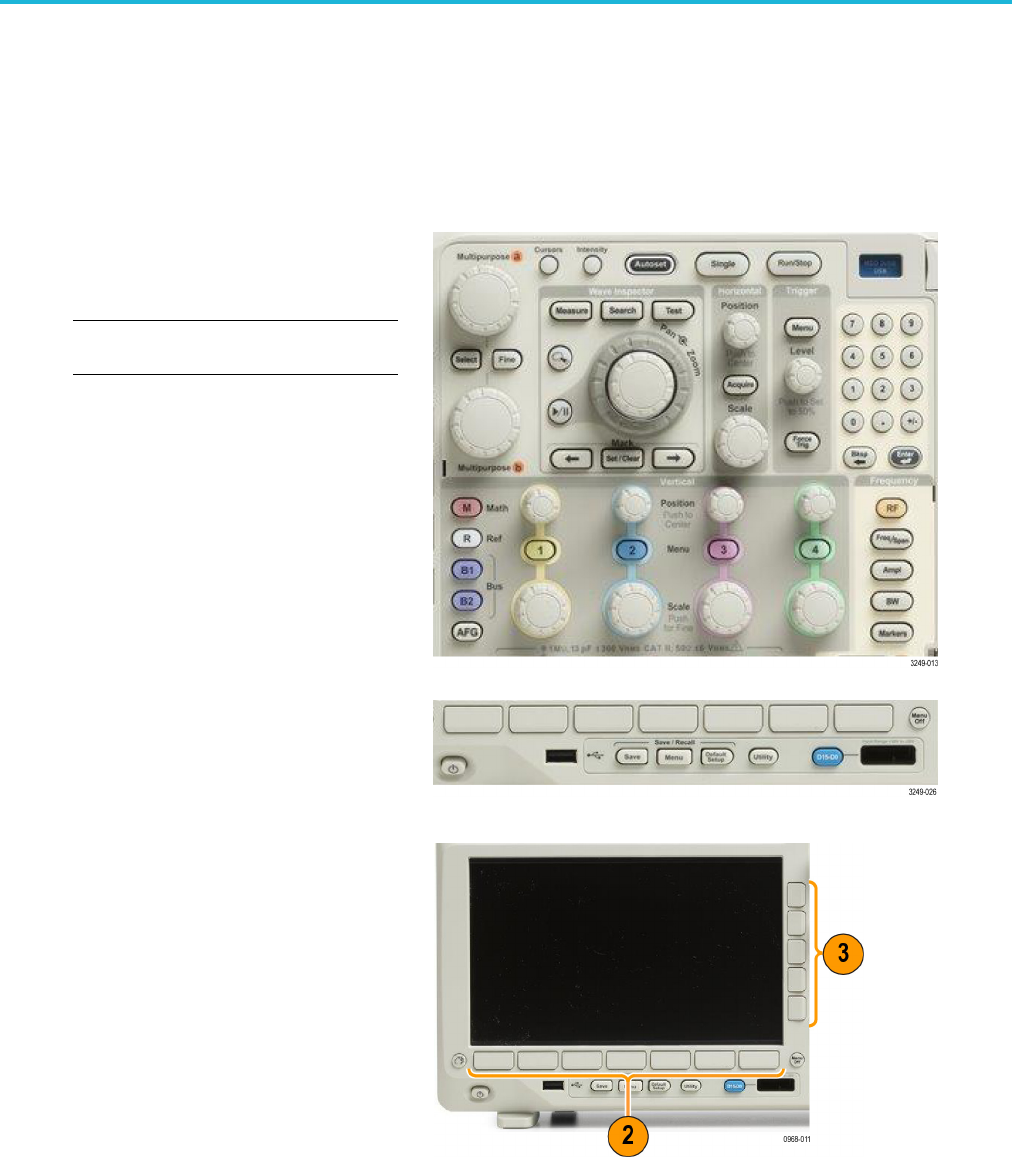

Front Panel Menus and Controls
The front panel has buttons and controls for the functions that you use most often. Use the menu buttons to access
more specialized functions.
Using the Menu System
To use the menu system:
1. Push a front panel menu button to
display the menu that you want to use.
NOTE. The B1 and B2 buttons support up
to two different serial or parallel buses.
2. Push a lower menu button. If a pop-out
menu ap
pears, turn Multipurpose a to
select the desired choice. If a pop-up
menu appears, push the button again to
selec
t the desired choice.
3. Push a side menu button.
If the
menu item contains more than one
choice, push the side button repeatedly
to cycle through the choices.
If a p
op-out menu appears, turn
Multipurpose a to select the desired
choice.
MDO3000 Series Oscilloscopes User Manual 37
